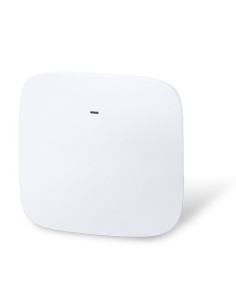

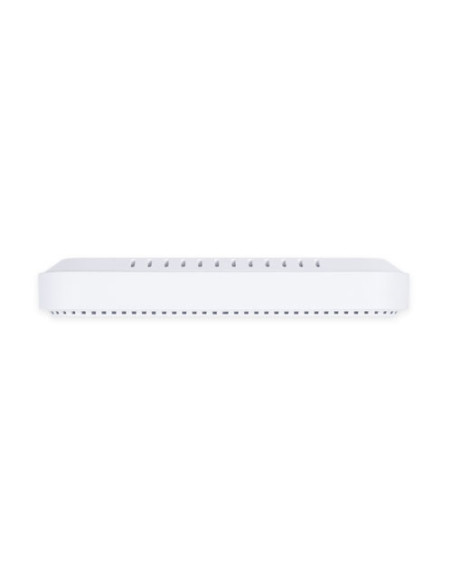

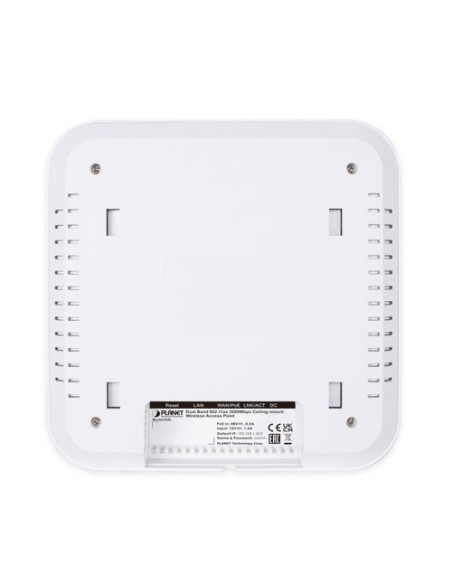

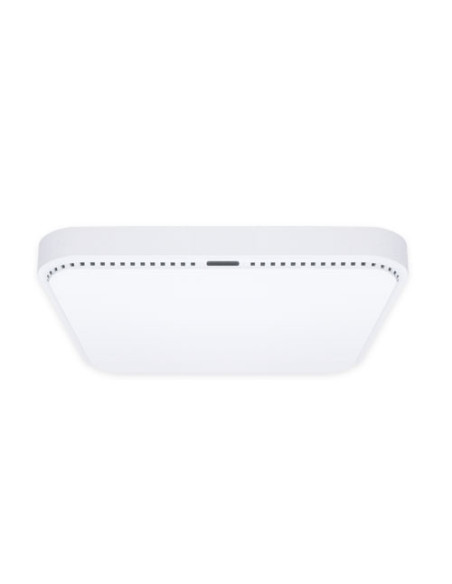

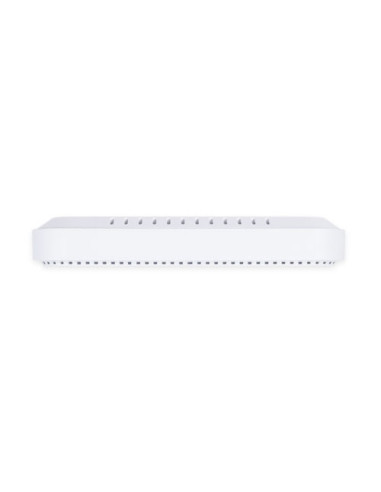

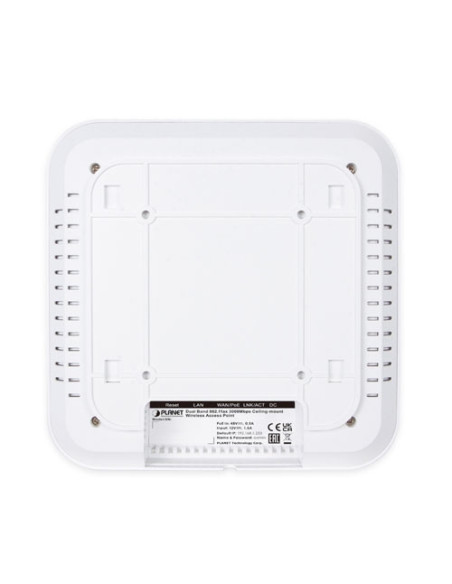

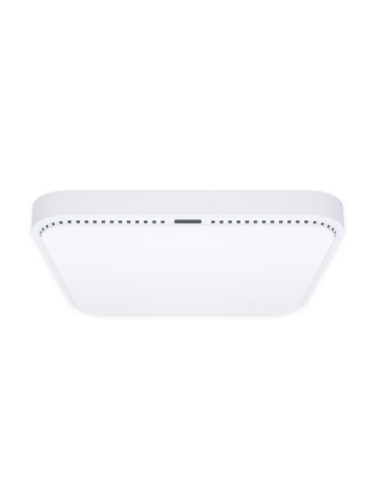

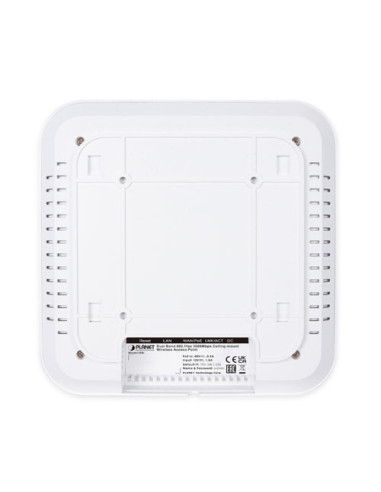

PLANET WDAP-C3000AX Dual Band 802.11ax 3000Mbps Ceiling-mount Wireless Access Point w/802.3at PoE+ and 2 10/100/1000T LAN Ports

WDAP-C3000AX
In Stock
$170.50
Tax included

WDAP-C3000AX

Ultra-high-speed Wi-Fi 6 Wireless LAN Solution

PLANET WDAP-C3000AX 3000Mbps Dual Band 802.11ax Wireless AP, supporting Wi-Fi MESH, MU-MIMO, OFDMA, Seamless Roaming, Beamforming and BSS Coloring technology, provides a maximum wireless speed of 2400Mbps in the 5GHz band and 600Mbps in the 2.4GHz band. The maximum number of client users is up to 256, ensuring more secure and robust connectivity with the adoption of Wi-Fi 6 technology.

OFDMA Beam forming WPA3 Cloud 802.11ax MESH



WDAP-C3000AX - PLANET Dual Band 802.11ax 1800Mbps Ceiling-mount Wireless Access Point w/802.3at PoE+ & 2 10/100/1000T LAN Ports



Benefits of MU-MIMO, OFDMA, Seamless Roaming, Beamforming and BSS Coloring

The WDAP-C3000AX can be installed in public areas such as hotspots, airports and conferences as OFDMA, a multi-user version of OFDM, enables the concurrent AP to communicate (uplink and downlink) with multiple clients by assigning subsets of subcarriers called resource units (RUs) to the 0 clients. With MU-MIMO and Seamless Roaming technologies, it provides a better Wi-Fi user experience, reducing the likelihood of users turning off Wi-Fi and putting more load on the cellular network. Beamforming is to improve your Wi-Fi signal when you are far away from your router. The BSS color is a numerical identifier of the BSS. 802.11ax radios are able to differentiate between BSSs using BSS color identifier when other radios transmit on the same channel.

These technologies also can solve Wi-Fi congestion issues in open work spaces and conference rooms. The WDAP-C3000AX can offer more powerful throughput coverage of up to 256 client users.



OFDMA (Orthogonal Frequency Division Multiple Access) Benefits

  • Helps transmit small and large packets together to reduce bandwidth burden and improve data transmission performance
  • Transmitting data at the same time can effectively reduce the transmission delay for longer frame and low-speed transmission.
  • Improves the overall traffic quality, and effectively uses bandwidth in an environment where multiple people use the Internet.
  • Increases the number of devices that can be connected to the AP.
  • Reduces the power consumption of the device by way of the use of low bandwidth



Beamforming

Beamforming is to improve your Wi-Fi signal when you are far away from your router. When you use beamforming, Wi-Fi beamforming narrows the focus of that router signal, sending it directly to your devices in a straight line, thus minimizing surrounding signal interference and increasing the strength of the signal that ultimately bring you the following benefits:

  • Extend your Wi-Fi coverage
  • Deliver a more stable Wi-Fi connection
  • Deliver better Wi-Fi throughput
  • Reduce router interference





BSS Coloring

The BSS color is a numerical identifier of the BSS. 802.11ax radios that are able to differentiate between BSSs using BSS color identifier when other radios transmit on the same channel. If the color is the same, this is considered to be an intra-BSS frame transmission. In other words, the transmitting radio belongs to the same BSS as the receiver. If the detected frame has a different BSS color from its own, then the STA considers that frame as an inter-BSS frame from an overlapping BSS.

WPA3 Next Generation Security for Your WLAN Solution

WPA3 is the next generation Wi-Fi security technology that provides the most advanced security protocol to the market. WPA3 makes your connection more secure by preventing hackers from easily cracking your password no matter how simplified the password is. WPA3 can also provide more reliable password-based authentication, so it can better protect the security of individual users.

* WDAP-C3000AX only supports WPA3-Personal.

Super Power Dual band WLAN Solution

PLANET WDAP-C3000AX, adopting the IEEE 802.11ax Wi-Fi 6 standard, provides a high-speed transmission. The maximum wireless speed in 2.4GHz band is up to 11AX of 574Mbps, and in the 5GHz band is up to 11AX of 2402Mbps. Both the 2.4GHz and 5GHz wireless connections can also be used simultaneously.



Advanced Security and Rigorous Authentication

The WDAP-C3000AX supports WPA/WPA2/WPA3 wireless encryptions, and also supports the WPA2 Enterprise, and WPA/WPA2 Enterprise, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established.



Multiple Operation Modes for Various Applications

The WDAP-C3000AX supports the simplified usage modes of AP, Gateway and Repeater, through which they provide more flexibility for users when wireless network is established. Compared with general wireless access points, the WDAP-C3000AX offers more powerful and flexible capability for wireless clients.



Optimized Efficiency in AP Management with Cloud and NMS system

Via the PLANET CloudViewerPro app, you can monitor and control Access Points in real time without a specified location and time limitation. The brand-new GUI configuration wizard helps the system administrator easily set up the WDAP-C3000AX step by step. Besides, the built-in Wi-Fi analyzer provides real-time channel utilization to prevent channel overlapping to assure greater performance. With the automatic transmission power mechanism, distance control and scheduling reboot setting, the WDAP-C3000AX is easy for the administrator to deploy and manage without on-site maintenance. Moreover, you can use PLANET NMS-500 or NMS-1000V AP control function to deliver wireless profiles to multiple APs simultaneously, thus making the central management simple.

Mesh Wi-Fi for More Hassle-free Network

The WDAP-C3000AX boasts support for 802.11s Mesh technology, an open standard wireless networking solution that takes Wi-Fi coverage and stability to the next level. It enables seamless collaboration between various router and Wi-Fi device brands, creating a unified and efficient network experience.

Mesh technology leverages multiple frequency bands, enabling fast roaming and intelligent network management, resulting in top-notch performance. Setting up a Mesh network is a breeze, thanks to its user-friendly installation process and automated configuration. This ensures that users can enjoy extended Wi-Fi coverage and a consistently reliable connection across their homes or workplaces.

In summary, Mesh technology is the go-to solution for those seeking to enhance their Wi-Fi coverage without the headache of complex network setups. It's a convenient and effective way to achieve a seamless and robust wireless network.

Hardware Specifications
Interfaces LAN

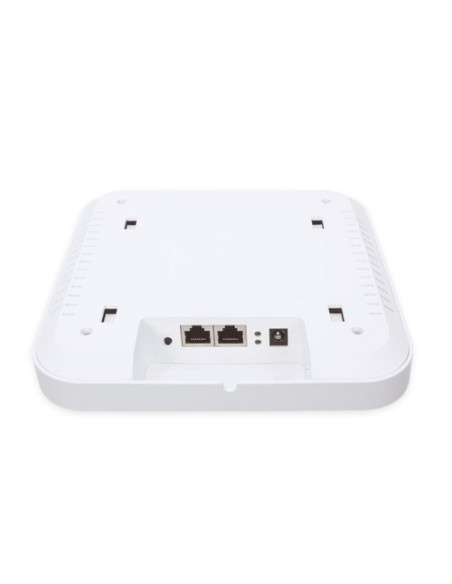

2 x 10/100/1000BASE-T RJ45 port
Auto-negotiation and auto MDI/MDI-X
Antennas Gain: 4 x Internal 4dBi antenna (2.4G x2, 5G x2)
Reset Button Reset button on the rear side (Press over 5 seconds to reset the device to factory default)
LED Indicators Power, SYS
Dimensions (W x D x H) 168 x 168 x 32 mm
Weight 380 ± 5g
Power Requirements 48V DC IN, 0.5A, IEEE 802.3at PoE+ (WAN/PoE were changed port)
12V DC IN, 1.5A from DC Jack (5.5 x 2.1mm)
Power Consumption < 15W
Mounting Ceiling Mount
Wireless Interface Specifications
Standard IEEE 802.11ax
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r
Media Access Control CSMA/CA
Data Modulation 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)
802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode 2.4GHz / 5GHz concurrent mode
Frequency Range 2.4GHz:
 FCC: 2.412~2.462GHz
 ETSI: 2.412~2.472GHz
5GHz:
 FCC: 5.180~5.240GHz, 5.745~5.825GHz
 ETSI: 5.180~5.700GHz
Operating Channels ETSI:
 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels)
 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 Channels)
FCC:
 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 Channels)
 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24Channels)
 5GHz channel list may vary in different countries according to their regulations.
Max. Transmit Power (dBm) FCC: up to 22 ± 1dBm
ETSI: < 19dBm (EIRP)
Network Mode Data Rate Receive Sensitivity (dBm)
2.4G Power
802.11b 1Mbps
11Mbps
22±2
22±2
802.11g 6Mbps
54Mbps
21±2
19±2
802.11n HT20 MCS0
MCS7
20±2
18±2
802.11n HT40 MCS0
MCS7
20±2
18±2
802.11ax HT20 MCS0
MCS11
20±2
16±2
802.11ax HT40 MCS0
MCS11
20±2
16±2
5G Power
802.11a 6Mbps
54Mbps
21±2
19±2
802.11n HT20 MCS0
MCS7
20±2
18±2
802.11n HT40 MCS0
MCS7
20±2
18±2
802.11ac HT20 MCS0
MCS7
20±2
17±2
802.11ac HT40 MCS0
MCS7
20±2
17±2
802.11ac HT80 MCS0
MCS9
19±2
17±2
802.11ax HT20 MCS0
MCS11
20±2
16±2
802.11ax HT40 MCS0
MCS11
20±2
16±2
802.11ax HT80 MCS0
MCS11
19±2
16±2
802.11ax HT160 MCS0
MCS11
18±2
14±2
Receive Sensitivity
Network Mode Data Rate Receive Sensitivity (dBm)
2.4GHz
802.11b 1Mbps
11Mbps
-96
-87
802.11g 6Mbps
54Mbps
-93
-75
802.11n HT20 MCS0
MCS7
-92
-73
802.11n HT40 MCS0
MCS7
-89
-70
802.11ax HT20 MCS0
MCS11
-92
-64
802.11ax HT40 MCS0
MCS11
-89
-61
5GHz
802.11a 6Mbps
54Mbps
-90
-75
802.11n HT20 MCS0
MCS7
-88
-73
802.11n HT40 MCS0
MCS7
-88
-63
802.11ac HT20 MCS0
MCS7
-88
-67
802.11ac HT40 MCS0
MCS7
-88
-64
802.11ac HT80 MCS0
MCS9
-88
-61
802.11ax HT20 MCS0
MCS11
-88
-62
802.11ax HT40 MCS0
MCS11
-88
-58
802.11ax HT80 MCS0
MCS11
-84
-55
802.11ax HT160 MCS0
MCS11
-82
-51
Software Features
LAN Static IP / Dynamic IP
WAN Static IP
Dynamic IP
PPPoE/PPTP/L2TP
Wireless Mode Access Point
Gateway
Repeater
WISP
MESH
Channel Width 20MHz, 40MHz, 80MHz, 160MHz
Encryption Security WPA3 Personal, WPA2/WPA3 Personal,WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 Enterprise
Wireless Security Enable/Disable SSID Broadcast
Wireless Max. 32 MAC address filtering
User Isolation
Max. SSIDs 8 (4 per radio)
Max. Clients 256 (200 is suggested, depending on usage)
Wireless QoS Supports Wi-Fi Multimedia (WMM)
Wireless Advanced Auto Channel Selection
5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%)
Client Limit Control, Coverage Threshold
Wi-Fi channel analysis chart
Seamless Roaming
Beamforming
BSS Coloring
Status Monitoring Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server
VLAN IEEE 802.1Q VLAN (VID: 1~4094)
SSID-to-VLAN mapping to up to 4 SSIDs
Self-healing Supports auto reboot settings per day/hour
Management Remote management through PLANET DDNS/ Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
Supports Captive Portal, RADIUS Server/Client
Central Management Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudViewer, PLANET CloudViewerPro
Environment & Certification
Temperature Operating: -20~ 55 degrees C
Storage: -40 ~ 70 degrees C
Humidity Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing)
Regulatory CE, RoHS
Remarks:[*]: The feature will be supported through firmware/system upgrade.

aa

Key Fea

Antenna Gain (dBi)
4
Device Type
Access Point
POE Ports
1
Wireless System
2.4GHz
5GHz
Wi-Fi 6
Ethernet Ports
2
Standards
802.3at
4260074977844
WDAP-C3000AX
