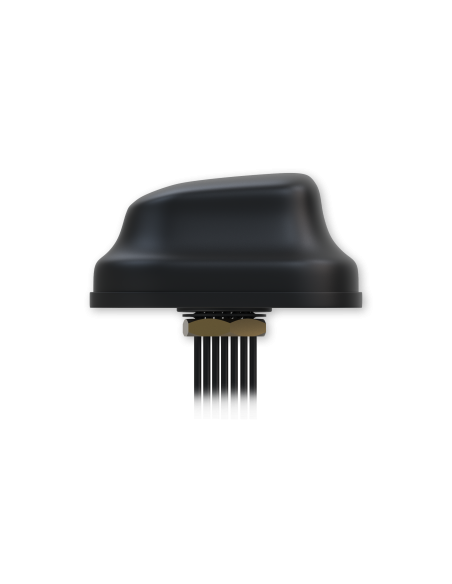

5G Combo MIMO Mobile/GNSS/WIFI Roof SMA Antenna
Related Products & Accessories
Frequency Range
617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
Polarization
Linear
Gain
4.0 dBi
V.S.W.R
≤3.0
Impedance
50 Ω
Connector type and count
4x SMA Male
Frequency range
1164 - 1300 / 1559 - 1610 MHz
Polarization
RHCP
Supply voltage
3 - 12 VDC
LNA Gain
40 ± 2 dB
V.S.W.R
≤2.0
Impedance
50 Ω
Current Consumption
≤60 mA
Connector type and count
SMA Male
Frequency range
2400 - 2483.5 / 4900 - 5925 MHz
Polarization
Linear
Gain
4.0 dBi
V.S.W.R
≤2.5
Impedance
50 Ω
Connector type and count
2x RP SMA Male
Mounting method
Screw
Radome ingress projection rating
IP67 (exclude cable outlet)
Radome material
UV-Resistant ABS/PC
Weight
960 ± 30 g
Housing dimensions
189 x 182 x 85 mm

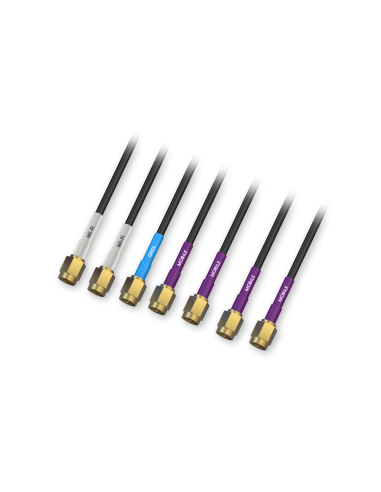

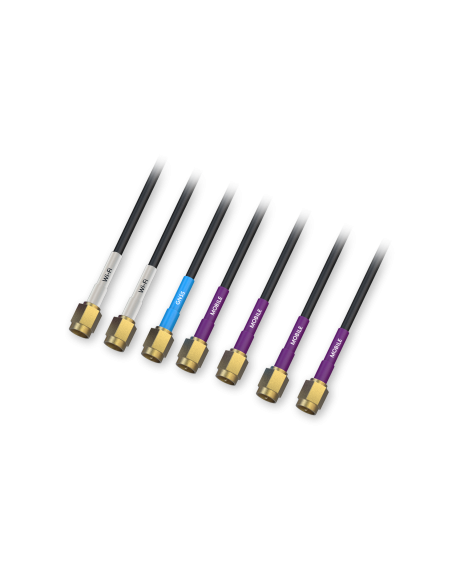

Cable
7 x LMR100, 3000 mm
Recomended mounting dimensions
Hole ø28 mm, panel thickness MAX 8 mm
Operating temperature
-40 °C - +85 °C
