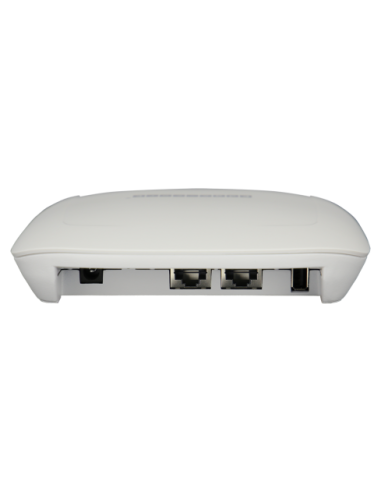

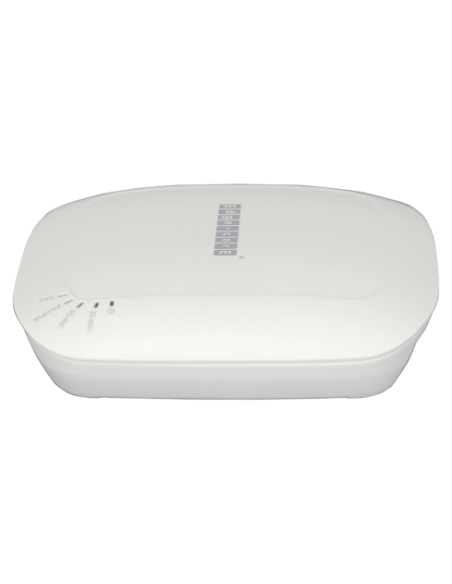

EDGECORE Concurrent Dual-Band 802.11ac Wave 2 Indoor Access Point

ECW5211-L - EDGECORE Concurrent Dual-Band 802.11ac Wave 2 Indoor Access Point

• Radio
  • 802.11 a/b/g/n/ac ; Wave 2
  • Concurrent Dual-band 2.4 / 5 GHz
  • Radio Chains: 2 x 2 : 2
  • RF Output Power*1: 2.4 GHz: Up to 21 dBm*2; 5 GHz: Up to 20 dBm*2
    (*1: RF output power aggregates across MIMO chains and doesn’t contain antenna gain; *2: Maximum power is limited by local regulatory requirements)
  • Frequency Band: 2.412 – 2.472 GHz, 5.180 – 5.825 GHz
  • Channelization: 20 MHz, 40 MHz, 80 MHz
  • Up to 16 ESSIDs per radio (32 total)

• QUALITY OF SERVICE
  • Wireless QoS (802.11e / WMM)
  • DSCP (802.1p)
  • Airtime Fairness
  • Band Steering
  • Multicast to Unicast Conversion
  • Optimal Client Filtering

• PHYSICAL DIMENSIONS
  • 14.7 cm x 14.7 cm x 3.5 cm (W x D x H)
  • Weight: 0.36 g (0.78 lbs)
  • Mounting: Wall/Ceiling mount (Mounting kit included)

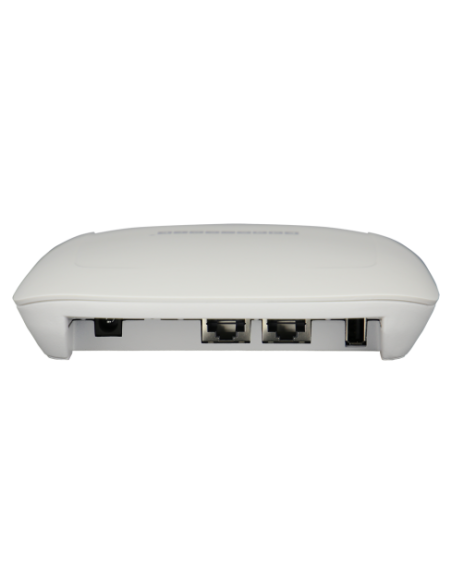

• Interfaces
  • Uplink: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 with 802.3af PoE
  • LAN: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45
  • USB: 1 x USB 2.0 Port

• Antenna
  • Type: 3 x Built-in PIFA (2 x 2.4 GHz, 5 GHz, 1 x Bluetooth Low Energy)
  • Gain: 3 dBi (2.4 GHz), 5 dBi (5 GHz), 3 dBi (BLE)

• Environmental Conditions
  • Operating Temperature: 0°C (32°F) to 50°C (122°F)
  • Operating Humidity: 5% to 95% non-condensing

• Performance
  • Up to 300 Mbps (2.4 GHz)
  • Up to 867 Mbps (5 GHz)
  • Up to 256 Concurrent Users (128 on 2.4 GHz, 128 on 5 GHz)

• MOBILITY / ROAMING
  • Layer 2 / Layer 3 Fast Roaming
  • Hotspot 2.0

• Security
  • Wireless Security: WEP, WPA / WPA2 Mixed, WPA2-Personal, WPA2-Enterprise (802.1X), TKIP and AES Encryption
  • VLAN Tagging (802.1Q)
  • Station Isolation
  • DHCP Snooping
  • Layer 2 Firewall

• MANAGEMENT
  • Deployment: Standalone, Tunneled management by Edgecore EWS Gateway-Controller, IPv4 & IPv6 compatible, LLDP
  • Configuration: Web User Interface (HTTP / HTTPS), SNMP v1, v2c, v3

• POWER
  • DC Input: 12V / 1.0A
  • PoE: 802.3af compliant (PoE injector optional)
  • Power Consumption: 11W max.

• LED Indicators
  • Power / 2.4G-WiFi / 5G-WiFi / Eth1 / Eth2
