RB924iR-2nD-BT5&BG770A&R11e-LR9G
ETA Before Xmas
$351.00
Tax included

RB924iR-2nD-BT5&BG770A&R11e-LR9G

An industrial-grade IoT gateway for smart asset tracking, remote monitoring, and efficient automation – now with enhanced LoRa® reception, concurrent GPS + LTE CAT-M, and a lower price. This is the 915 MHz version.

Key Features:

  • LoRa® 915MHz
  • RS485/Modbus
  • GNSS
  • CAT-M/NB technology
  • 2x 100 Mbps Ethernet ports
  • GPIO
  • 2.4 GHz wireless
  • PoE-in & PoE-out
  • Bluetooth

Quantity Unit price You Save
2 $333.45 $35.10
5 $310.64 $201.83
10 $303.62 $473.85
15 $300.11 $763.43
20 $296.60 $1,088.10

Related Products & Accessories



RB924iR-2nD-BT5&BG770A&R11e-LR9G MikroTik Industrial IoT Gateway with LoRa 915 MHz GNSS CAT-M/NB Bluetooth & Dual Ethernet



The KNOT LR9G is a compact, out-of-the-box gateway for LoRa®-based networks, designed to bring affordable, reliable connectivity to even the most remote or infrastructure-light environments. It supports LTE CAT-M1 and NB2, Bluetooth 5.2, 2.4 GHz Wi-Fi, GPS, and Ethernet with PoE, making it a flexible centrepiece for any IoT deployment.

CAT-M1 and NB2 mobile internet connectivity allows you to save tons of money and remotely monitor and manage equipment without needing high-cost data plans or full LTE coverage.

Whether you’re tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field – the KNOT LR9G ties everything together and keeps everything connected.

Product Specifications:

Specification Value
Product code RB924iR-2nD-BT5&BG770A&R11e-LR9G
CPU Single-core QCA9531 650 MHz
CPU architecture MIPSBE
Size of RAM 64 MB
RAM type DDR2
Storage 16 MB, Flash
Number of 100M Ethernet ports 2
MiniPCIe slots 1
USB slots 1 microUSB type AB
Wireless interface model QCA9531
Wireless 2.4 GHz 802.11b/g/n dual-chain
Antenna gain 1.5 dBi
Antenna beam width 360°
GNSS standard GPS
LoRa band 915 MHz
Bluetooth version 5.2
IoT modem BG770A
Cat NB2 B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66
Cat M1 B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66
Dimensions 122 × 87 × 26 mm
Operating system RouterOS v7, License level 4
Operating temperature -40°C to +70°C
Powering
Number of DC inputs 3 (DC jack, Micro USB, PoE-In)
DC jack input voltage 12–57 V
Micro USB input voltage 5-5 V
PoE-In input voltage 18–57 V
Power adapter nominal voltage 24 V
Power adapter nominal current 1.2 A
PoE-In 802.3af/at
PoE-Out PoE-out
Smart PoE Injector Yes
PoE-Out ports Ether2
Max out per port (< 30 V input) 650 mA
Max out per port (> 30 V input) 450 mA
Max power consumption (without attachments) 6 W
Max power consumption 23 W
Wireless Specifications (2.4 GHz)
1 MBit/s Tx: 22 dBm    |    Sensitivity: -96 dBm
11 MBit/s Tx: 22 dBm    |    Sensitivity: -89 dBm
6 MBit/s Tx: 20 dBm    |    Sensitivity: -93 dBm
54 MBit/s Tx: 18 dBm    |    Sensitivity: -74 dBm
MCS0 Tx: 20 dBm    |    Sensitivity: -93 dBm
MCS7 Tx: 16 dBm    |    Sensitivity: -71 dBm
Antenna Gain (dBi)
1.5
Device Features
Bluetooth
Power Input
DC
Ethernet Ports
2
Installation Type

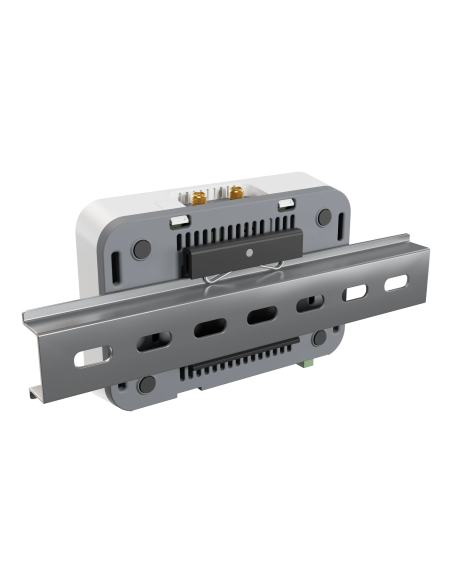

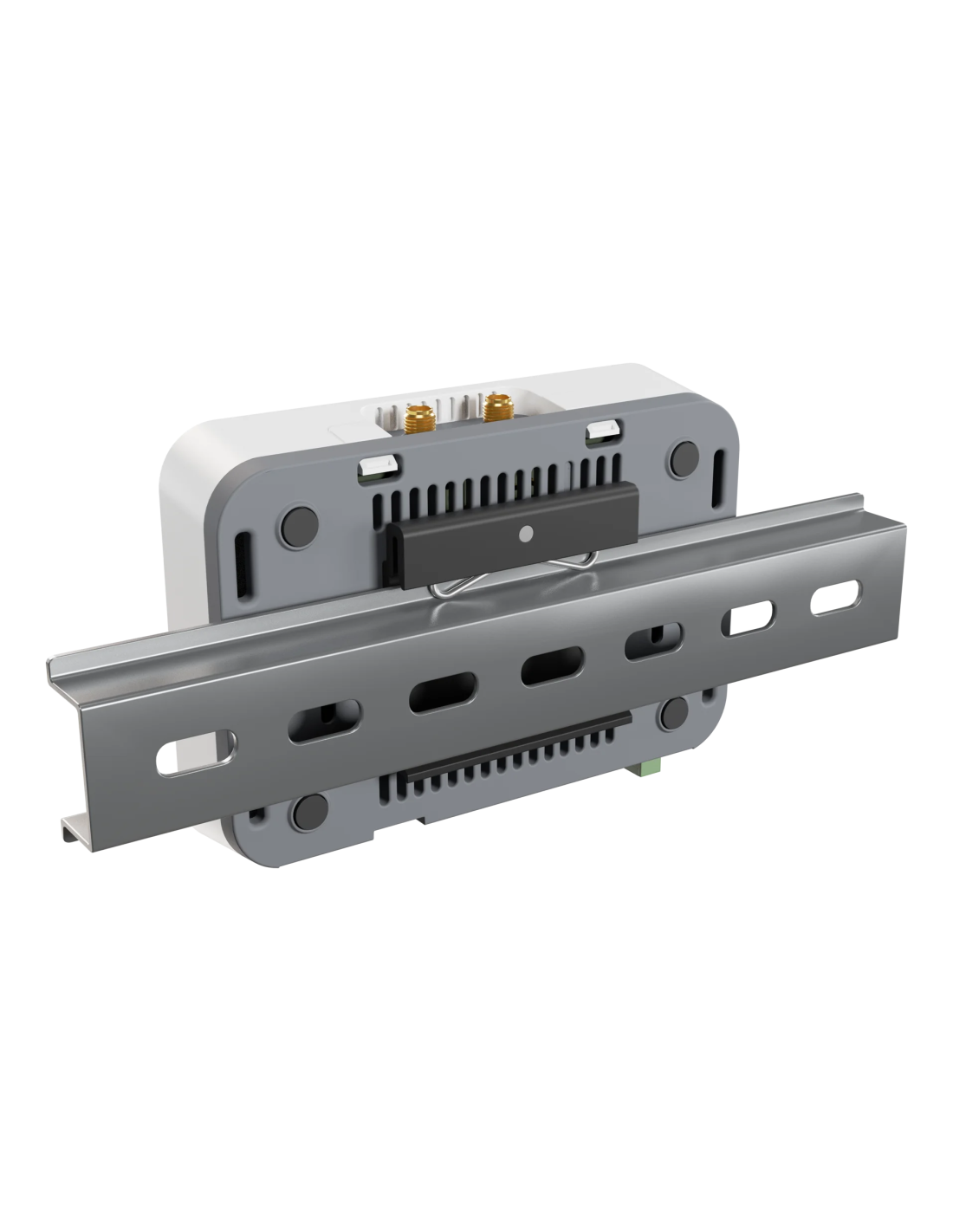

DIN-rail
Operating Temperature
-40°C to 70°C
RB924iR-2nD-BT5&BG770A&R11e-LR9G
