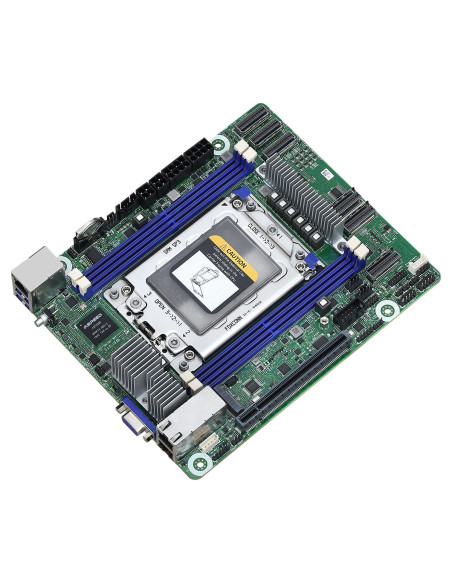

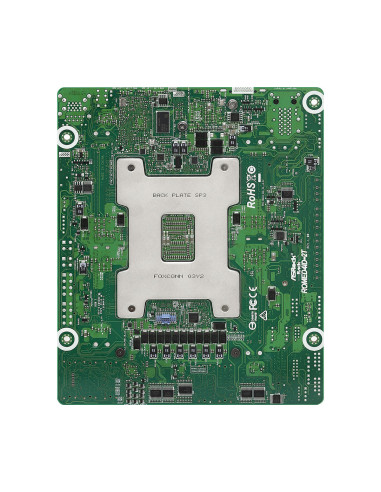

ASRock Rack ROMED4ID-2T motherboard, a reliable motherboard produced under ASRock Rack’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock Rack’s commitment to quality and endurance
|
750W ATX power supply GP-UD750GM |
|
AMD EPYC 7402P processor cpu 24-Core sp3 128mb L3 180w Socket 1p |
|
|
AMD EPYC 7F52 Processor cpu 16-Core SP3 256mb L3 240w Socket 1P/2P |
|
|
AMD EPYC 7302P Processor cpu 16-Core sp3 128mb L3 155w Socket 1p |
Related Products & Accessories
Product Features
| Physical Status | |
| Form Factor | Proprietary (Deep mini-ITX) |
| Dimensions | 6.7"x 8.2" |
| Processor System | |
| CPU | Supports AMD EPYC™ 7003* and 7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 Series Processors. |
| Socket | 1 Socket SP3 (LGA4094) |
| Chipset | System on chip |
| System Memory | |
| Capacity | 4 DDR4 288-pin DIMM slots (1DPC) |
| Type | DDR4 R-DIMM/ LR-DIMM/ NV-DIMM |
| DIMM Size Per DIMM | R-DIMM: 64GB, 32GB, 16GB, 8GB LR-DIMM: 256GB*, 128GB, 64GB * 256GB is to be validated |
| DIMM Frequency | R-DIMM: 3200/2933/2666/2400MHz LR-DIMM: 3200/2933/2666/2400MHz |
| Voltage | 1.2V |
| Expansion Slot | |
| PCIe 4.0 x 16 | SLOT 7: PCIe 4.0 x16 |
| M.2 | 1 M-key (PCIe4.0 x4/SATA); Form factor: 2280 |
| TPM | |
| TPM support | TPM2-SLI |
| Storage | |
| SATA Controller | AMD EPYC™ Processors: supports 16 SATA 6Gb/s from 2 Slimline supports 1 SATA 6Gb/s M.2 |
| Slimline for U.2 | 2 Slimline (PCIe 4.0 x8 or 8 SATA 6Gb/s) 4 Slimline (PCIe 4.0 x8) |
| Ethernet | |
| Additional GbE Controller | 1 Intel® X550-AT2: 2 RJ45 (10 GbE) |
| LAN Controller | 1 RJ45 Dedicated IPMI LAN port |
| Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |

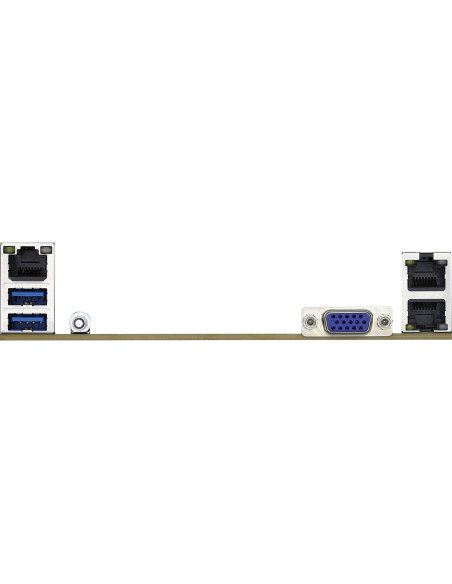

| Rear Panel I/O | |
| VGA Port | 1 DB15 |
| USB 3.2 Gen1 Port | 2 Type A |
| Lan Port | 2 RJ45 (10GbE) |
| Dedicate LAN | 1 RJ45 |
| UID Button/UID LED | 1 |
| Internal Connector | |
| COM Header | 1 |
| Auxiliary Panel Header | 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED |
| TPM Header | 1 (13-pin, LPC) |
| Thermal Sensor Header | 1 |
| IPMB Header | 1 |
| PMBus CONN | 1 |
| Fan Header | 3 (4-pin) |
| HDD PWR | 1 (4-pin, 12V and 5V) for using 12V DC-in PSU |
| USB 2.0 Header | 1 (support 2 USB2.0) |
| NMI Header | 1 |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | 1 |
| BMC_SMB Header | 1 |
| Power Connector | 1 (4-pin, ATX PSU signal and 5Vsb), 2 (8-pin, ATX 12V) support 12V DC-in |
| Clear CMOS | 1 (contact pads) |
| Onboard LED | |
| Standby PWR LED 5vsb | 1 |
| Fan Fail LED | 3 |
| System BIOS | |
| BIOS Type | 256Mb SPI Flash ROM |
| Hardware Monitor | |
| Temperature | CPU, TRMB_IN, TRMB_OUT1 temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 1.8VSB,3VSB,5VSB,1.8V,3V,5V,12V,BAT,VCPU,VSOC,VCCM ABCD,VCCM EFGH |
| Support OS | |
| OS | Microsoft® Windows: - Server 2016 (64bit) - Server 2019 (64bit) Linux: - RedHat Enterprise Linux Server 8.2 (64bit) / 7.9 (64bit) - CentOs 8.2 ( 64 bit) / 7.9 ( 64 bit) - SUSE SLES 15.2(64 bit) / 12.5(64bit) - UBuntu 20.04.1 (64 bit) /18.04.5 (64 bit) / 16.04.7 (64 bit) Hypervisor: - VMWare® ESXi 6.7 u3 / 7.0 u1 - vSphere 6.7 u3 / 7.0 u1 - CITRIX Hypervisor 8.1.0 |
| Environment | |
| Temperature | - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
