ASRock Rack AMD X570 mITX Server Motherboard 2x 10G LAN
ASRock Rack AMD X570 mITX Server Motherboard 2x 10G LAN

ASRock Rack AMD X570 mITX Server Motherboard 2x 10G LAN

X570D4I-2T
Out Of Stock
$988.90
Tax included

X570D4I-2T

AsRockRack X570D4I-2T key features:

  • Supports AMD Ryzen 2nd & 3rd Generation Series Processors (Max 105W)
  • Supports 4x DDR4 ECC and non-ECC SO DIMM, max. 64 GB
  • Supports up 8 x SATA3 by OCulink and 1x M.2 ports
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports 1x PCIe Gen4x16 link (Matisse)
  • Supports 2x 10GLAN Intel X550-AT2

Related Products & Accessories



ASRock Rack AMD X570 mITX Server Motherboard 2x 10G LAN

Manual for the x570d4i-2t can be found manual for x570d4i-2t.

International buyers, please email us for shipping quote

 MB Physical Status
Form Factor - mini-ITX
Dimensions - 6.7'' x 6.7'' (17.02 cm x17.02 cm)
 Processor System
CPU - AMD Ryzen™ 2nd& 3rd Generation Series Processors(Max 105W)
Socket - AM4 PGA 1331
Chipset - AMD Premium X570
 System Memory
Capacity - 4 x DDR4 SO DIMM slots
Type - Dual Channel DDR4 memory technology, Support DDR4 ECC & non-ECC SO DIMM
"-Supports DDR4 ECC/UDIMM,up to 2933MHz
One DIMM:
1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s
Two DIMMs:
(2) 1R DIMM @2400 MT/s; (2) 2R/2DR DIMM@2400MT/s; Max. capactiry of system memory:64 GB "
Voltage - 1.2V
 Expansion Slot
PCIe 4.0 x 16 -PCIE7: Gen4x16 link (Matisse)*

*When use Picasso/Raven CPU, only PCIe3.0 x8, and use Pinnacle CPU, PCIe3.0 x16
 Storage
SATA Controller - AMD X570:8 x SATA3 by OCulink
M.2 slot -1 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s)*

*When use Pinnnacle/Picasso/Raven CPU, only PCIe3.0 x4
 Ethernet
Interface - 10000/1000 /100 /10 Mbps
LAN Controller - 2 x RJ45 10GLAN by Intel® X550-AT2
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
 Management
BMC Controller - ASPEED AST2500
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
 Graphics
Controller - ASPEED AST2500
VRAM - DDR4 16MB
 Rear Panel I/O
VGA Port - 1 x D-Sub
USB 3.1 Gen2 Port - 2(Gen1 or Gen2 depends on redriver)
Lan Port - RJ45:2+1(IPMI)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID Button/UID LED - 1
 Internal Connector
COM Header - 1
SATA DOM - 0
M.2 - 1(M-key,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s)

*When use Pinnnacle/Picasso/Raven CPU, only PCIe3.0 x4
OCuLink -2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each)
*When use Pinnnacle/Picasso/Raven CPU, only PCIe3.0 x4
Auxiliary Panel Header - 1 (include Caseopen,sys_fault_LED, 2FLANLED) )
TPM Header - 1(13pin)
IPMB Header - 1
Buzzer - N/A
Fan Header - 3(4-pin Fan header)
USB 3.1 (Gen1) Header - 1 (support 2 USB 3.0)
USB 2.0 Header - N/A
Front Panel - 1 (RST, PWRBTN, HDDLED, PWRLED)
Speaker Header - 1(4pin)
SMBUS from BMC - 1
Power Connector - 8pin(DC-IN)+4pin(ATX)+4pin(HDD PWR)
ME/SPS Recovery - N/A
Clear CMOS - 1
PSU SMB Header - 1
 Onboard LED
80 Debug Port LED - N/A
Fan Fail LED - 3
 System BIOS
BIOS Type - 32MB AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash
 Hardware Monitor
Temperature - CPU/DDR temperature sensing
- MB/Card side temperature sensing
Fan - Fan Tachometer
- Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control
Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Form Factor
mini-ITX
Ethernet Ports
2
4710483931352
X570D4I-2T

Related Products & Accessories

OCuLink to 4 SATA Cable
In Stock
Cables & Adapters

OCuLink to 4 SATA Cable

ASRock Rack
CBL-SAST-0933
$42.00
CBL-SAST-0933 Copper Cable Assembly OCuLink SFF-8611 (x4) to 4 SATA OCuLink Storage Expansion

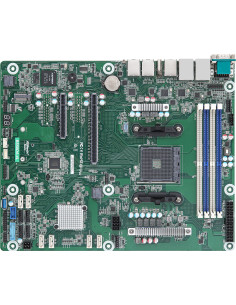

ASRock Rack B550D4-4L ATX Motherboard
