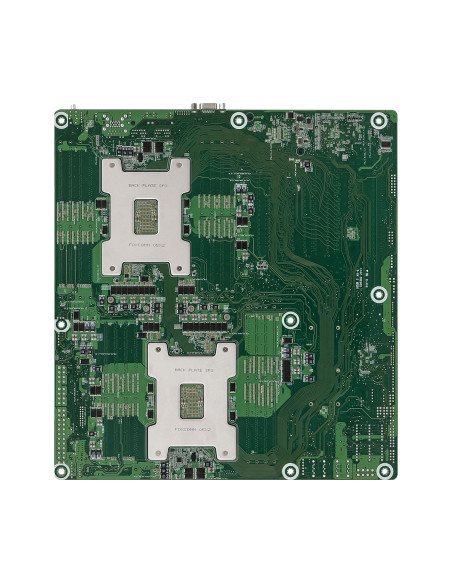

ASRock Rack ROME2D16-2T motherboard, a reliable motherboard produced under ASRock Rack’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock Rack’s commitment to quality and endurance.
Related Products & Accessories
Product Features
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12" x 13" (305mm x 330mm) |
| Processor System | |
| CPU | Support Dual AMD EPYC™ 7003* and 7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 Series Processors. |
| Socket | 1+1 SP3 (LGA4094) |
| Power Design | 280 W |
| Chipset | System on Chip |
| System Memory | |
| Capacity | 8+8 DIMM (1DPC) |
| Type | DDR4 288-pin RDIMM, LRDIMM, NVDIMM |
| DIMM Size Per DIMM | RDIMM: up to 64GB, LRDIMM: up to 256GB, NVDIMM: up to 32GB |
| DIMM Frequency | RDIMM/ LRDIMM: up to 3200 MHz NVDIMM: up to 2666 MHz |
| Voltage | 1.2V |
| Expansion Slot | |
| PCIe 4.0 x 16 | Slot 6: PCIe x16 (PCIe 4.0 x16) [CPU1] Slot 5: PCIe x16 (PCIe 4.0 x16) [CPU0] Slot 4: PCIe x16 (PCIe 4.0 x16) [CPU1] Slot 3: PCIe x16 (PCIe 4.0 x16) [CPU0] Slot 1: PCIe x16 (PCIe 4.0 x16) [CPU0] |
| PCIe 4.0 x 8 | Slot 2: PCIe x8 (PCIe 4.0 x8) [CPU1] |
| M.2 | 1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [CPU0] 1 M-key (PCIe4.0 x4), supports 22110/2280/2242 form factor [CPU0] |
| Storage | |
| SATA Controller | AMD EPYC™ 7003 and 7002: 8 from SlimSAS connector*, 4 from Ocuink connector, 1 SATA M.2 module [CPU0] 4 SATA 7-pin, 8 from SlimSAS connector, 4 from Ocuink connector [CPU1] |
| Slimline for U.2 | 2 SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s) [CPU0, CPU1]* *SlimSAS from CPU0 support PCIe only while installing 2 processors |
| OCuLink for U.2 | 2 Oculink (PCIe4.0 x4 or 4 SATA 6Gb/s) [CPU0,CPU1] |
| Ethernet | |
| Additional GbE Controller | 1 IntelX550-AT2: 2 RJ45 (10 GbE) |
| Management | |
| BMC Controller | ASPEED AST2500: IPMI2.0 with iKVM and vMedia support |
| Graphics | |
| Controller | ASPEED AST2500: 1 DB15 |

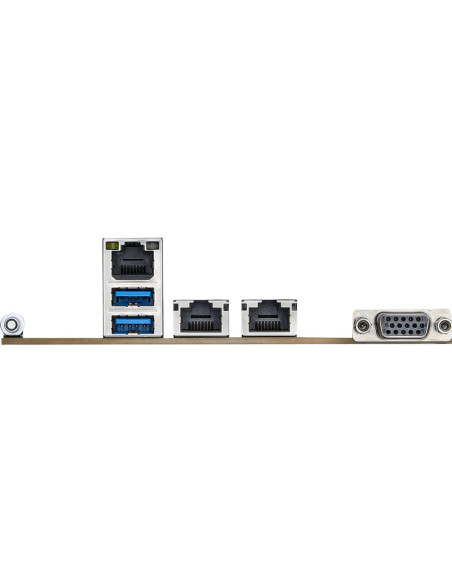

| Rear Panel I/O | |
| VGA Port | 1 DB15(VGA) |
| USB 3.2 Gen1 Port | 2 Type A |
| Lan Port | 2 RJ45 (10GbE) |
| Dedicate LAN | 1 dedicated IPMI |
| UID Button/UID LED | 1 |
| Internal Connector | |
| COM Header | 1 |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM Header | 1 (17-pin, LPC), 1 (13-pin, SPI) |
| IPMB Header | 1 |
| VGA Header | 1 |
| PMBus CONN | 1 |
| Fan Header | 8 (6-pin) |
| USB 3.2 (Gen1) Header | 2 via 19-pin header |
| NMI Header | 1 |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| BMC_SMB Header | 2 |
| SGPIO Header | 4 |
| CPU HSBP | 1 |
| Power Connector | 1 (24-pin, ATX main power), 3 (8-pin, ATX 12V) |
| Clear CMOS | contact pads |
| Onboard LED | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 8 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, X550 Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB |
| Support OS | |
| OS | Microsoft® Windows: - Server 2016 (64bit) - Server 2019 (64bit) Linux: - RedHat Enterprise Linux Server 8.2 (64bit) / 7.9 (64bit) - CentOs 8.2 ( 64 bit) / 7.9 ( 64 bit) - SUSE SLES 15.2(64 bit) / 12.5(64bit) - UBuntu 20.04.1 (64 bit) /18.04.5 (64 bit) / 16.04.7 (64 bit) Hypervisor: - VMWare® ESXi 6.7 u3 / 7.0 u1 - vSphere 6.7 u3 / 7.0 u1 - CITRIX Hypervisor 8.1.0 *Please refer to our website for the latest OS support list. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°CNon operation temperature: -40°C ~ 70°C |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
