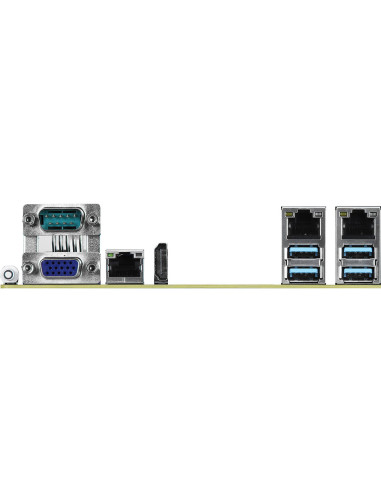

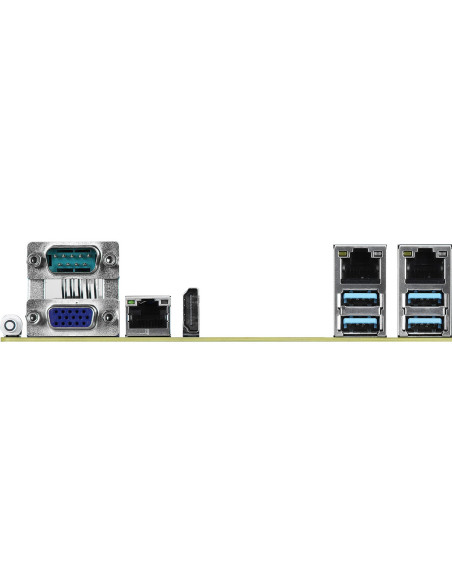

ASRock Rack W480D4U motherboard, a reliable motherboard produced under ASRock Rack’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock Rack’s commitment to quality and endurance.
Related Products & Accessories
Product Features
| Physical Status | |
| Form Factor | micro-ATX |
| Dimensions | 9.6"x 9.6" (244 mmx 244mm) |
| Processor System | |
| CPU | Supports Intel® Xeon® W-1200, Intel® 10th Gen Intel® Core™ Processors |
| Socket | LGA 1200 |
| Chipset | Intel® W480 |
| System Memory | |
| Capacity | 4 x 288-pin DDR4 DIMM slots |
| Type | Dual Channel DDR4 memory technology Supports DDR4 ECC*/non-ECC UDIMM *ECC Memory (ECC mode) support varies by CPU. |
| DIMM Size Per DIMM | 32GB, 16GB, 8GB, 4GB |
| DIMM Frequency | 2933*/2666/2400 MHz *2933 MHz support varies by CPU. |
| Expansion Slot | |
| PCIe x 16 | SLOT6: Latch PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU] |
| PCIe x 8 | SLOT4: PCIe3.0 x8 [CPU] |
| PCIe x 1 | SLOT7: PCIe3.0 x1 [PCH] |
| M.2 | 2 (M2_1: 22110/2280/2260, Supports PCIe 3.0(x4); M2_2:2280/2260, Supports PCIe 3.0(x4)) |
| Storage | |
| SATA Controller | 8 x SATA 6Gb/s (SATA0-7, SATA_0 supports SATA DOM) |
| Ethernet | |
| Additional GbE Controller | 2 x RJ45 GLAN by Intel® i210 |
| Management | 1 x RJ45 Dedicated IPMI LAN port via RTL8211E |
| Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| Rear Panel I/O | |
| HDMI | 1 |
| VGA Port | 1 D-Sub |
| USB 3.2 Gen1 Port | 2 Type-A (5Gbps) |
| USB 3.2 Gen2 Port | 2 Type-A (10Gbps) |
| Lan Port | 2 RJ45 (1GbE) LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Dedicate LAN | 1 |
| Serial Port | 1 |
| UID Button/UID LED | 1 |
| Internal Connector | |
| SATA DOM | 1 |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM Header | 1 (17-pin, LPC)*, 1 (13-pin, SPI) *support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support. |
| Thermal Sensor Header | 1 |
| IPMB Header | 1 |
| VGA Header | 1 |
| PMBus CONN | 1 |
| Buzzer | 1 |
| Fan Header | 7 (4-pin) |
| USB 3.2 (Gen1) Header | 1 (supports 2 USB 3.2 Gen1 ports) |
| USB 2.0 Header | 1 (supports 2 USB 2.0 ports) |
| Thunderbolt AIC Connector | 1 (BTO) |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | 1 |
| BMC_SMB Header | 1 |
| SGPIO Header | 1 |
| Power Connector | 24-pin (ATX), 8-pin (12V), 4pin (12V) |
| ME/SPS Recovery | 1 |
| Clear CMOS | 1 (contact pads) |
| Onboard LED | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| System BIOS | |
| BIOS Type | 256 Mb AMI UEFI Legal BIOS |
| Hardware Monitor | |
| Temperature | CPU Temperature Sensing MB/Card side/TR1 Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | +12V, +5V, +3.3V, CPU Vcore, DRAM, V1.0M,+BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft® Windows: -Windows® 10 (64 bit) Linux: RedHat Enterprise Linux Server 7.7 (64 bit) / 8.1 (64 bit) CentOs 7.7 (64 bit) / 8.1 (64 bit) SUSE Enterprise Linux Server 12 SP5 (64 bit) / 15 SP1 (64 bit) Ubuntu 19.04 (64 bit) / 20.04 (64 bit) Hypervisor: VMWare® ESXi 7.0.0/ vSphere 7.0.0 * W480D4U Supports UEFI BOOT only. * The Intel® RAID mode is not supported on the Linux system. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
