AHMC7292S
Last items in stock
$132.06
Tax included

AHMC7292S

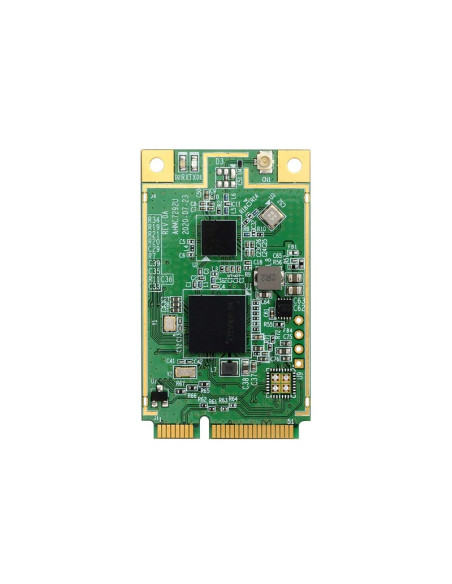

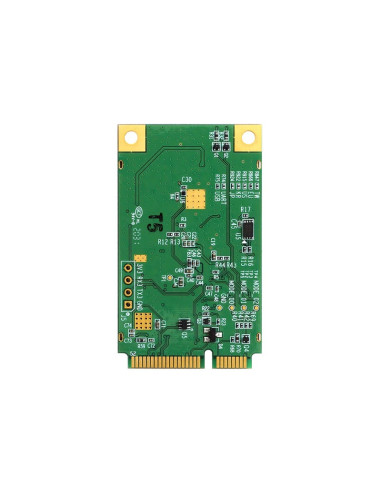

AHMC7292S is world's first WiFi HaLow™ mini PCIe module

The AHMC7292S module series allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands. WiFi HaLow™ enables connectivity for many applications, including sensors and wearables.

With support for standalone and host based modes, up to 15 Mbps data throughput and complete SDK, getting started with this new WiFi standard will be straightforward.

Related Products & Accessories



AHMC7292S - Alfa IEEE 802.11ah sub 1 GHz module with mini PCIe form factor

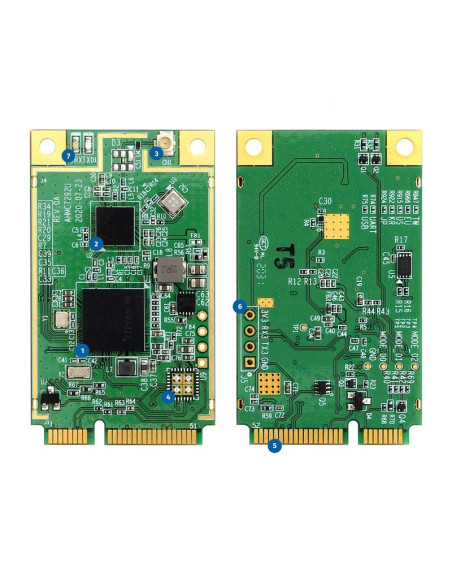

Product Features:

  • (1) Newracom™ NRC7292 WiFi HaLow™ SOC (IEEE 802.11ah draft 8.0 compliant) 1
  • (2) Qorvo™ RFFM6901 front-end
  • (3) IPEX/U.FL antenna connector
  • (4) USB to UART bridge (AHMC7292SU)
  • (5) Full-size mini PCIe form factor
  • (6) Connector for UART3
  • (7) 2× LED

Parameter Value
Chipset Newracom™ NRC7292
Frequency 847 MHz (TW)
866 MHz (EU)
915 MHz (US)
922 MHz (KR)
924 MHz (JP)
Modulation OFDM with BPSK, QPSK, 16QAM, 64QAM
Data rate 150 Kbps ~ 15 Mbps
Channel bandwidth 1/2/4 MHz
Antenna connector 1× IPEX/U.FL
Interfaces SPI
UART
I C
USB (AHMC7292SU)
LED 1× TX
1× RX
Form factor full-size mini PCIe
Dimensions 30 × 51 × 4 mm
Software https://github.com/newracom/
4718050308415
AHMC7292S
