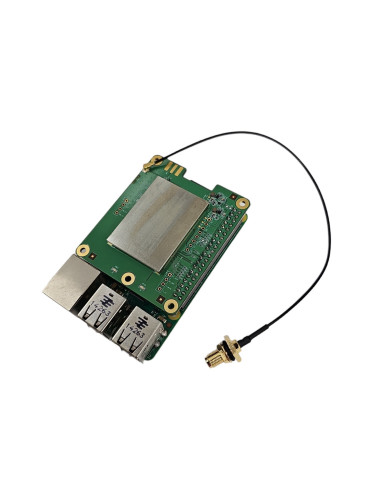

Alfa AHPI6108D WiFi HaLow Raspberry Pi HAT module

AHPI6108D
*** Out of stock ATM, Available On Backorder ***
$143.06
Tax included

AHPI6108D

AHPI6108D is the WiFi HaLow™ Raspberry Pi™ HAT module

The AHPI6108D module series allows building long-range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands, utilizing the popular and open platform – Raspberry Pi™ enables connectivity for many applications, including sensors, weather stations, industrial monitoring systems, patient monitoring, agriculture monitoring system, security cameras.
The AHPI6108D data throughput up to 32.5 Mbps with bandwidth of 1/2/4/8 MHz

Related Products & Accessories



AHPI6108D - Alfa WiFi HaLow Raspberry Pi HAT module

Key features

  1. Morse Micro™ MM6108 HaLow™ chipset
  2. RP-SMA female connector (IPEX/U.FL in AHPI6108DU model)
  3. Reset button
  4. GPIO1 LED (high active)
  5. Power LED
  6. 4-pin I²C header (2.54 mm pitch)
  7. Raspberry Pi™ HAT form factor with 40-pin GPIO connector

Specifications

Chipset

Morse Micro™ MM6108

Frequency









915 MHz (US)

866 MHz (EU)

924 MHz (JP)

922 MHz (KR)

920 MHz (TW)

Modulation

OFDM with BPSK, QPSK, 16QAM, 64QAM

Date rate

Up to 32.5 Mbps

Channel bandwidth

1/2/4/8 MHz

Antenna connector



RP-SMA (AHPI6018D)

IPEXUFL (AHPI6108DU)

Host interface

SDIO

LED

Power, GPIO defined

Form factor

Raspberry Pi™ HAT

Dimensions

65 x 56 x 10.3 mm (2.56 x 2.2 x 0.41 inches)

Operating temperature

-20° C to 60° C (-4° F to 140° F)

Module pinout

AHPI6108D
