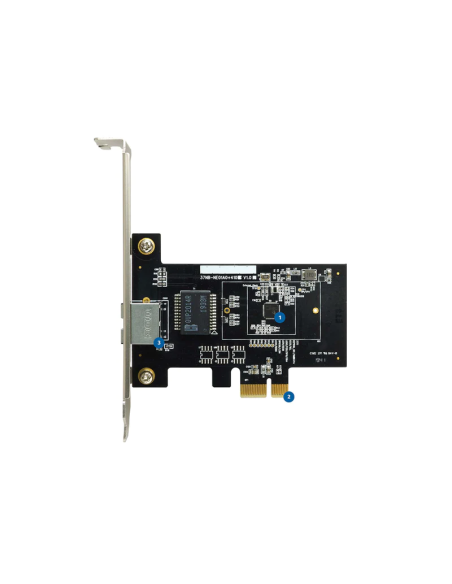

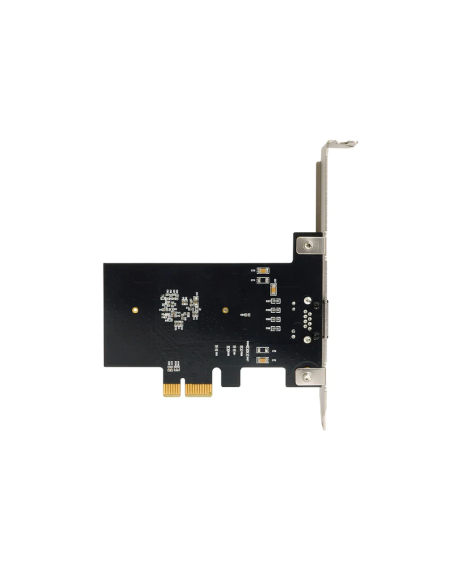

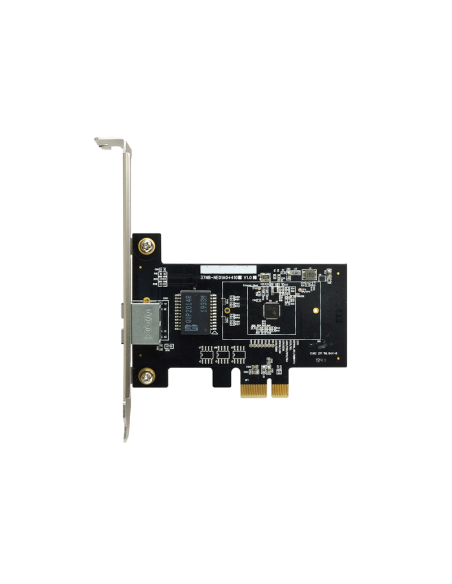

APCIE-2.5GR Alfa 2.5 GbE PCIe network adapter card with Realtek™ RTL8125BG chipset

APCIE-2.5GR - Alfa 2.5 GbE PCIe Network Adapter Card

APCIE-2.5GR is a 2.5G PCI Express network card with RTL8125BG

The multi-gigabit APCIE-2.5GR network adapter supports auto-negotiation feature which allows optimal selection of the best possible speed (2.5/1 GbE or 10/100 MbE) over Cat5e, Cat6 or better cabling.

Specifications

Chipset

• Realtek™ RTL8125BG

IEEE 802.3 standards

• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3bz (NBASE-T)
• IEEE 802.3u
• IEEE 802.3x (flow control)

Features

• Advanced Configuration and Power Interface (ACPI)
• IPv4, IPv6/TCP and IPv6/UDP checksum offload
• IEEE 802.1QAV Audio Video Bridging (AVB)
• Wake-on-LAN (WoL) and RealWoW
• Energy Efficient Ethernet (EEE)
• MSI and MSI-X PCIe interrupts
• Receive-Side Scaling (RSS)
• Large Send Offload (LSO)
• auto-negotiation
• 16K jumbo frame
• 1588v2

Interface

• PCI Express 2.1 ×1
• 1× RJ45

LED

• 1× 1 GbE and 10/100 MbE link/activity (amber)
• 1× 2.5 GbE link/activity (green)

Operating systems

• Microsoft Windows 7, 8, 8.1 and 10
• Linux

Form factor

• PCI Express card

Operating humidity

• 10 % ~ 90 % RH, non-condensing

Operating temperature

• 0 ° ~ 45 ° C

Dimensions

• TBA
