Alfa AHM26108D WiFi HaLow™ industrial M.2 module (915MHz, Morse Micro MM6108, Long-Range, Low-Power)

AHM26108D
Last items in stock
$148.50
Tax included

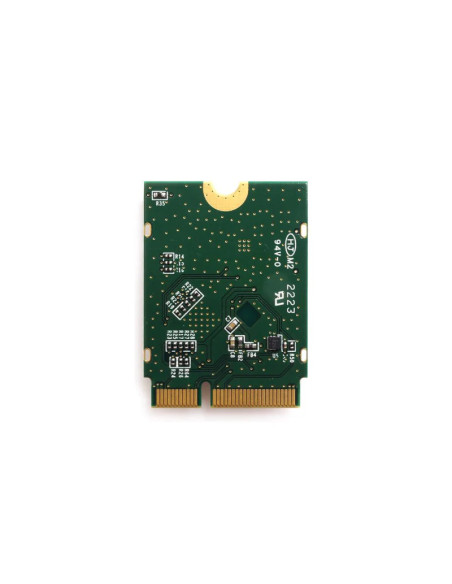

AHM26108D, WiFi HaLow™ industrial M.2 module

The AHM26108D allows building longrange, ultra-low power WiFi networks in sub 1 GHz license-exempt bands, utilizing compact M.2 2230 form factor.
The AHM26108D data rate up to 32.5 Mbps which better than LoRa 38.4 kbps with the high-speed data rate, it enables connectivity for many applications, including sensors, weather stations, industrial monitoring system, patient monitoring, agriculture monitoring system, security cameras.

Key Features:

  •  Morse Micro MM6108 HaLow chipset
  • IPEX4 (MHF4) antenna connector
  • LED
  • M.2/NGFF E-key


AHM26108D, WiFi HaLow™ industrial M.2 module

Specifications

Chipset

Morse Micro MM6108

Frequency









915 MHz (US)

866 MHz (EU)

924 MHz (JP)

922 MHz (KR)

920 MHz (TW)

Modulation

OFDM with BPSK, QPSK, 16QAM, 64QAM

Date rate

Up to 32.5 Mbps

Channel bandwidth

1/2/4/8 MHz

Antenna connector

1x IPEX 4 (MHF4)

Host interface



SDIO

UART

LED

Power

Form factor

M.2/NGFF E-key

Dimensions

22 x 30 mm (0.87 x 1.18 inches)

Operating temperature

-20° C to 60° C (-4° F to 140° F)

M.2/NGFF slot pinout.

Device Type
Wireless Card
