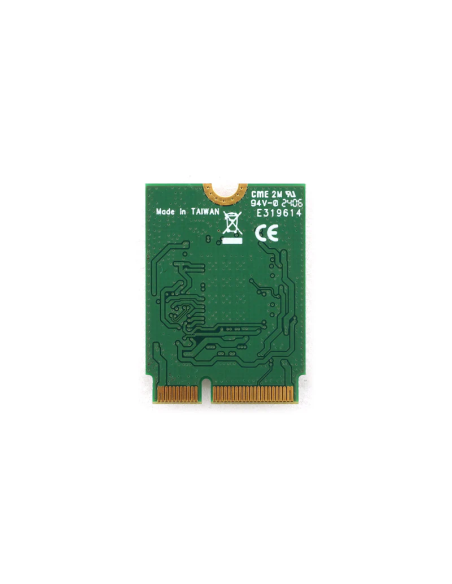

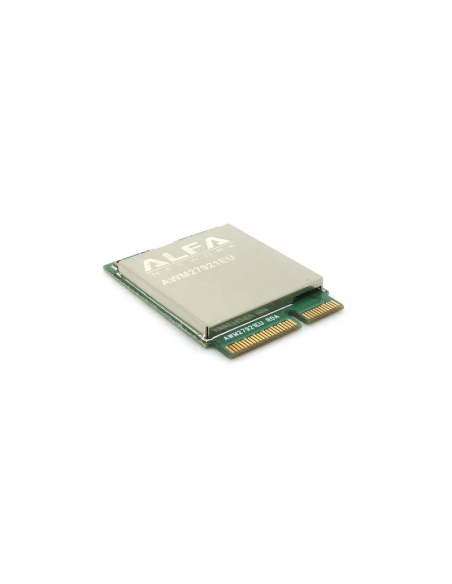

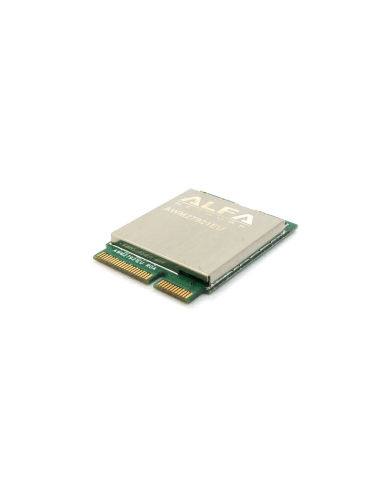

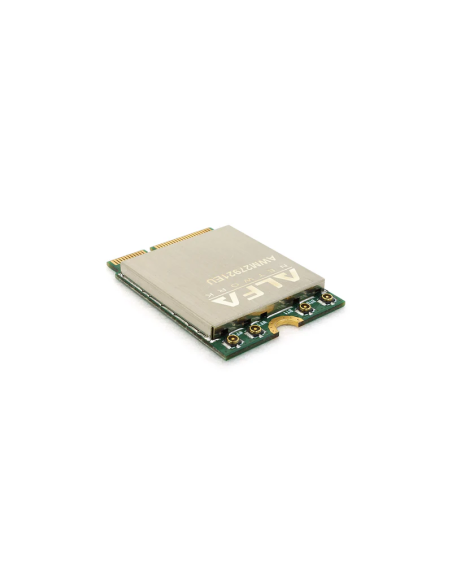

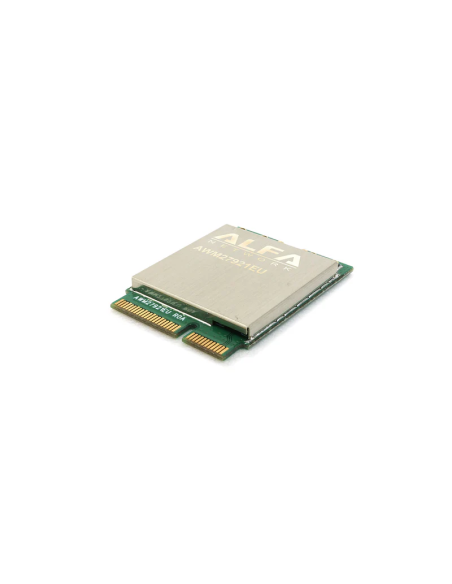

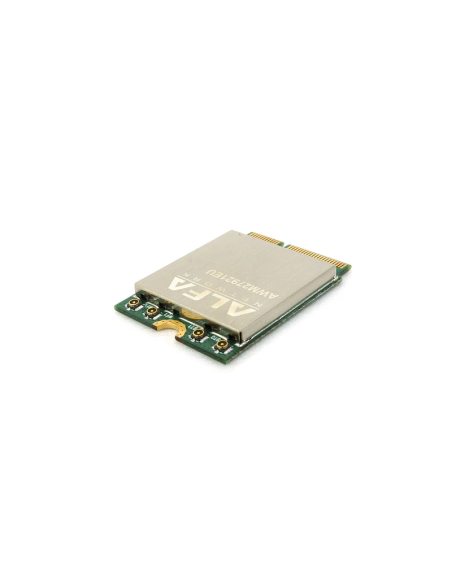

Alfa AWM27921EU WiFi 6E 2x2 dual-band WLAN and Bluetooth v5.2 M.2 module

AWM27921EU
In Stock
$48.40
Tax included

AWM27921EU- WiFi 6E and Bluetooth v5.2 M.2 module

The AWM27921EU is a WiFi 6E 2x2 dual-band WLAN and Bluetooth v5.2 M.2 module

Key Features:

  • IEEE 802.11 a/b/g/n/ac/ax compliant
  • Support 20 MHz, 40 MHz, 80 MHz bandwidth in 2.4 GHz, 5 GHz, 6GHz band
  • Support Bluetooth 5.2
  • Dual-band 2T2R mode
  • Data rate up to 800 Mbps with USB3.0
  • Support STBC, LDPC, TX Beamforming, and RX Beamforming
  • Bluetooth v5.2 with BLE (BT low energy)
  • Support BT/BLE dual mode
  • Support BT/Wi-Fi coexistence

Keypoint

  • MediaTek MT7921AUN chipset
  • 2x Wi-Fi IPEX4 (MHF4) connector
  • 2x BT IPEX4 (MHF4) connector
  • M.2/NGFF E-key 2230

Related Products & Accessories



AWM27921EU-WiFi 6E and Bluetooth v5.2 M.2 module

Specifications:

Hipset

MediaTek MT7921AUN

IEEE 802.11 standards

a/b/g/n/ac/ax

Frequency





2.4 GHz

5 GHz

6 GHz

Bluetooth

v5.2

Data rate











11b: 1, 2, 5.5, 11 Mbps

11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

11n: up to 300 Mbps

11ac: up to 866.7 Mbps

11ax: up to 573.5 Mbps

11ax: up to 1201 Mbps

Form factor

M.2 E-key (USB bus)

Antenna connector



2x IPEX (Wi-Fi)

2x IPEX (BT)

Dimensions

22 x 30 x 2.8 mm

Operating temperature

-25 °C – 75 °C

Operation voltage

3.3 V

Power consumption

755 mA (max.)

Operating systems

Microsoft Windows 10/11

Linux

Wireless System
2.4GHz
5GHz
6GHz
AWM27921EU
No reviews

Related Products & Accessories

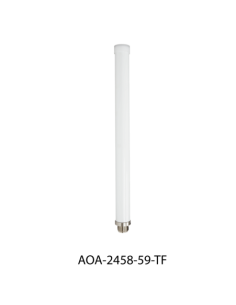

AOA-2458-59-TF Alfa Dual Band NFI Omni
