WL-R200LF1
*** Out of stock ATM, Available On Backorder ***
$278.06
Tax included

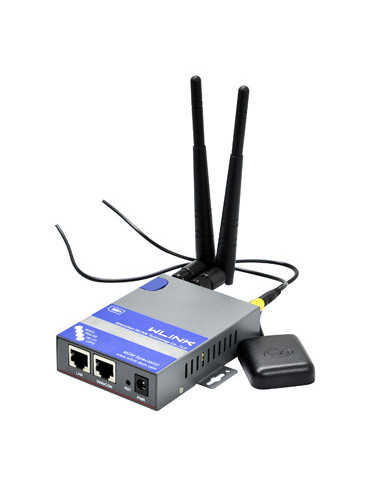

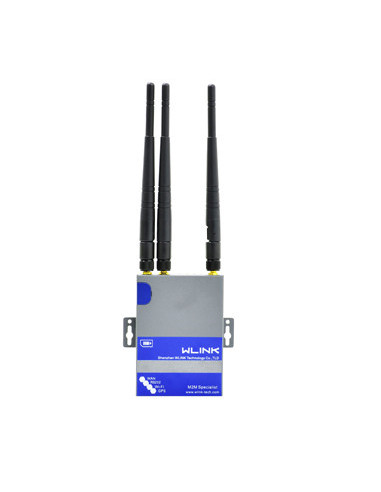

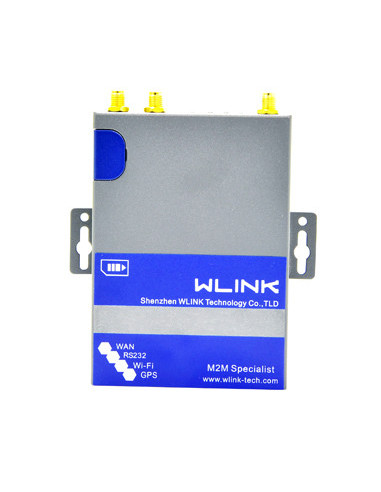

WL-R200LF1 4G/3G Router 2xLAN OpenWrt M2M/IoT 802.11b/g/n

WLINK WL-R200 series Router is  an IoT ( internet of thing) and M2M (machine to machine) mobile broadband router, which optional works on 4G/3G cellular network to provide reliable, secure and high speed mobile connectivity with VPN supported.  It is powerful and programmable industrial mobile router with high performance and harden casing design for remote management, telemetry, condition monitoring, CCTV, ATMs, vending machine and other M2M applications.

WL-R200 4G router is an ideal wireless data transfer device for applications transfering large data load because of ultimate fast speed in 4G network reaching up to 150M download and up to 50M upload. VPN features also can be configured in WLINK router, allowing you to utilize virtual private network service through a4G/3G wireless router and built for stresses and workload of a modern industrial or commercial environment. Its compact small size design, enable WL-R200 Router easy to be embedded into other equipment or system.

The WL-R200 with Ethernet capability, also come with a serial RS232 port for communication via serial port.



WL-R200LF1 - WLINK 4G/3G Router 2xLAN OpenWrt M2M/IoT 802.11b/g/n

Product Features:

FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B28 - All Australian 4G bands

Specfication

Optional Supports
Mobile Network
  • FDD-LTE / TDD-LTE

  • DC-HSPA+/HSPA+/HSPA/HSDPA/WCDMA/UMTS

  • EDGE/GPRS

  • CDMA2000 EVDO/CDMA 1X

Ethernet Standard
  • IEEE 802.3

  • IEEE 802.3u

Interface
  • 2× 10/100Mb LAN, 1x WAN

  • 1× RS-232

  • 2x GPIO Inout, 1xGPRIO Output

  • 2× SMA-K, 2xSMA-RP antenna connectors

  • 2× Standard SIM/R-UIM Slot

  • power connector

LED instruction
  • PWR

  • WLAN

  • ERR

  • SIGNAL

  • WAN

  • LAN (LAN1~LAN2)

Power supply

  • 7.5 - 32VDC

Power Consumption
  • Idle: 80mA@+12VDC

  • Single Module Communications: 320mA@+12VDC

Other
  • Dimension: 102mm x 100mm x 42mm (not including antenna)

  • Weight: 350g

  • Operation temperature: -30~+70 degree

  • Store temperature: -40~+85 degree

  • Relative Humidity: <95% (non-condensing)

  • Guarantee: one year

Approval
  • CE

  • RoHS

  • CCC

Standard

EN 300 328 v 1.7.1 (2016-11)
EN 301 489-1, EN 301 489-17, EN 301 489-52
EN 301 908-1 EN 301 908-2/13,
EN 55024:2015
EN 60950-1,
EN 55032:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 62311:2008

Device Type
Router
Device Features
Industrial
Ethernet Ports
1 Eth port
Installation Type
DIN-rail
4712331728560
WL-R200LF1
