WLINK WL-R130-LA1-w 4G Industrial Router 4G LTE Cat4, 2 SIM,GPS/GNSS

WL-R130-LA1-w
Last items in stock
$230.00
Tax included

WL-R130-LA1-w

WLINK R130 is a compact and versatile 4G gateway cellular router tailored for the users/ integration companies to integrate into their system for various of M2M/(I)IoT application especially where installation space has challenge including metering, traffic systems, military, homeland-security and emergency-response. It is engineered to meet diverse interface requirements, featuring a configuration that includes 1xLAN, 1xRS232, and 1xRS485 ports. The R130 is equipped with a state-of-the-art CPU processor, ruggedized enclosure and powerful internal components to withstand extreme temperature, dust and moisture. Its terminal block for secure power supply, ensuring reliability and efficiency in demanding environments.

Powered by an embedded Linux operating system, the R130 boasts a suite of rich software features. It's not just a router; it's a multi-functional device capable of acting as a DTU (Data Terminal Unit) or RTU (Remote Terminal Unit), providing flexible solutions for your industrial needs. With optional GPS capability, enable the embedded router ideal for IP camera, fleet tracking or access management applications.

Additionally, the R130 is eSIM supported, making it easier to switch from one carrier to others.

Related Products & Accessories



WL-R130-LA1-w - WLINK Industrial Router
 4G LTE Cat4 Router


Easy to integrate, deploy or mount

Flexible choice of different project.

Support various of mounting way includes DIN Rail Mount, Rack Mount and Desktop etc.

High performance, Industrial-Grade Design

Fan-free design, Robust housing and a wide operating temperature range (–40°C to 70°C). Resilient against strong magnetic interference. Dual power supplies for redundancy, isolated input, and a wide voltage range.

Secure and Reliable Network

Support robust security features, such as Multiple VPN – IPSec/OpenVPN/DMVPN/ WireGuard/ ZeroTier/ GRE/PPTP/L2TP, NAT, port forwarding, a stateful firewall and packet filtering, data encryption, Access Control List (ACL) and provide secure, reliable communications.

Serial Communication

With its RS232 and RS485 interfaces, the R130 is an ideal solution for serial communication with Meter/Sensor/Controller, supporting Serial port to IP features, Modbus RTU/TCP protocol, and MQTT protocol uploading.



Various Network Protocol

Supports Modbus RTU, TCP, HTTPS, MQTT, TR-069, SNMPv3 and IPv6 protocol, make the router satisfy with different network demand.

eSIM optional

Flexible choice for different carriers, making it easier to switch from one carrier to another.

Product Features:

Physical
  Network


  • 5G RedCap/LTE-A/LTE/LTE CAT1 cellular

  • HSPA/UMTS/WCDMA

  • EDGE/GPRS



  Hardware System

  • MIPS 580MHz CPU

  • 128Mb Flash

  • 1Gb DDR2 RAM

  • Hardware Watchdog

  • eSIM optional support

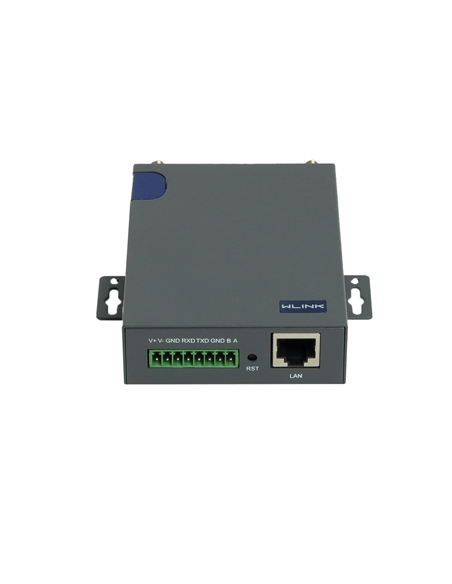

 Interface

  • 2x SIM Slots

  • 1x 10/100M Ethernet Port

  • 1x RS232(TTL Optional), 1x RS485

  • 1x DC Power Socket(DC5.5*2.1mm)

  • 1x DC( 2 Pins plugs)

  • 2x SMA-K(Female) 4G Antenna

  • 1x Reset

  GPS (Optional)

  • GPS Sensitivity: -160dBm

  • GPS Accuracy: 2.5m CEP

  • Update Rate: 1Hz@5Hz

  • Time to First Fix: Cold Status 27s, Hot status 1s.

  • Protocol: NMEA-0183 2.3V

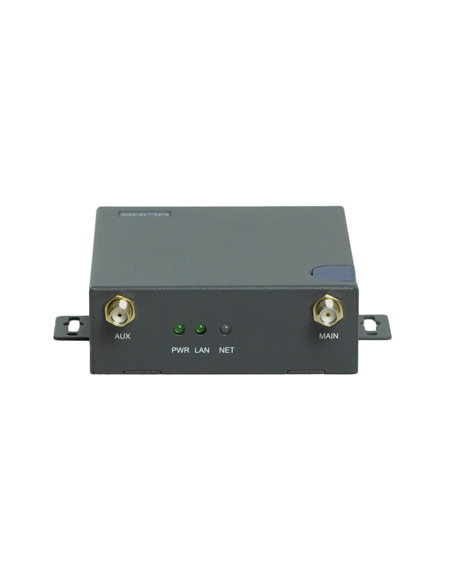

 LED Indicators

  • PWR

  • LAN

  • NET

  Wi-Fi
    (Optional)

  • IEEE 802.11 b/g/n 300Mbps(2T2R)

  • Output Power 11n HT40 MCS7: 15dBm, 11b CCK: 18dBm, 11g  OFDM: 15dBm

  • Sensitivity
        300Mbps: -65dBm
        54Mbps: -73dBm
        11Mbps: -86dBm
 Consumption

  • Voltage: DC +7.5 ~ 32V (standard 12V/1.5A power   adapter)

  • SIM/R-UIM Card: 1.8V/3V

  • Idle: 110mA@+12VDC

  • Online: 170mA@+12VDC

  Other

  • Galvanized metal with grounding Screw

  • Dimension:  103mm x 73.5mm x 25.5mm (not   including antenna)

  • Weight: 225g (not including accessories)

  • Operation temperature: -30~+75℃

  • Store temperature: -40~+85℃

  • Relative humidity: 0~95% (non-condensing)

  • Guarantee: two years
 Compliance

  • FCC

  • CE

  • RoHS

  • CCC

  Package Content

  • 1x WL-R130 Router

  • 2x 4G Magnetic antenna

  • 1x Ethernet Cable

  • 1x Power Supply Adapter

  • 1x DIN Rail Mount Kits
Software
 Operating
    System

  • WLINK OS based Linux

 Firewall

  • NAT/DMZ

  • Port Map

  • IP Filter

  • Mac Filter

  • Key Word Filter

  • Domain Name Filter
 Network Protocol

 IPv4 v6, IPV6,PPPoE, UDP, TCP, ICMP, NTP, DHCP, Modbus, HTTP, HTTPS, UPNP, SNMPv3, TR069, DDNS, Telnet SSH, MQTT

  Network
    Monitoring		     ICMP Check
    Traffic Check
    Traceroute
    Data Capture
    Bandwidth Graph

    Data Traffic Graph

    System Debugging Log
 VPN

  • CRE Tunnel

  • Zerotier VPN

  • Wireguard VPN Client and Sever supported

  • OpenVPN: TLS1.2, Encryption as DES, RC2, BF,3DES, CAST5,AES,SEED 45 encryption methods

  • PPTP/L2TP:  Client mode, L2TPv3 supported

  • IPSec: GRE Over IPsec, L2TP over IPsec, Two tunnels Failover,  IKEv1, IKEv2, DES, 3DES, AES128, AES192, AES256 multiple encryption methods supported.

  • DMVPN: mGRE, NHRP, IPsec

  Network Features

  • Dual-SIM Failover

  • WAN/4G Failover

  • Serial Port Client/Server Applications

  • AT command over IP

  • VRRP

  • VLAN

  • IP Passthrough

  • Bandwidth Management

  • Static Routing/Policy Routing

  • RIPV2/OSPF/BGP Dynamic Routing
 Router  Management

  • Local/Remote GUI

  • Telnet/SSH

  • SNMP v3/TR069

  • WLINK M2M Management Platform

 WLAN

(Optional, not default)

  • IEEE 802.11b/g/n, WISP and Client modes

  • WiFi users up to 128 simultaneous connections

  • Wi-Fi Hotspot

  • Wireless Black/White List

  • Coova Chilli Push

  • WiFi Client mode supports 3 Peer SSID, Signal Lock, BSSID Lock
 SMS Management

  • Router Information Query

  • SIM Information Query

  • Router Status Quecry

  • Singal Query

  • SMS Configuration

 WiFi Security

(Optional, not default)

  • WEP

  • WPA Personal/Enterprise

  • WPA2 Personal/Enterprise

  • WPA/WPA2 Personal/Etnerprise

  • AES, TKIP, Auto Cipher modes

Device Type
Router
Device Features
Industrial
Ethernet Ports
1 Port 10/100
Installation Type
DIN-rail
