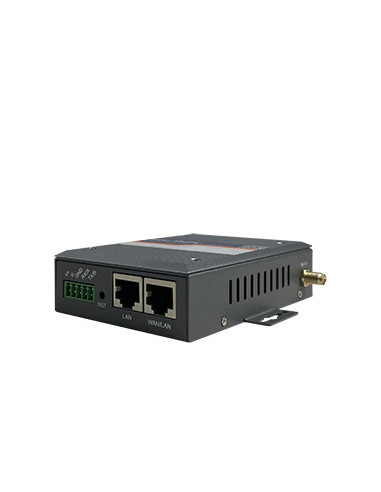

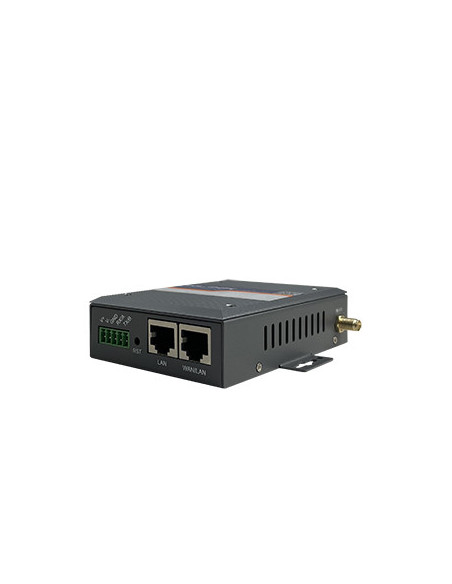

WLINK G230 Industrial 2.4/5 GHz 5G 4G LTE-A Compact Mobile Router

WL-G230-NQ-w
In Stock
$748.00
Tax included

WL-G230-NQ-w

5G, the 5th generation mobile network, is changing the digital world. Keep pace with the state-of-the-art technology with us - Wlink compact 5G router WL-G230 is ready for your IoT/M2M solutions in various of industries.

With a rugged and compact design housing, simultaneous dual-band 11ac Wi-Fi and embedded 5G cellular module, the small WL-G230 yet powerful 5G Router supports global 5G SA and NSA, supports VPN such as DMVPN, OpenVPN, IPsec, GRE and PPTP/L2TPv3 security features. It can provide incredible-speed, ultra-reliable, low-latency, and large capability wireless connectivity and delivers up to 4Gbps downlink speed and maximum 900 Mbps uplink speed. Ideal for immediate file transfers, live streaming, and public safety applications.

WL-G230 5G router equips two Gigabit Ethernet ports for professional broadcast and one serial port, GbE port is configurable as WAN to realize failover between 5G and WAN. The terminal block connector for power makes the router security enough for true industrial applications.

Not only you can monitor, upgrade, and manage your 5G devices anytime anywhere with Wlink cloud-based Management Platform, but also you can create a custom remote management option because the router supports TR-069 technology and SNMP.



WL-G230-NQ-w - WLINK G230 Industrial 2.4/5 GHz 5G 4G LTE-A Compact Mobile Router

Incredible Mobile Network Speed

5G blazing fast Mobile Broadband Internet, delivering ground-breaking download speeds up to 4Gbps.Also, fallback support 4G LTE-A pro Cat20/16 mobile network.

High performance, Industrial-Grade Compact Design

Robust small housing, easy to integrate and deploy. Resilient against strong magnetic interference. Industrial terminal block connector for power, additional Radiator panel to avoid overheat.

Low latency, increased capacity

Low Latency is a major advancement of 5G. It basically means how long a data packet needs to travel from device or from mobile to server. Massive MIMO can help boost link quality and reliability, and increase capacity w/o requiring more spectrum aswell as superior energy efficiency.

Small Yet Powerful

Powerful dual-core 880 MHz CPU, Multiple interfaces include Gigabit Ethernet, RS-232/485, plug-and-play terminals, Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi, WAN and/or AP.

Cloud-Based Platform Management

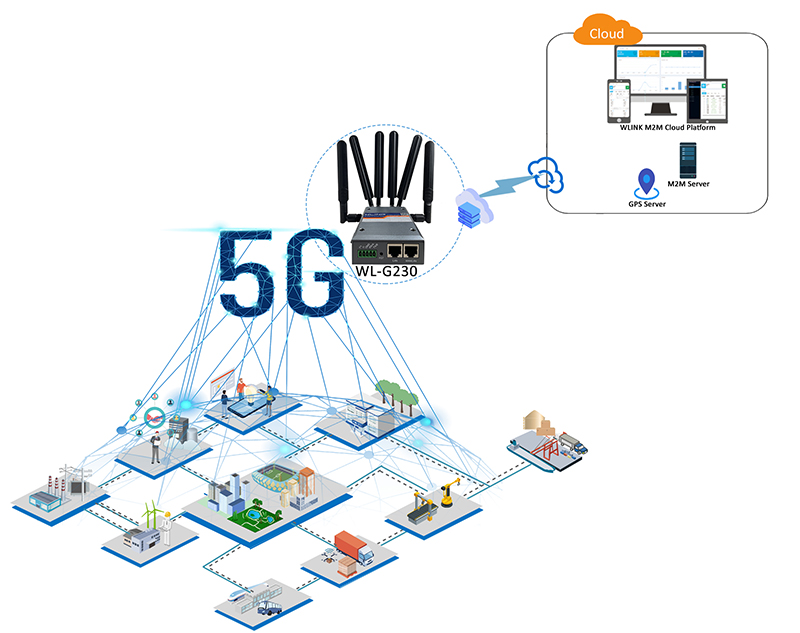

G230 can be managed via cloud management platform which provide easy setup, centralized configuration, network analysis and maintenance of large installations. With the platform, the operator can remotely manage and monitor all of routers, Wi-Fi users’ status, update configuration files, Statistics, firmware upgrade and advertisement Update.

Secure and Reliable Network

Support advanced security features, such as DMVPN, OpenVPN, IPsec IKEv1 / IKEv2, L2TPv3, OpenVPN, NAT, port forwarding, a stateful firewall and packet filtering, data encryption, Access Control List (ACL) and provide secure, reliable communications.

CLASSIFICATION APPLICATION

Enhanced Mobile Broadband

URLLC (Ultra Reliable Low Latency Communications) Massive IoT

Key network considerations Per-connection peak speed, network capacity Includes immediate file transfers, live streaming, browsing the web, public transit, and other data-intensive and image-intensive use cases

Key network considerations Reliability, latency such as VR and AR, remote control of critical infrastructure,

vehicles, Industrial automation and utilities

Key network considerations scalability to very large

number of connections includes Smart City, Connected Vehicles, Smart Home, Smart Media, Smart Factories,

Healthcare, Smart Metering, Smart Grid, Oil and gas

Physical
Ultra Network


    • 5G

n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
  • 4G

    FDD-LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/

B13/B14/B17/B18/B19/B20/B25/B26/B28/B29

/B30/B32/B66/B71

TDD-LTE B34/B38/39/B40/B41/B42/B48

  • 3G

    HSPA/UMTS B1/B2/B3/B4/B5/B6/B8/B19


Hardware System
  • MIPS Dual-core 880MHz

  • 256Mb Flash, 2Gb DDR3 RAM

  • Hardware Watchdog

Interface
  • 2x Gigabit Ethernet (1x LAN, 1X LAN/1x WAN Configurable)

  • 1x SIM Slot

  • 5Pins Terminal block connector

  • 1x RS232/RS485

  • 1x DC(2Pins plugs)

  • 1x SIM Tracy

  • 4x SMA-K(Female) 5G Antenna Interface

  • 2x SMA-RP Wi-Fi Interface


GPS (Optional)
  • GPS Sensitivity: -160dBm

  • GPS Accuracy: 2.5m CEP

  • Update Rate: 1Hz@5Hz

  • Time to First Fix: Cold Status 27s, Hot status 1s

  • Protocol: NMEA-0183 2.3V

 LED Indicators
  • Cellular

  • LAN

  • WAN

  • WLAN

 Wi-Fi

  • IEEE 802.11 n/ac

 Consumption
  • Voltage: DC +7.5~32V (standard 12V/2A power   adapter)

  • SIM/R-UIM Card: 3V

  • Idle: 600mA@+12VDC

  • Online : 80mA@+12VDC


Other
  • Galvanized metal with grounding Screw

  • Dimension: 103mm x 73.5mm x 28mm (not including antenna)

  • Weight: 320g (not including accessories)

  • Operation temperature: -30 ~ +75℃

  • Store temperature: -40~+85℃

  • Related humidity: 0~95% (non-condensing)

  • Guarantee: one year


 Compliance
  • FCC

  • CE

  • RoHS

  • CCC

Package Content
  • 1x WL-G230 Router

  • 2x Wi-Fi antennas

  • 4x 5G Magnetic antennas

  • 1x Ethernet Cable

  • 1x Power Supply Adapter

 Software
 Operating
    System
  • WLINK OS based on Linux

Firewall
  • IP Filter

  • Mac Filter

  • Domain name Filter

 Network Protocol
  • IPv4, IPv6 (Optional)

  • PPPoE

  • UDP/TCP/ICMP/NTP/DHCP,

  • HTTP/HTTPS

  • UPNP

  • SNMP

  • TR069

 Network
    Monitoring
  • ICMP Check

  • Traffic Check

  • Traceroute

  • Data Capture

  • Bandwidth Graph

  • Data Traffic Graph

 VPN
  • PPTP/L2T

  • PGRE

  • IPSec IKEv2

  • OpenVPN

  • DMVPN

 Network Features
  • 5G/WAN Failover

  • VLAN

  • Bandwidth Management

  • NAT/DMZ

  • IP Passthrough / Port Redirection

  • Static/Dynamic routing

 Router Management
  • Local/Remote GU

  • ITelnet/SSH

  • WLINK M2M Platform

 WLAN Mode
  • Access Point

  • AP + WDS

  • Wireless Client

  • Wireless Ethernet Bridge

  • WDS

 Wi-Fi Network
    Mode
  • 2.4G

  • 5G

  • 2.4G&5G

 WiFi Security
  • WEP

  • WPA Personal/Enterprise

  • WPA2 Personal/Enterprise

  • WPA/WPA2 Personal/Etnerprise

  • Radius

Device Type
Router
Device Features
Industrial
Wireless System
5G Mobile
Ethernet Ports
2
