WL-G200-LF6-w
In Stock
$399.00
Tax included

WL-G200-LF6-w

Wlink WL-G200 is the compact, powerful M2M LTE router. Equipped with high-performance industrial communication processor ARM Cortex A7 900MHz and 2x Gigabit Ethernet ports, it ensures the users with stable connection and high data throughput.

Simultaneous 802.11n/ac Wi-Fi (2.4GHz & 5GHz) is an option for applications which hotspot functionality is required. GPS is optional supported for users who need location tracking. It is the router perfect for advanced Industrial and Enterprise applications

BAnds: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41

Quantity Unit price You Save
6 $388.00 $66.00
10 $378.10 $209.00

Related Products & Accessories



WL-G200-LF6-w CAT6 industrial M2M IoT router

Industrial M2M IoT 4G Cat6 router

Physical

Optional Cellular

Network



  • LTE-A

  • LTE

  • HSPA/UMTS

  • EDGE/GPRS

  • Compatible with 5G

 Hardware System

  • ARM   Cortex A7 900MHz

  • 128Mb Flash, 1Gb DDR3 RAM

  • Hardware Watchdog

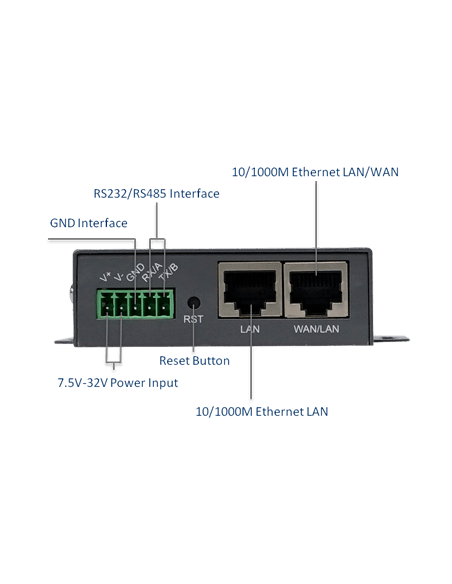

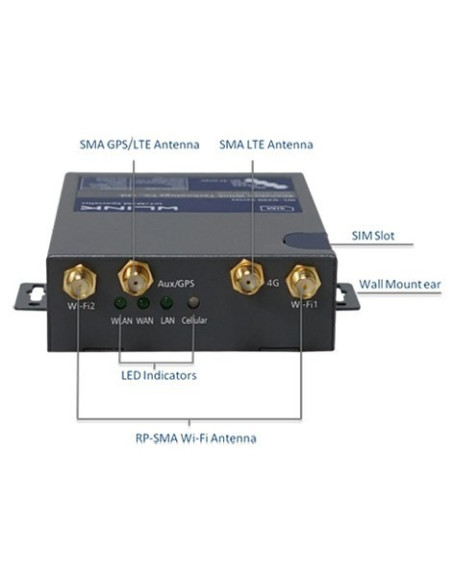

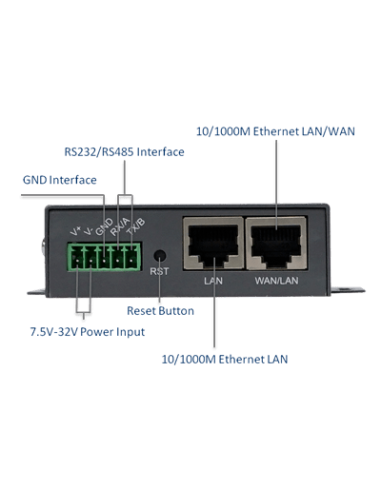

Interface

  • 2x Gigabit Ethernet (1x LAN, 1X LAN/1x WAN   Configurable)

  • 1x SIM Slot

  • 5Pins Terminal block connector

  • 1x DC Power Interface (Anti-reverse)

  • 1x RS232(RS485 Optional)

  • 2x SMA-K(Female) 4G Antenna Interface

  • 2x RP-SMA Wi-Fi Interface

 GPS (Optional)

  • GPS   Sensitivity: -160dBm

  • GPS Accuracy: 2.5m CEP

  • Update Rate: 1Hz@5Hz

  • Tim to First Fix: Cold Status 27s, Hot status 1s.

  •  Protocol: NMEA-0183 2.3V
LED Indicators

  • Cellular

  • LAN

  • LAN/WAN

  • WLAN

 Wi-Fi

  • IEEE   802.11 n/ac

  • 2.4G, 5G
Consumption

  • Voltage: DC +7.5~32V (standard 12V/1A power   adapter)

  • SIM/R-UIM Card: 3V

  • Idle: 165mA@+12VDC

  • Online Without Wi-Fi): 195mA@+12VDC,

          (with Wi-Fi) 235mA@+12VDC

 Other

  • Galvanized   metal with grounding Screw

  • Dimension: 103mm x 73.5mm x 25.5mm (not including antenna)

  • Weight: 320g (not including accessories)

  • Operation temperature: -30~+75℃

  • Store temperature: -40~+85℃

  • Related humidity: 0~95% (non-condensing)
Compliance

  • FCC

  • CE

  • RoHS

  • CCC

 Package  Content

  • 1x WL-G200 Router

  • 2x Wi-Fi antenna

  • 2x 4G Magnetic antenna

  • 1x Ethernet Cable

  • 1x Power Supply Adapter
Software
Operating System

  • WLINK OS based on Linux

 Firewall

  • IP Filter

  • Mac Filter

  • Domain name Filter
Network Protocol

  • IPv4, IPv6 (Optional)

  • PPPoE

  • UDP/TCP/ICMP/NTP/DHCP,

  • HTTP/HTTPS

  • UPNP

  • SNMP

 Network Monitoring

  • ICMP Check

  • Traffic Check

  • Traceroute

  • Data Capture

  • Bandwidth Graph

  • Data Traffic Graph
VPN

  • PPTP/L2TP

  • GRE

  • IPSec

  • OpenVPN

 Network Features

  • 4G/WAN Failover

  • VLAN

  • Bandwidth Management

  • NAT/DMZ

  • IP Passthrough / Port Redirection

  • Static/Dynamic routing
Router Management

  • Local/Remote GUI

  • Telnet/SSH

  • WLINK M2M Platform

 WLAN Mode

  • Access Point

  • AP + WDS

  • Wireless Client

  • Wireless Ethernet Bridge

  • WDS
Wi-Fi Network
    Mode

  • 2.4G

  • 5G

  • 2.4G&5G

 WiFi Security

  • WEP

  • WPA Personal/Enterprise

  • WPA2 Personal/Enterprise

  • WPA/WPA2 Personal/Etnerprise

  • Radius
Device Type
Router
Device Features
Industrial
Wireless System
4G Mobile, 2.4GHz, 3G Mobile, LTE Mobile, 5GHz
Ethernet Ports
2, 2
