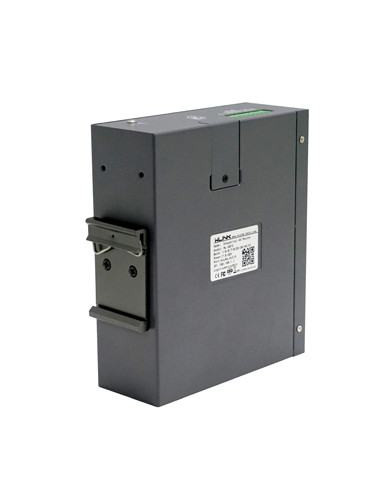

WLINK G510 Industrial Dual Band 4G LTE Mobile Gigabit Router

WL-G510-LF1
In Stock
$494.99
Tax included

WL-G510-LF1

The WL-G510 is a highly reliable and secure industrial 4G LTE router optimised for professional M2M and IOT deployment. This device has a DIN rail mount heavy duty metal enclosure and features (4) Gigabit Ethernet ports, (2) SIM R-UIM slots, (5) SMA-K antenna interfaces, (1) USB 3.0 port, (2) RS323 port, dual band WiFi, and integrated GPS. The WL-G510 currently supports 1 Gbps Gigabit routing.

Router dimensions: 132 x 112 x 44mm

WLINK WL-G510 Features:

  • High performance Cortex A7 900MHz CPU
  • High speed Cat4 and reliable network
  • Optional EMMC/EUDM for extended storage
  • Shock & vibration resistant
  • Operating temperature: -30 ~ 75C


WL-G510-LF1 - WLINK G510 Industrial Dual Band 4G LTE Mobile Gigabit Router

Specification
 Optional Cellular Network
 Ethernet Standard
  • LTE-Advanced / FDD-LTE / TDD-LTE 4G

  • DC-HSPA+/HSPA+ /HSPA/HSDPA

  • EDGE/GPRS

  • Support future 5G

  • 10/100/1000 Base-T (IEEE 802.3)

  • Mode: Full or half duplex (self-adaptive)

 WLAN  Hardware System
  • Standard: IEEE 802.11 b/g/n/ac

  • Security: WEP, WPA and WPA2   encryption

  • Mode: AP, Client, station, bridge mode support


  • CPU: Cortex A7 Core. 900MHz/867Mbps

  • Memory: 128Mb Flash, 1Gb DDR3 RAM

  • Storage: EMMC/EUDM built-in mainboard (optional)

 Route Protocol  VPN Tunnel
  • Static route
    RIPv2/OSPF dynamic route

  • IPSec
    PPTP/L2TP client
    GRE
    OpenVPN

 Firewall & Filter  GPS (Optional)
  • IP packet/Domain/MAC filter

  • NAT

  • DMZ

  • GPS sensitivity: -160dBm

  • GPS accuracy: 2.5m CEP

  • Update Rate: 1Hz@5Hz

  • Time to First Fix: Cold Status 27s, Hot status 1S

  • Protocol: NMEA-0183 2.3V


 Device Management  LED Instruction
  • Local or remote web browser (IE v8 or   above)

  • CLI/Telnet command

  • M2M management platform (optional)

  • SSH configuration (optional)

  • PWR

  • WLAN

  • Signal

  • ERR


 Power Consumption  Power Supply
  • Power Consumption:

              Operate: 460mA@+12VDC,

              Idle: 400mA@+12VDC

  •     7.5VDC - 32VDC (max 48VDC extendable)

 Interface  Other
  • 4× Gigabit Ethernet (3xLAN,1xWAN/LAN)

  • 1× Console Port

  • 8 Pins Terminal Block   contents:
                1×RS232 (RS485   Optional)
                  2×Digital Input
                  1×Digital Output
                  1×DC power   interface(Anti-reverse)

  • 5× SMA-K antenna interface

  • 2× Standard SIM/R-UIM Slot

  • 1x expansion USB 3.0

  • Dimension: 132mm x 112mm x 44mm
                            (not including antenna)

  • Weight: 400g

  • Operation temperature: -30 ~ +70 degree

    Storage temperature: -40 ~ +85 degree

    Relative humidity: <95%   (non-condensing)

  • Guarantee: one year

 Certification  Package Contents
  • FCC

  • CE

  • RoHS

  • CCC

  • 1x 4G/3G Router

  • 2x Wi-Fi antenna

  • 2x 4G Magnetic antenna

  • 1x Ethernet Cable

  • 1x Power Supply Adapter

  • 1x DIN Rail Mounting Kits




Device Type
Router
Device Features
Industrial
Wireless System
2.4GHz
4G Mobile
5GHz
Ethernet Ports
4
