WLINK WL-G535-NQ Industrial 5G Router 4x GbE WAN 1x RS232 1x RS485 1x USB 2x I/O

WL-G535-NQ
In Stock
$660.00
Tax included

WL-G535-NQ

WL-G535 operates in both 5G SA and NSA modes, full backward compatibility with 4G LTE and 3G networks. It achieves a theoretical peak throughput of 3.4Gbps, enabling real-time data transmission for latency-sensitive industrial operations.

Key Features:

  • 5G - Incredible Speed Cutting-Edge 5G Performance
  • Quad-Core Powerhouse
  • Versatile Connectivity
  • Flexible and Customizable OS
  • Blazing Fast Wi-Fi6
  • Cloud-Based Platform Management
  • Secure and Reliable Network


WL-G535-NQ, WLINK Industrial 5G Router 4x GbE WAN 1x RS232 1x RS485 1x USB 2x I/O

Engineered for mission-critical industrial IoT applications, the WL-G535 delivers ultra-reliable 5G connectivity compliant with 3GPP Release 17 standards. It operates in both 5G SA and NSA modes with network slicing capabilities, while maintaining full backward compatibility with 4G LTE and 3G networks. Through advanced carrier aggregation technology, it achieves a theoretical peak throughput of 3.4Gbps, enabling real-time data transmission for latency-sensitive industrial operations.

 Powered by a quad-core 1.8GHz ARM Cortex-A53 processor and a dedicated hardware encryption engine, the router integrates 5x GbE Ethernet ports, 1x RS232, 1x RS485 serial ports, and programmable DI/DO digital controls. Its 802.11ax Wi-Fi 6 dual-band module supports concurrent speeds up to 1.8Gbps, while supported a deeply customized OpenWrt-based operating system optional, which embraces a variety of open-source components and multi runtime environments—empowering customers to tailor solutions for custom applications.

 Widely applicable across industries, the G535 is an ideal solution for factory automation, smart grids, intelligent transportation, environmental monitoring, security surveillance, public safety, advertising, and more.

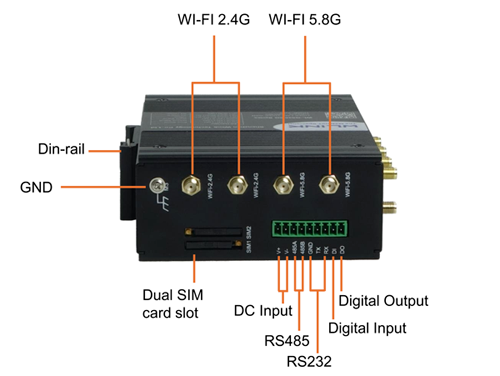

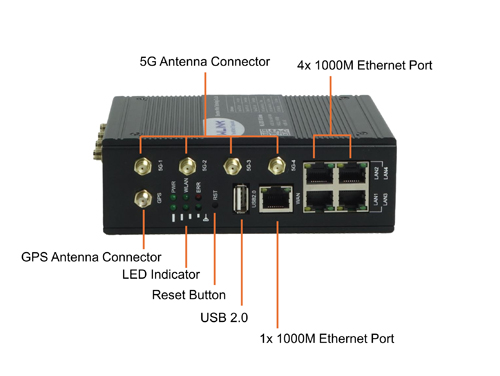

Interface Diagram

Product Specifications

Physical
Ultra Network 5G n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/71/75/76/77/78/79
4G FDD-LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
TDD-LTE B34/B38/39/B40/B41/B42/B48
3G HSPA/UMTS B1/B2/B3/B4/B5/B6/B8/B19
Hardware System
Processor Qualcomm ARM A53 Quad-core 1.8GHz
RAM 1GB DDR3
Flash Storage 32MB NOR Flash (256MB NAND Flash optional)
Watchdog Hardware Watchdog
Interface
Ethernet 4x Gigabit Ethernet (5x LAN, 4X LAN/1x WAN Configurable)
USB 1x USB 2.0 (Configuration, upgrade, troubleshooting)

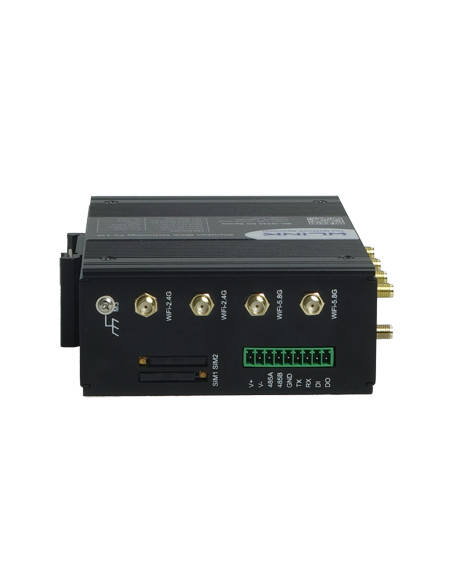

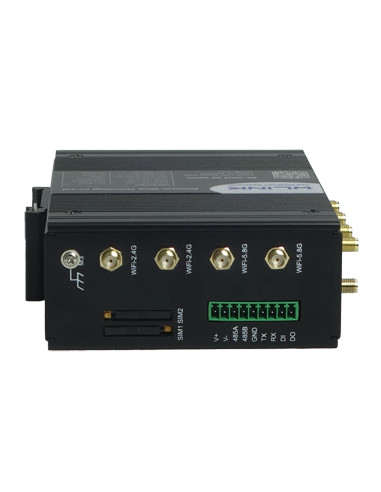

Terminal Block 8Pins Terminal Block Connector
I/O 2x I/O (Dry contact), 1x RS232, 1x RS485
SIM Slot 2x SIM Slot
Antennas 4x SMA-K (Female) 5G Antenna Interface
GPS 1x GPS Antenna Interface (Optional)
Wi-Fi 2x SMA-RP Wi-Fi Interface
GPS (Optional)
GPS Sensitivity -160dBm
GPS Accuracy 2.5m CEP
Update Rate 1Hz@5Hz
Time to First Fix Cold Status 27s, Hot Status 1s
Protocol NMEA-0183 2.3V
LED Indicators
Indicators PWR, Signal, WLAN, NET, LAN (LAN1~LAN4, WAN)
WLAN (Wi-Fi6)
Wi-Fi Standards IEEE 802.11 n/ac
2.4GHz MIMO 2x2 2.4GHz MU-MIMO OFDMA 600Mbps
5GHz MIMO 2x2 5GHz MU-MIMO OFDMA 1201Mbps
Consumption
Voltage DC +9~60V (standard 12V/2A power adapter)
SIM/R-UIM Card 1.8V/3V
Idle Consumption 600mA@+12VDC
Online Consumption 750mA@+12VDC
Other
Material Galvanized metal with grounding screw
Dimensions 142mm x 108mm x 48mm (not including antenna)
Weight 750g (not including accessories)
Operating Temperature -30~+75℃
Storage Temperature -40~+85℃
Relative Humidity 0~95% (non-condensing)
Compliance
Certifications FCC, CE, RoHS, CCC
Package Content
Items Included 1x WL-G535 Router, 4x Wi-Fi antennas, 4x 5G Magnetic antennas, 1x Ethernet Cable, 1x Power Supply Adapter
Software
Operating System WLINK OS based on Linux
Firewall SNAT/DMZ, Port Forwarding, IP/Mac/Key Word/Domain Name Filter, Access Control, Anti-DoS
Network Protocol IPv4, IPv6 (Optional), PPPoE, UDP/TCP/ICMP/NTP/DHCP, HTTP/HTTPS, UPNP, SNMP, TR069
Network Monitoring ICMP Check, Traffic Check, Traceroute, Data Capture, Bandwidth Graph, Data Traffic Graph
VPN Wireguard VPN, Zerotier VPN, GRE Tunnel, OpenVPN, PPTP/L2TP, IPsec, DMVPN
Device Type
Router
Device Features
Industrial
Wireless System
2.4GHz
3G Mobile
4G Mobile
5GHz
LTE Mobile
Ethernet Ports
5
