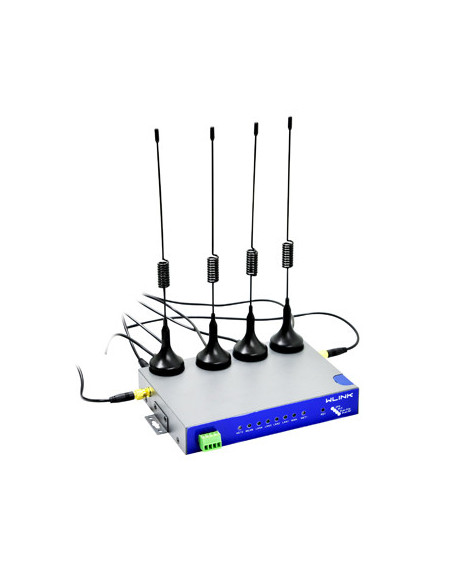

WLINK WL-G520-LF6 Industrial 2.4GHz 4G/5G LTE Router

WL-G520-LF6
In Stock
$389.00
Tax included

WL-G520-LF6

WLINK WL-G520-LF6 is the enhanced version industrial Powerful 4G LTE Router from WL-R520. It is equipped with the Gigabit Ethernet Port and supply 2.4G and 5G Dual Band WiFi comparing to the traditional WL-R520. Simultaneous 2.4G and 5G Wi-Fi gives the users two independent Wi-Fi network which also help reduce 2.4G Wi-Fi congestion and interference to ensure fast and reliable network service.

With the world's leading ARM Cortex A7 900MHz CPU, WL-G520-LF6 achieves data rates up to 1 Gbps and enables gigabit routing.

WLINK G520 also equips serial port as well as a variety of configuration option including GPS and storage. It offers redundant SIM Slot for automatic switching for reliable network, plus terminal block power capability. Advanced routing functionality allows network segmentation and protection of mission critical data. An extensive range of redundancy technologies ensures uninterrupted operation. Thanks to a rugged design and a high industrial temperature span, G520 are suitable for a wide variety of industrial applications.

Ultra Performance
• High-performance Cortex A7 900MHz CPU
• High speed (Cat4/ Cat6/Cat11 )and reliable network
• Simultaneous Dual-band 2.4G & 5G WAN
• Built-in 5-Port GBE Switch, reducing clutter and the need for extra equipment.
• Optional extended storage

Absolutely Industrial Design
• Industrial robust, heavy-duty metal enclosure and connectors designed, good heating diffusion
• SIM screw cover design for secure SIM card
• DIN Rail Mounting design for Industry
• Shock and vibration resistant
• Scheduled reboot via Timing/SMS/Platform
• Endure wide operating temperature range: -30 to 75 degree

Security & Protection
• Recover from various failures automatically by built-in watch dog, Multi-link detection
• Strong electromagnetic interference Resistance
• Power Non-polarity and Anti-reverse
• Redundant SIM slots with automatic switching for reliable network.
• Protect sensitive data by firewall and VPN tunnel (IPsec/OpenVPN/GRE/L2TP/PPTP)

Cloud-based management & Maintenance besides user-friendly WEB GUI
• Efficiently management and quick configuration
• Devices Status Monitoring
• Remote Firmware Upgrade
• Statistics and Aanalysis
• Max support Number of Devices: 100,000+ units



WL-G520-LF6 - WLINK Industrial 2.4GHz 4G/5G LTE Router

 Specification
 Optional Cellular Network
 Ethernet Standard
  • LTE-Advanced / FDD-LTE / TDD-LTE 4G

  • DC-HSPA+/HSPA+ /HSPA/HSDPA

  • EDGE/GPRS

  • Support future 5G

  • 10/100/1000 Base-T (IEEE 802.3)

  • Mode: Full or half duplex (self-adaptive)

 WLAN  Hardware System
  • Standard:  Dual Radio, 2.4G and 5G WiFi for local coverage

  •                     IEE 802.11ac compliant & backward compatible with 802.11a/b/g/n

  • Security: WEP, WPA and WPA2   encryption

  • Mode: AP, Client, station, bridge mode support


  • CPU: Cortex A7 Core. 900MHz/867Mbps

  • Memory: 128Mb Flash, 1Gb DDR3 RAM

  • Storage: SD U Disk inside mainboard

 Route Protocol  VPN Tunnel
  • Static route
    RIPv2/OSPF dynamic route

  • IPSec
    PPTP/L2TP client
    GRE
    OpenVPN

 Firewall & Filter  GPS (Optional)
  • IP packet/Domain/MAC filter

  • NAT

  • DMZ

  • GPS sensitivity: -160dBm

  • GPS accuracy: 2.5m CEP

  • Update Rate: 1Hz@5Hz

  • Time to First Fix: Cold Status 27s, Hot status 1S

  • Protocol: NMEA-0183 2.3V


 Device Management  LED Instruction
  • Local or remote web browser (IE v8 or   above)

  • CLI/Telnet command

  • M2M management platform (optional)

  • SSH configuration (optional)

  • NET

  • WLAN

  • WAN

  • LAN (LAN1 to LAN4


 Power Consumption  Other

          Operate: 520mA@+12VDC,

          Idle: 400mA@+12VDC

  •           Power Supply: 7.5VDC-32VDC (max 48VDC extenable)

  •           Over Voltage protect

  •           Connect protection

  •

  • Dimension: 150mm x 102mm x 25.5mm
                            (not including antenna)

  • Weight: 410g

  • Operation temperature: -30 ~ +70 degree

    Storage temperature: -40 ~ +85 degree

    Relative humidity: <95%   (non-condensing)

  • Guarantee: one year

 Interface Package Contents

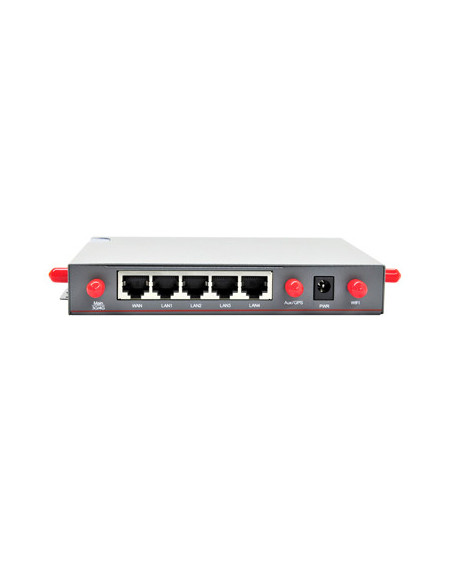

  • 5× Gigabit Ethernet (3xLAN,1xWAN/LAN)

  • 1x RS232 (RS485 optional)

  • 1x DC power inteface

  • 5x SMA-K antenna interface

  • 1/2x Standard SIM/R-UIM slot

  • 1x 4G/3G Router

  • 2x Wi-Fi antenna

  • 2x 4G Magnetic antenna

  • 1x Ethernet Cable

  • 1x Power Supply Adapter

  • 1x DIN Rail Mounting Kits





Device Type
0
Device Features
0
Wireless System
0
Ethernet Ports
4
Installation Type
0
