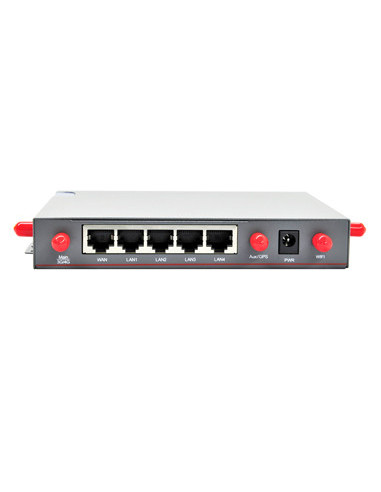

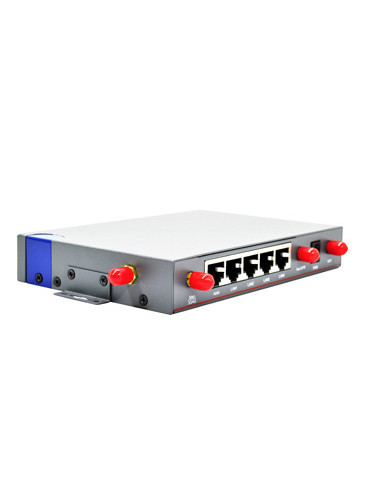

WL-R520LF1 Industrial 4G Router

WL-R520LF1 - WL-R520LF1 Industrial 4G Router

Specification:

Optional  Supports Mobile Network

    FDD-LTE / TDD-LTE

    DC-HSPA+/HSPA+/HSPA/HSDPA/WCDMA/UMTS

    EDGE/GPRS

    CDMA2000 EVDO/CDMA 1X

Ethernet Standard

    IEEE 802.3

    IEEE 802.3u

Interface

    5× 10/100Mb LAN (4XLAN, 1xWAN configurable)

    1× RS-232

    1(2)× SMA-K, 1(2)x SMA-RP antenna connectors

    1× Standard SIM/R-UIM Slot (Daul SIM optional)

    1× power connector

 LED instruction

    NET

    WLAN

    WAN

    LAN (LAN1~LAN4)
Route protocol

    Static route

    RIPv2/OSPF dynamic route

Power supply

    7.5 - 32VDC

Device Management

    Local or remote web browser (IE v8 or above)

    CLI/Telnet command

    M2M management platform (optional)

    SSH configure (optional)

WiFi

    Standard: IEEE 802.11b/g/n

    WEP, WPA and WPA2 encryption

    Standard 150Mbps, 300Mbps optional

    AP, Client, station, bridge mode support

Firewall & Filter

    IP packet/Domain/MAC filter

    NAT

    DMZ

 VPN

    IPSec

    PPTP/L2TP client

    OpenVPN

    GRE/IPIP

Power Consumption

    Idle: 180mA@+12VDC

    Single Module Communications: 210mA@+12VDC

    Dual Module Communications: 600mA@+12VDC

Other

    Dimension: 176mm x 105mm x 25mm (not including antenna)

    Weight: 350g

    Operation temperature: -30~+70 degree

    Store temperature: -40~+85 degree

    Relative Humidity: <95% (non-condensing)

    Guarantee: one year
