Tycon POE-SPLT-BT-UNI-P 802.3af/at/bt PoE Splitter with Selectable 5V/9V/12V/24V DC Up to 72W

Name: Tycon POE-SPLT-BT-UNI-P 802.3af/at/bt PoE Splitter with Selectable 5V/9V/12V/24V DC Up to 72W
Brand: Tycon Power
SKU: POE-SPLT-BT-UNI-P
Price: 133.1 AUD
Availability: BackOrder

Reference POE-SPLT-BT-UNI-P

ETA March 2026

$133.10

Tax included

POE-SPLT-BT-UNI-P

Universal 90W GigE POE Splitter

The POE-SPLT-BT-UNI-P Active PoE splitters are unique, Gigabit speed, Power over Ethernet adapters which convert an 802.3af/at/bt PoE input to an 802.3af/at/bt PoE output plus a selectable VDC output of 5V, 9V,12V or 24VDC on a wire terminal connector.

They have various protections for short circuit, overload and over temperature. If powered by 802.3bt PoE @ 90W the PoE Splitter total output power is 72W Max. If powered by 802.3at @ 30W then total output power is 24W. If powered by 802.3af @15.4W the total output power is 12W. Input power should be ~20% higher than required total output power.

Key Features:

802.3af/at/bt PoE IN to VDC & PoE OUT
Selectable VDC Output: 5V,9V,12V, 24V
Up to 72W OUT with 90W IN
Gigabit Ethernet compatible
Industrial Operation: -40C to +75C

Description
Product Details

POE-SPLT-BT-UNI-P Tycon POE-SPLT-BT-UNI-P 802.3af/at/bt PoE Splitter with Selectable 5V/9V/12V/24V DC Up to 72W

Specification	Details
Model	POE-SPLT-BT-UNI-P
Output Voltage (with 90W 802.3bt PoE input)	5VDC @ 14A 9VDC @ 7.8A 12VDC @ 5.9A 24VDC @ 3A 48VDC on PoE Out Port (802.3af/at/bt compatible)
Max Combined Output Power	72W with 90W PoE Input (802.3bt) 24W with 30W PoE Input (802.3at) 12W with 15.4W PoE Input (802.3af)
Output Connectors	Shielded RJ45 & Wire Terminal (up to 12 AWG)
PoE Input (RJ45)	802.3af / 802.3at / 802.3bt, 48VDC (2 or 4 pairs), 44V–57V
Ethernet Speed	10 / 100 / 1000 Mbps (Gigabit)
Efficiency	80% minimum

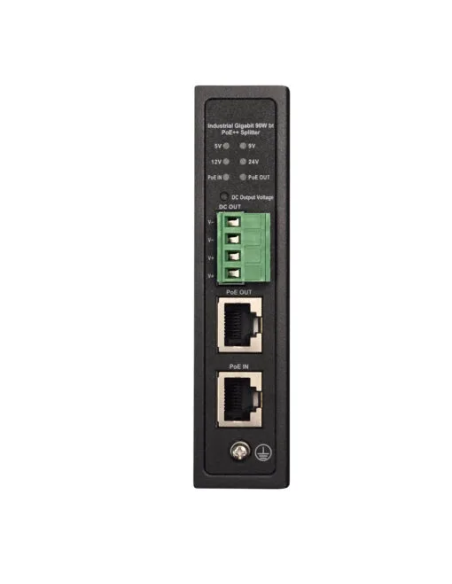

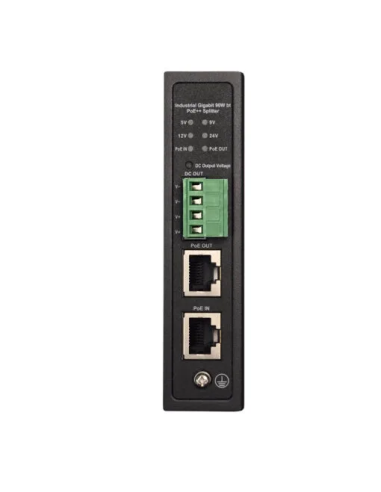

LED Indicators	PoE IN: Steady Green – Power is stable PoE OUT: Steady Green – PoE is delivering power Voltage Indicator LEDs – Shows selected output voltage
EMC Standards	FCC Class B, EN55022 Class B
Operating Temperature	-40 to +75°C (-40 to +167°F)
Operating Humidity	5% – 90% RH, non-condensing
Storage Temperature	-40 to +75°C (-40 to +167°F)
Dimensions (L × W × H)	119 × 85.5 × 28 mm (4.7 × 3.4 × 1.1 in)
Weight	380 g (13.4 oz)
Warranty	3 Years

MPN POE-SPLT-BT-UNI-P
