POE-INJ-1000-WT Tycon GigE 4Pr Pasv PoE Inj/Splitter, Pins 1245V+
POE-INJ-1000-WT Tycon GigE 4Pr Pasv PoE Inj/Splitter, Pins 1245V+

POE-INJ-1000-WT Tycon GigE 4Pr Pasv PoE Inj/Splitter, Pins 1245V+

POE-INJ-1000-WT
In Stock
$41.50
Tax included

POE-INJ-1000-WT

 Gigabit Passive PoE Injector/Splitter with LED Indicator. Injects or splits DC power on all 8 wires. 1245(+) 3678(-). Wire terminal connector. 2.25A. VIN=VOUT. Power Ubiquiti AirFiber and Starlink devices.

- Power Supply Options

MikroTik AC DC Power Adapter 48V 120W

$67.06

Quantity Unit price You Save
5 $40.26 $6.23

Related Products & Accessories



POE-INJ-1000-WT - Tycon GigE 4Pr Pasv PoE Inj/Splitter, Pins 1245V+

Product Features

  • High Power Shielded Design (uses all 4 pairs)
  • 10/100/1000Mb Compatible
  • Removeable Wire Terminal Connector
  • 5VDC to 58VDC Power over Ethernet
  • Power On LED indicator
  • I.T.E. Power Supply, UL Listed


Applications

  • Wireless Equipment
  • Power Ubiquiti airFiber and Starlink Antennas
  • Security Applications
  • HD PTZ Cameras

The POE-INJ-1000-WT(x) are shielded passive power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m.

The diagram below shows how to connect the ethernet pairs (2 need to be swapped):

starlink ethernet pins schema

Power Input
DC
810017120314
POE-INJ-1000-WT
No reviews

Related Products & Accessories

Tycon 36-72VDC IN 24VDC Passive PoE OUT 35W DCDC Converter
In Stock
Power Over Ethernet

Tycon 36-72VDC IN 24VDC Passive PoE OUT 35W DCDC Converter

Tycon Power
TP-DCDC-4824-HP
$106.10
TP-DCDC-4824 24-72VDC IN 24VDC OUT, 30W DC to DC Converter The TP-DCDC-HP Series of DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a 36v to 72V battery system. They have an integrated POE injector to apply the 24VDC to the CAT5 Ethernet cable. They...
TP-SW5G-MULTI Tycon Power Multivolt Gigabit PoE Switch
OUT OF STOCK - Backorders Allowed - Call For Availability
Network Switches

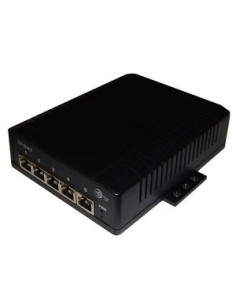

TP-SW5G-MULTI Tycon Power Multivolt Gigabit PoE Switch

Tycon Power
TP-SW5G-MULTI
$342.50
  TP-SW5G-MULTI 12-56V 5 port PoE   TP-SW5G-MULTI: Universal Multiple Voltage (MultiVolt™) 10/100/1000MB PoE Switch. Switch accepts up to 4 different voltages (12-57VDC) so user can power both 48V PoE and 24V PoE devices from the same switch. The port can individually be set to Data Only by disconnecting the voltage input to that specific port. 1A per...
TYCON 18-36V In 56V 50W GigE Pasv PoE DCDC
Last items in stock
Power Over Ethernet

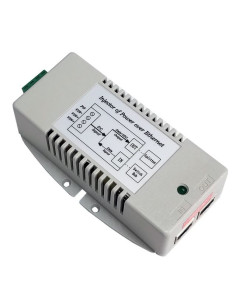

TYCON 18-36V In 56V 50W GigE Pasv PoE DCDC
