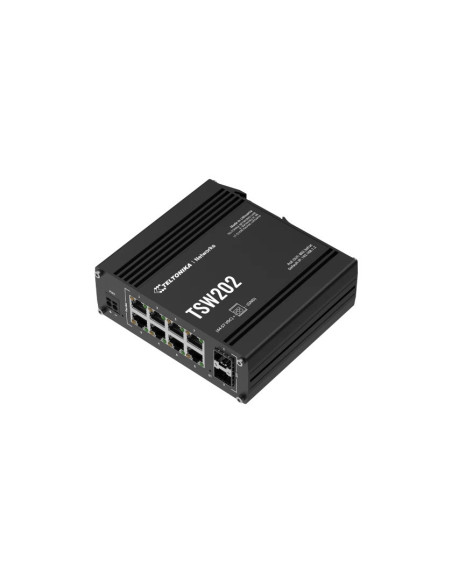

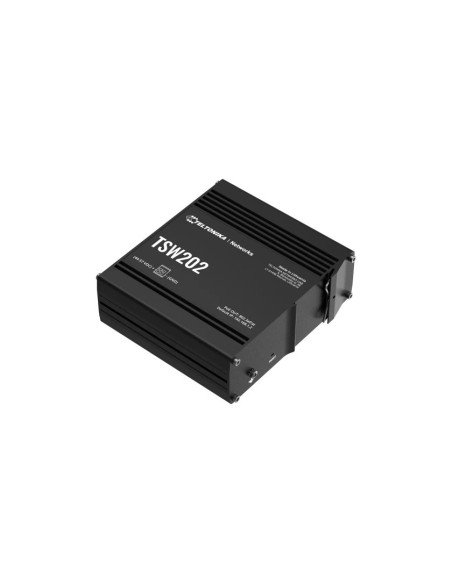

Teltonika TSW202 Industrial L2 Managed POE+ Switch 8xGbE 8xPoE+ 2xSFP ports

TSW202
In Stock
$235.00
Tax included

TSW202

TSW202 is the first-ever Teltonika Networks managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fibre optic communication and 8 Gigabit Ethernet ports providing 30 W of power each.

Note: PSU is not included, select from the drop down menu

Quantity Unit price You Save
5 $227.95 $35.25
10 $223.25 $117.50

Related Products & Accessories



TSW202 - Industrial L2 Managed POE+ Switch 8xGbE 8xPoE+ 2xSFP ports

Product Features:

  • L2 with additional L3 features for enhanced management and control
  • 8 x port PoE+ switch with 2 x SFP ports for fibre optic communication
  • Supports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP
  • Teltonika Networks OS for switches, intuitively designed for infinite configurations
  • Connector: 2-pin industrial DC power socket
  • Input voltage range: 7 – 57 VDC
  • Power consumption Idle: < 3 W / Max: 8 W / PoE Max: 248 W

WARRANTY: 2-years limited warranty

Ethernet

  • ETH

    Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

  • Fibre

    2 x SFP ports

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x

POE OUT

  • PoE ports

    Port 1 - 8

  • PoE standards

    802.3af and 802.3at Alternative B

  • PoE Max Power per Port (at PSE)

    30 W

  • Total PoE Power Budget (at PSE)

    240 W

  • Maximum Ethernet cable length

    100 m

Services

  • EtherNet/IP

    Yes

  • Profinet (class B)

    Yes

  • SNMP V2, V3

    Yes

  • LLDP

    Yes

  • 802.1x

    Yes

Network

  • MRP

    MRP client role, MRP manager role

  • L2 features

    Loop protection, Forwarding table, VLAN, STP/RSTP

  • DHCP

    DHCP server, DHCP client

  • Port Settings

    Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

  • L3 Features

    Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoS

  • QOS

    Port priority, DSCP priority, 802.1p priority, TOS

  • Scheduling method

    SP/WFQ/WRR

  • Bandwidth control

    Rate limiting, storm control

  • Traffic Shaper

    Port-based shaping

Diagnostics

  • Tools

    Cable diagnostic, ping, traceroute, nslookup

System Characteristics

  • RAM

    128MB, DDR3

  • FLASH storage

    16 MB serial flash

Firmware / Configuration

  • WEB UI

    Update FW from file, check FW on server, configuration profiles, configuration backup

  • FOTA

    Update FW

  • RMS

    Update FW/configuration for multiple devices at once

  • Keep settings

    Update FW without losing current configuration

FIRMWARE CUSTOMISATION

  • Operating system

    TSWOS (OpenWrt based Linux OS)

  • Supported languages

    Busybox shell, Lua, C, C++

  • Development tools

    SDK package with build environment provided

Performance Specifications

  • Bandwidth (Non-blocking)

    20 Gbps

  • Forwarding rate

    14.88 Mpps

  • Packet buffer

    512 KB

  • MAC address table size

    8K entries

  • Jumbo frame support

    10000 bytes

Power

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    7 – 57 VDC

  • PoE-out input voltage range

    44 – 57 VDC

  • Power consumption

    Idle: < 3 W / Max: 8 W / PoE Max: 248 W

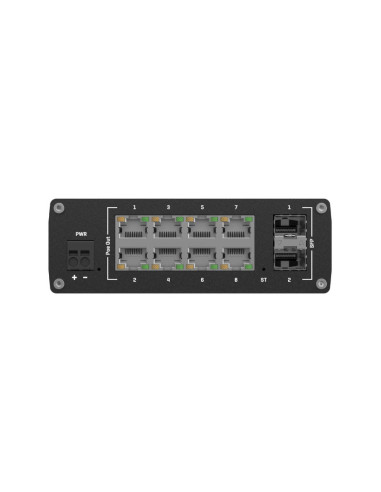

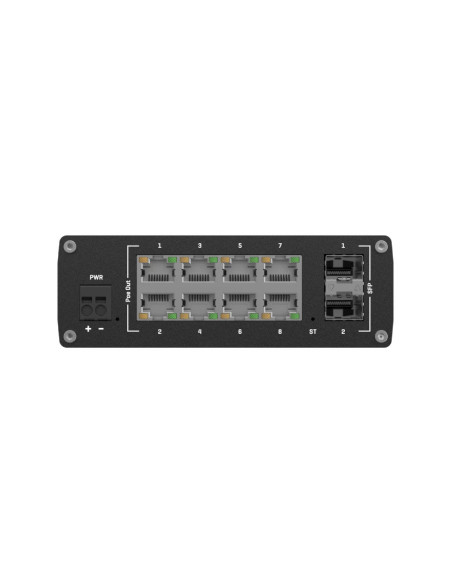

Physical Interfaces

  • Ethernet

    8 x RJ45 ports, 10/100/1000 Mbps

  • Fibre

    2 x SFP ports

  • Status LEDs

    1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

  • Power

    1 x 2-pin industrial DC power socket

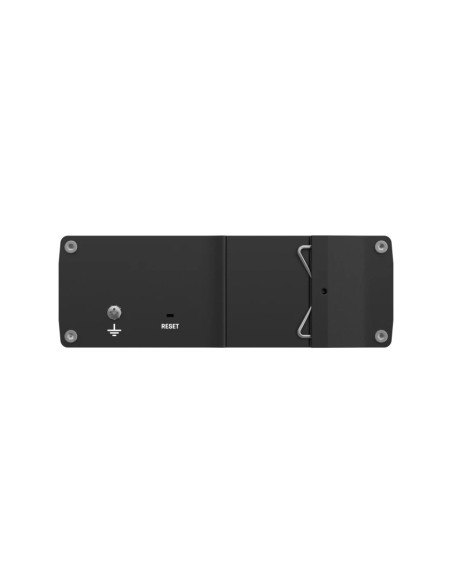

  • Reset

    Software reset button

  • Other


    1 x Grounding screw

Physical Specification

  • Casing material

    Anodized aluminum housing and panels

  • Dimensions (W x H x D)

    132 x 44.2 x 122.2 mm

  • Weight

    610 g

  • Mounting options

    Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

Operating Environment

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

Regulatory & Type Approvals

  • Regulatory

    CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC Emissions & Immunity

  • Standards

    EN 55032:2015 + A11:2020 + A1:2020

    EN 55035:2017 + A11:2020

    EN IEC 61000-3-2: 2019 + A1:2021

    EN 61000-3-3: 2013 + A1:2019 + A2:2021

  • ESD

    EN 61000-4-2:2009

  • Radiated Immunity

    EN IEC 61000-4-3:2020

  • EFT

    EN 61000-4-4:2012

  • Surge Immunity (AC Mains Power Port)

    EN 61000-4-5:2014 + A1:2017

  • CS

    EN 61000-4-6:2014

  • DIP

    EN 61000-4-11:2020

Safety

  • Standards

    CE: EN IEC 62368-1:2020 + A11:2020

    RCM: AS/NZS 62368.1:2022

    CB: IEC 62368-1:2018

Device Type
Network Switch
Device Features
Industrial
Ethernet Ports
8 Eth ports
Type
Managed
Operating Temperature
-40 to 75° C
Speed
10/100/1000 Mbps ports
Feature
RMS Compatible
power socket
2-pin
4779051840281
TSW202
