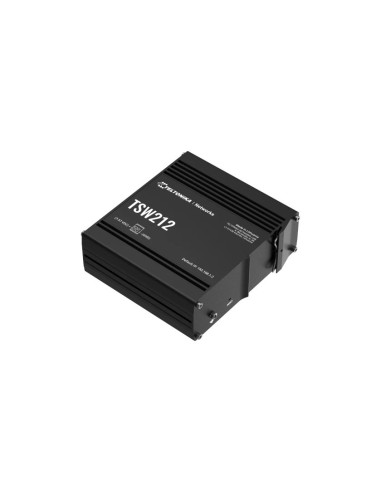

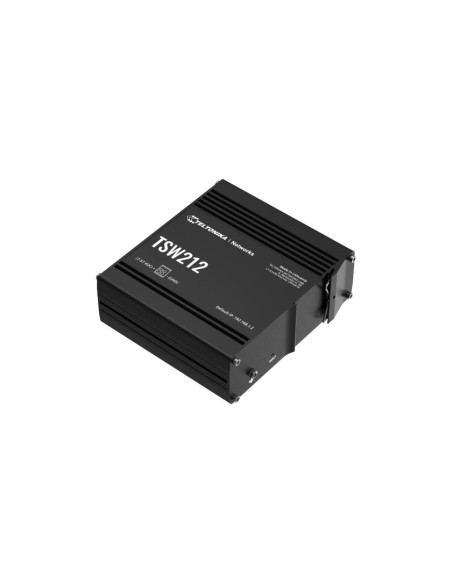

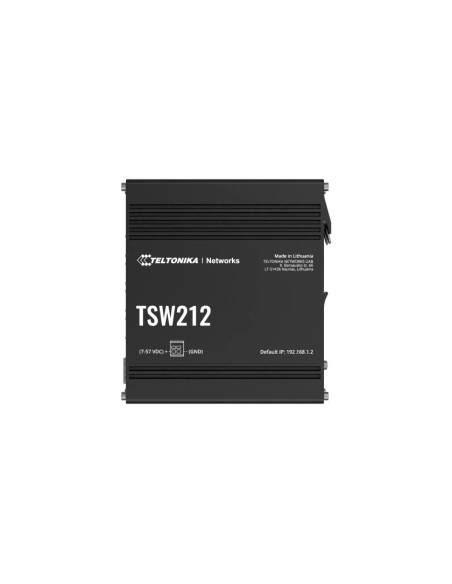

Teltonika TSW212 Industrial L2 Managed Switch 8xGbE + 2xSFP ports

TSW212 - Teltonika Industrial L2 Managed Switch 8xGbE + 2xSFP ports

Product Features:

• L2 with additional L3 features for advanced management capabilities
• Supports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP
• 8 x Gigabit Ethernet ports and 2 x SFP ports for fibre optic communication
• Teltonika Networks OS for switches, intuitively designed for infinite configurations
• Connector: 2-pin industrial DC power socket
• Input voltage range: 7 – 57 VDC
• Power consumption Idle: < 2.5 W / Max: 6 W

WARRANTY: 2-years limited warranty

ETHERNET

• ETH

  Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

• Fibre

  2 x SFP ports

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x

SERVICES

• EtherNet/IP

  Yes

• Profinet (class B)

  Yes

• SNMP V2, V3

  Yes

• LLDP

  Yes

• 802.1x

  Yes

NETWORK

• MRP

  MRP client role, MRP manager role

• L2 features

  Loop protection, Forwarding table, VLAN, STP/RSTP

• DHCP

  DHCP server, DHCP client

• Port Settings

  Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring

• L3 Features

  Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

• QOS

  Port priority, DSCP priority, 802.1p priority, TOS

• Scheduling method

  SP/WFQ/WRR

• Bandwidth control

  Rate limiting, storm control

• Traffic Shaper

  Port-based shaping

DIAGNOSTICS

• Tools

  Cable diagnostic, ping, traceroute, nslookup

SYSTEM CHARACTERISTICS

• RAM

  128MB, DDR3

• FLASH storage

  16 MB serial flash

FIRMWARE / CONFIGURATION

• WEB UI

  Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

  Update FW

• RMS

  Update FW/configuration for multiple devices at once

• Keep settings

  Update FW without losing current configuration

FIRMWARE CUSTOMISATION

• Operating system

  TSWOS (OpenWrt based Linux OS)

• Supported languages

  Busybox shell, Lua, C, C++

• Development tools

  SDK package with build environment provided

PERFORMANCE SPECIFICATIONS

• Bandwidth (Non-blocking)

  20 Gbps

• Forwarding rate

  14.88 Mpps

• Packet buffer

  512 KB

• MAC address table size

  8K entries

• Jumbo frame support

  10000 bytes

POWER

• Connector

  2-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC

• Power consumption

  Idle: < 2.5 W / Max: 6 W

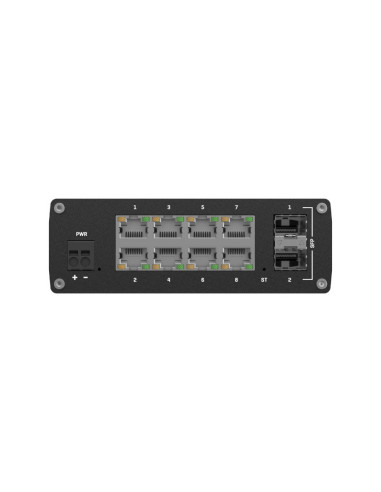

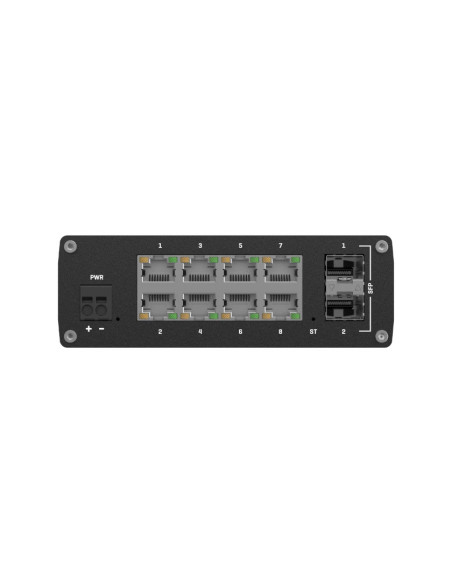

PHYSICAL INTERFACES

• Ethernet

  8 x RJ45 ports, 10/100/1000 Mbps

• Fibre

  2 x SFP ports

• Status LEDs

  1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

• Power

  1 x 2-pin industrial DC power socket

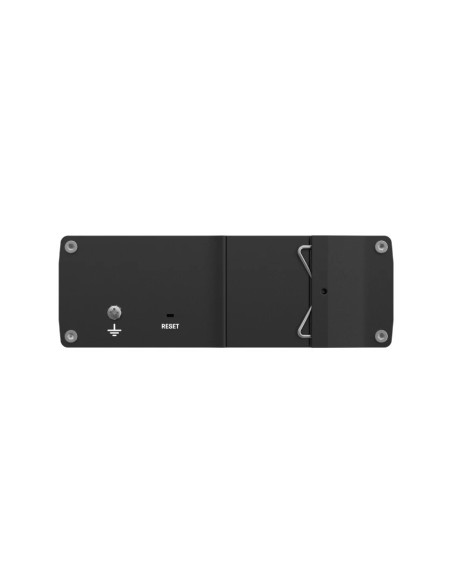

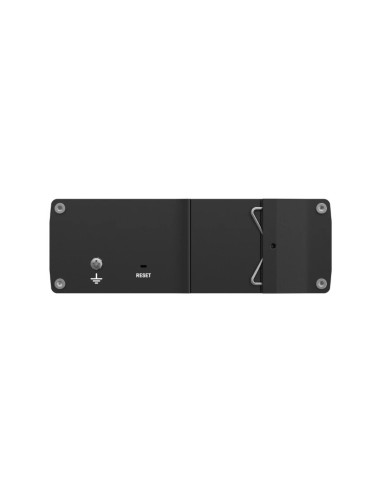

• Reset

  Software reset button

• Other

  1 x Grounding screw

PHYSICAL SPECIFICATION

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  132 x 44.2 x 122.2 mm

• Weight

  615 g

• Mounting options

  Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  10% to 90% non-condensing

• Ingress Protection Rating

  IP30

REGULATORY & TYPE APPROVALS

• Regulatory

  CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC EMISSIONS & IMMUNITY

• Standards

  EN 55032:2015 + A11:2020 + A1:2020

  EN 55035:2017 + A11:2020

  EN IEC 61000-3-2: 2019 + A1:2021

  EN 61000-3-3: 2013 + A1:2019 + A2:2021

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN IEC 61000-4-3:2020

• EFT

  EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014 + A1:2017

• CS

  EN 61000-4-6:2014

• DIP

  EN 61000-4-11:2020

SAFETY

• Standards

  CE: EN IEC 62368-1:2020 + A11:2020

  RCM: AS/NZS 62368.1:2022

  CB: IEC 62368-1:2018

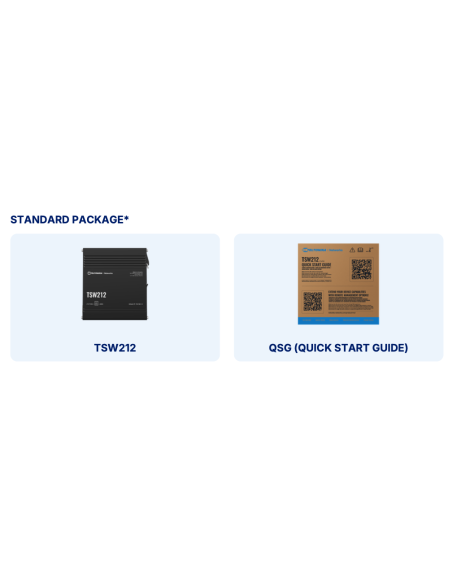

Standard package contains:
