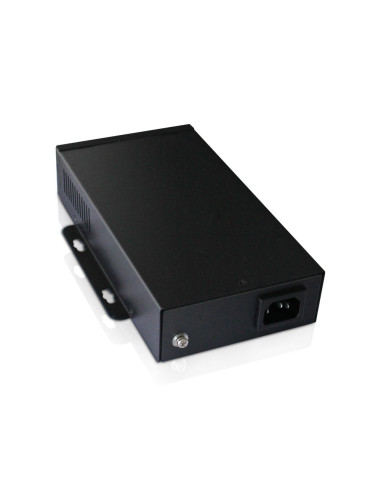

PT-PSE109GBRO-A Procet Industrial 95W PoE Injector
PT-PSE109GBRO-A Procet Industrial 95W PoE Injector
PT-PSE109GBRO-A Procet Industrial 95W PoE Injector
PT-PSE109GBRO-A Procet Industrial 95W PoE Injector

PT-PSE109GBRO-A Procet Industrial 95W PoE Injector

PT-PSE109GBRO-A
*** Out of stock ATM, Available On Backorder ***
$228.86
Tax included

PT-PSE109GBRO-A

1. Procet Industrial 95W PoE injector

2. Input 100-240Vac

3. Output 55Vdc 1750mA

4. Surge protection 6Kv

5. Working temperature at -40℃ to 65℃

6. Gigabit data rates



PT-PSE109GBRO-A

1. PT-PSE109GBRO-A Waterproof POE is a single port midspan Injector with 4 Pair PoE up to 95 watts of power at 55 VDC at 1.75 amp.

2. Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as Wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks, and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals, It supports 10/100 Mbps of data rates.  It has a detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected.

3. Enclosed in an IP40 fire retardant metal case. It operates with a wide input voltage of 100-240 Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

Specifications

Parameter Description
Key Features Industrial PoE can be outdoor use by covered with waterproof case
Extend temperature from -40℃ to 65℃
Lighting Protection both at PoE and AC port
Gigabit data rates
IP20 high-impact metal enclosure
AC power cord with optional US or EU plug or other standard plug
Diagnostic LEDs
Part Number PT-PSE109GBRO-A
Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1 Earth port *1
Regulatory Compliance IEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates 10/100/1000 Mbps
Output Pin Assignment and Polarity:
4/5 (+), 7/8 (–) & 3/6(+), 1/2(-)
Output Power Voltage: 55Vdc
Output Current: 1.75A
User Port Power: 95W Guaranteen
Input AC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
AC Input Current: 2.0A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working Environment Operating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge Protection Line-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV
Mechanical Characteristics Case: Metal
Color: Black
Mounting: Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*2
Size: 214mmX 134mmX 41mm
Weight:
1070g(2.36lb)
LED Indicator Power Indicator : Green
PoE Load Indicator : Green
Warranty 2 year
Safety Approvals cUL/UL, CE, CB, FCC, KCC, RCM, NOM



Device Features
Industrial
Power Input
AC
Power Over Ethernet
48V 15W 802.3af
48V 30W 802.3at
48V 60W 802.3at
802.3at PoE
No reviews

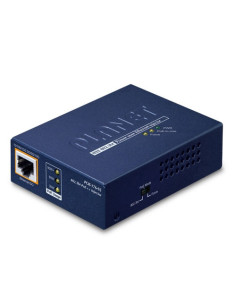

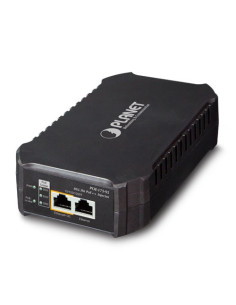

Related Products & Accessories
