Procet PT-PTC-D-BT BT PoE Adaptor Type C 60W

PT-PTC-D-BT
In Stock
$104.56
Tax included

PT-PTC-D-BT

PT-PTC-D-BT is a network power adapter designed based on the IEEE802.3 bt standard. The output is a standard Type-C interface, which can provide 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20 V/3A power supply and 100Mbps Internet data transfer.


PT-PTC-D-BT is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use. The input and output of the device do not exceed the safe voltage of 57 V, and there is no need for electric shock protection. The product has passed the EU CE certification.

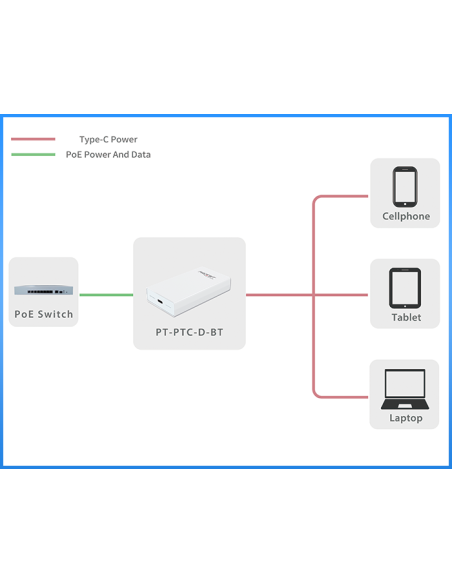

The device needs to be used in a wired network environment that supports IEEE802.3bt, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply and stable network connection to low-power mobile devices such as mobile phones, game consoles, and tablet computers.



PT-PTC-D-BT - Procet BT PoE Adaptor Type C 60W

Specifications

Input Input 44-57V DC
PoE Compliance EEE802.3 bt
Pin Assignment 4/5(+),7/8(-) or 3/6(+),1/2() or 3/6(-),1/2(+)
Output Output 5V 2.0A
Data Speed 100Mbps
Working
Environment
Operating Temperature -20°C to 40°C
Operating Humidity 20%-80%, no condensation
Operating Altitude Below 2000m
Storage Temperature -20°C-70°C
Storage Humidity 10%-90%, no condensation
Internet Protocol IEEE802.3u
Network Transmission BASE-TX Cat5 or above UTP(≤100m)
Certificate CE
IP Class IP40
Dimensions 100mm X 60mm X 22mm
LED Green Light On: Normal connection
Light Off: Not connected or
failed to connect
Blinking: Data transfer
Yellow Light On: Normal power supply
Light Off: Abnormal power supply
EMC FCC FCC CFR47 Part 15
CE EN 55032-2015
EN 55035-2017

4712331734070
PT-PTC-D-BT
