AF-5V10W

This device provides a low-cost solution for delivering power to a Lightning device over 328ft of network cable.

This splitter allows power to be carried on CAT-5e or CAT-6 network cables using either 802.3af standard or 48 volts passive PoE. 802.3at switches can also be used – but only 12 watts will be requested. This device is power only – no data is supported.

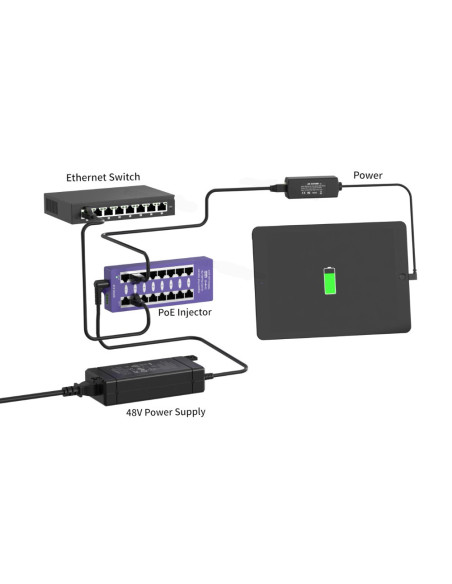

Intended for use with any 802.3af or 802.3at PoE switch – this active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost-effective power solution.

The PoE switch supplies 48 or 56 volts DC at the source location. The higher DC voltage means the current is reduced by a factor of 9 compared to 5 volts, and then carried with 90% less loss over the Ethernet cable from the source, the 5v converter at the remote end allows you to extend the charge distance for this application up to 328ft or 100 meters.
