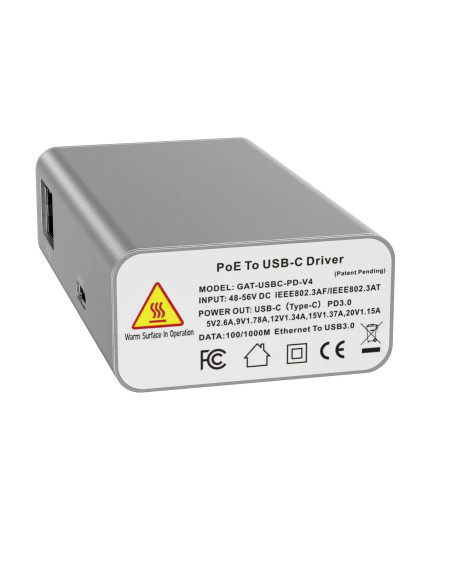

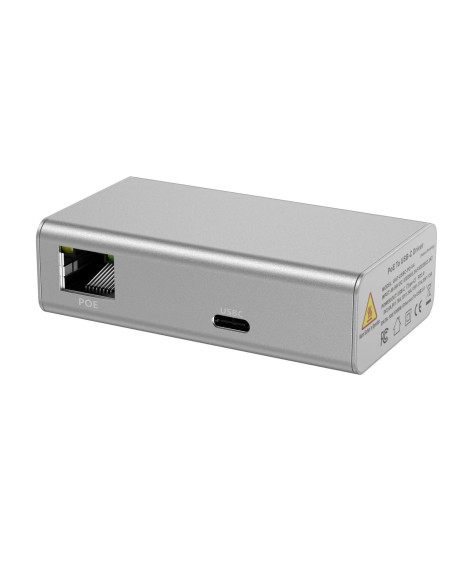

GAT-USBC-PD-V4 PoE Converter Power + Gigabit Wired data for Apple iPad Pro w Ethernet Cable PoE Adapter Type-C Connector Output

GAT-USBC-PD-V4 - POE Converter Power and Gigabit Wired data for Apple iPad Pro with an Ethernet Cable Using a PoE Adapter Type-C Connector Output

PRODUCT SPECIFICATIONS

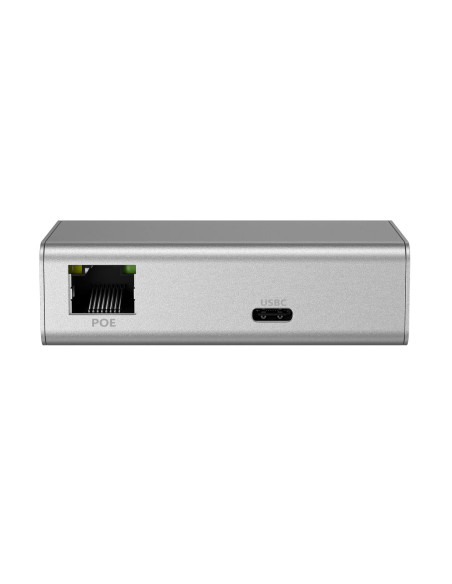

​Connector Types: USB-C (Female) 1x RJ45 Input (Female) 1

Data Rate: Input 10/100/100mbps, Output 10/100/100mbps

Input Voltage Range: 48-56 Volts (IEEE 802.3at Compliant)

LEDs Per Port: Green (POE) / Yellow (USB-C)

Max Power Output: 23 Watts

Operating Temperature: -10 to 60C

Operating Humidity: 5% to 90%

Output Voltage: 5V,2.6A; 9V,1.78A; 12V,1.34A; 15V,1.37A; 20V,1.15A

POE Method: IEEE 802.3at / PoE+ / Passive 30 watt

POE Mode/Pinout: Mode A (1,2 3,6) / Mode B (4,5 7,8)

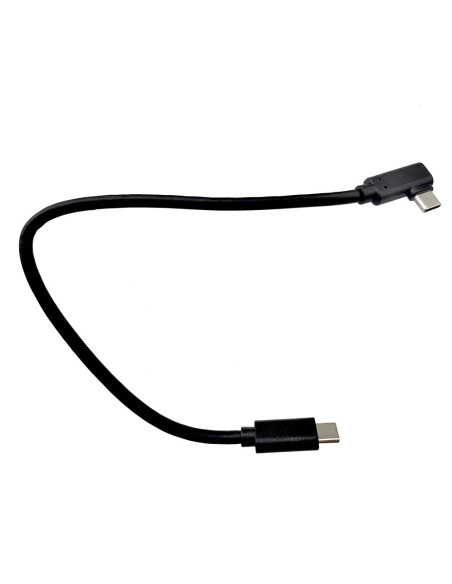

* USB-C to USB-C Right Angle Bi-directional cable for your option



Compatibility

For Apple iPad Pro, Air, Mini, and 10.2 -

Designed specifically for USB-C iPads

For Microsoft Surface Go

Works with Microsoft Surface Go, Google Pixel & Samsung Galaxy Tab Active 2

*Samsung Tab compatibility may vary. 2020 Tab A7 SMT500 models no longer have the ability to do concurrent power and data connections, though SMT510 and SMT515 still do have compatibility. Please check your specific model for compatibility with USB-C data transfer.
