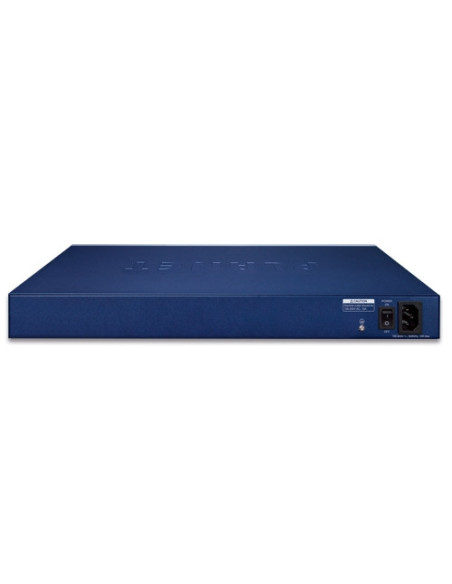

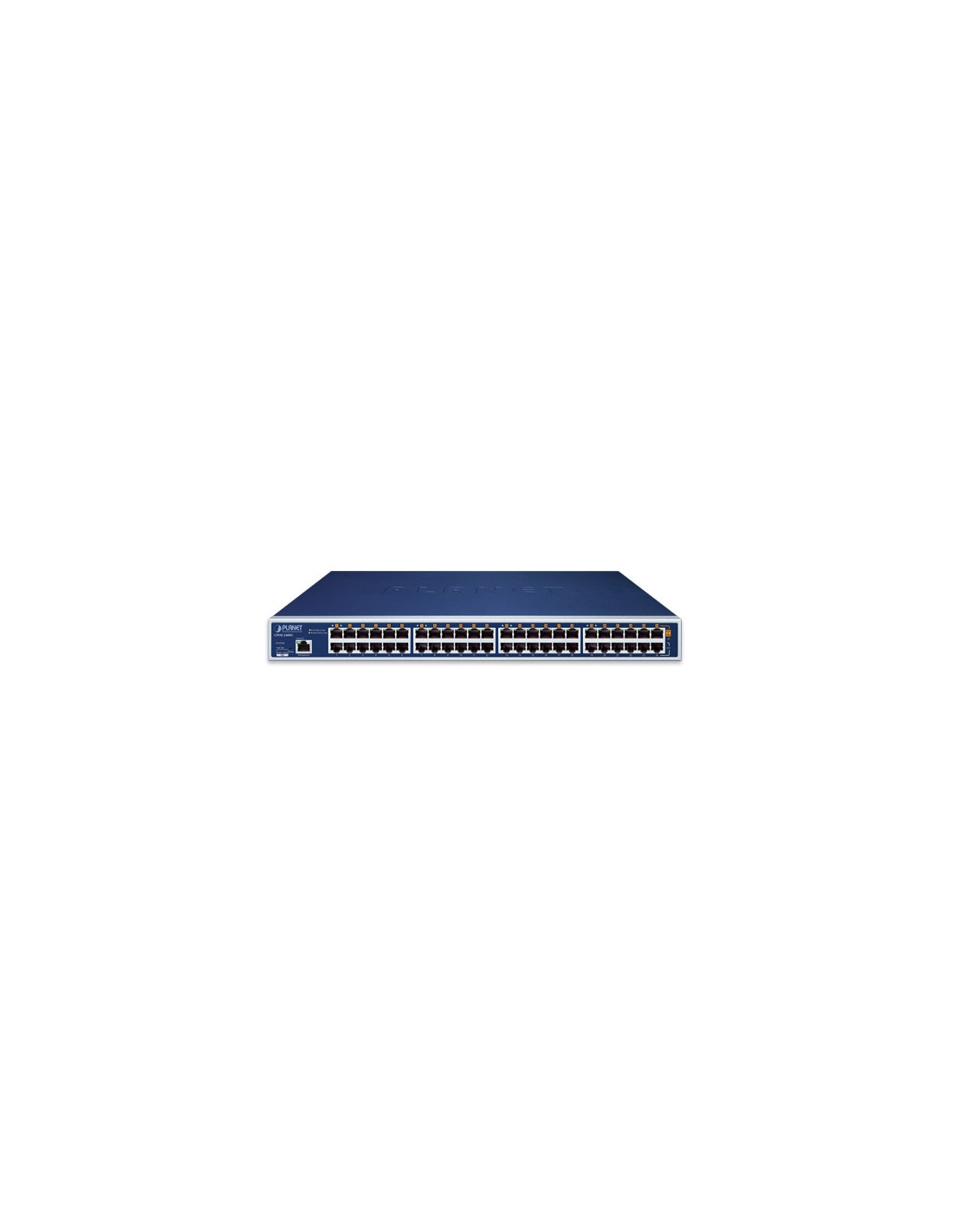

Planet UPOE-2400G 24-Port Gigabit 802.3bt PoE++ Managed Injector Hub (800 watts)

UPOE-2400G
Last items in stock
$1,606.00
Tax included

UPOE-2400G

PLANET’s newly-improved UPOE-2400G, a high-density, rack-mountable managed and quick PoE++ solution, is designed to perfectly upgrade an existing network infrastructure to IEEE 802.3bt Power over Ethernet Plus Plus network system without replacing the existing Ethernet Switch. The UPOE-2400G’ management functions have been enhanced to include TLSv1.2 and TLSv1.3 protocols to improve cybersecurity, PLANET NMS system, PLANET CloudViewer app, PLANET DDNS/Easy DDNS service, and more.

Cyber Security NMS 802.3bt PoE++ 95W PoE++ PoE Schedule Smart Fan

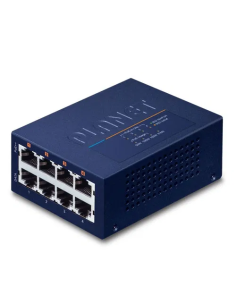

UPOE-800G - PLANET 8-Port Gigabit 802.3bt PoE++ Managed Injector Hub (400 watts)





A Perfect Managed PoE++ Injector Hub with Full Power Budget

The UPOE-2400G, a high-density, rack-mountable managed IEEE 802.3bt PoE++ injector hub, features PLANET intelligent PoE functions through web user interface for remote management. It provides 24 10/100/1000BASE-T Ethernet ports featuring 802.3bt type-4 PoE++ injector with a total PoE budget of 800 watts. Each PoE port can deliver up to 95-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

The UPOE-2400G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and effective Power over Ethernet network solution for small businesses and enterprises.



 802.3bt PoE++ 95-watt Power over 4-pair UTP Solution

As the UPOE-2400G adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings





802.3bt PoE++ and Advanced PoE Power Output Mode Management

To meet the demand of various powered devices consuming stable PoE power, the UPOE-2400G supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, and  4-pair legacy and force modes to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

  • 95W 802.3bt PoE++ Power Output Mode
  • 36W End-span 802.3at PoE+ Power Output Mode
  • 36W Mid-span 802.3at PoE+ Power Output Mode



PoE Watts
PoE Operation Mode
Power Output Mode
95W
802.3bt PoE++
(Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
36W
End-span 802.3at PoE
(Pins 1, 2, 3, 6)
36W
Mid-span 802.3at PoE
(Pins 4, 5, 7, 8)





Quick and Easy 802.3bt/at PoE Network Deployment

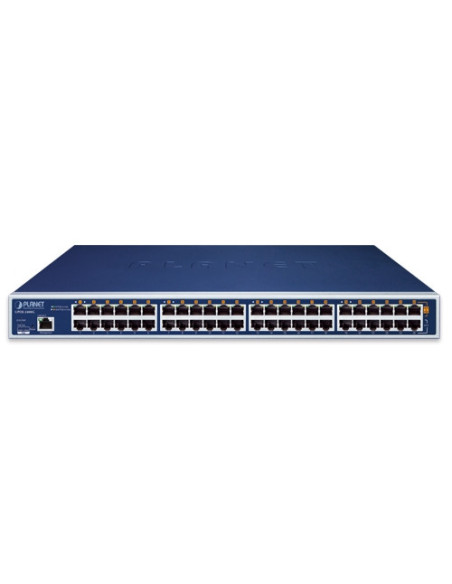

The UPOE-2400G is installed between a regular Ethernet Switch and the PDs. There are totally 48 RJ45 STP ports on the front panel of the UPOE-2400G, of which the 24 ports are on the lower stack functioned as "Data input" while the other 24 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.

With data and Power over Ethernet from one unit, the UPOE-2400G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.



Built-in Unique PoE Functions for Powered Device Management

As it is the Managed PoE++ Injector Hub for surveillance, wireless and VoIP networks, the UPOE-2400G features the following special PoE management functions:

  • PoE schedule
  • PD alive check
  • Scheduled power recycling
  • PoE usage monitoring



Intelligent Powered Device Alive Check

The UPOE-2400G can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the UPOE-2400G will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.





PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the UPOE-2400G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.



Scheduled Power Rebooting

The UPOE-2400G can be scheduled to reboot at a specified time like every minute, every hour, every day to reduce the chance of PD device crash resulting from buffer overflow.



PoE Usage Monitoring

Via the power usage chart in the web management interface, the UPOE-2400G enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.



High Power Budget for PoE Extension

With up to 95-watt PoE output capability, the UPOE-2400G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET 802.3bt PoE++ Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.



Smart Fan Design for Silent Operation

The UPOE-2400G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability, with low speed and high speed smart fan status display on web interface. The UPOE-2400G is able to operate reliably, stably and quietly in any environment without affecting its performance.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the UPOE-2400G management in a mission-critical network virtually needs no effort and cost to install. Both TLSv1.2 and TLSv1.3 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before



User-friendly Web Management Interface

To efficiently manage the PDs, the UPOE-2400G provides simple Web management interface in which administrators can control the system and PoE functions for PDs. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.



Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform



Gigabit PoE++ Network Deployment

The UPOE-2400G provides the easiest way to power your Ethernet devices such as IP camera on the ceiling and the wireless access point installed on the top of the building. With 24 10/100/1000BASE-T Gigabit Ethernet ports, the UPOE-2400G supports full 54V DC power for any remote IEEE 802.3at/IEEE 802.3bt powered device (PD).

To control the power system of your networking devices, the UPOE-2400G can directly co-work with network devices such as PoE IP phone to build VoIP telephony network in the office. The UPOE-2400G can be directly connected to any third-party IEEE 802.3bt and 802.3at PoE compliant devices installed within 100 meters. Furthermore, the UPOE-2400G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.

Hardware
Interface Management Port:1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
“Data”Input Ports:24 x RJ45
“Data + Power” Output Ports:24 x RJ45
Data Rate 10/100/1000Mbps
Power Requirements 100-240V AC, 50/60 Hz, 15A
Power Consumption 968 watts/3302 BTU
Ventilation Smart Fan x 3
Dimensions (W x D x H) 440 x 300 x 44.5mm
Weight 5.4kg
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED System: SYS PWR x 1 (Green)
PoE Failure x 1 (Red)
Fan Failure x 2 (Red)
Management port x 1: LNK/ACT (Green),
Per PoE Port: 802.3bt/UPoE PoE-in-use x 1 (Green)
802.3at/af PoE-in-use x1 (Amber)
Network Cable 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Power over Ethernet
PoE Standard 802.3bt PoE++ PSE
Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Mode 802.3bt
End-span
Mid-span
PoE Power Output Per port 54V DC
 802.3bt mode: maximum 95 watts
 End-span mode: maximum 36 watts
 Mid-span mode: maximum 36 watts
Power Pin Assignment 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE PD Type Standard
Legacy
Force
PoE Power Budget 800 watts
Number of 95W 802.3bt Type-4 PDs 8
Number of 60W 802.3bt Type-3 PDs 13
Number of 802.3at PDs 22
PoE Management Power limit by consumption and classification
PoE function enable/disable
Per port PoE function enable/disable
Per port PoE power schedule
Power feeding priority
PD alive check
PD classification detection
Current per port usage and status
Total power consumption
Security
Firewall SPI Firewall Protection
Filtering MAC Filtering
Certificates System CA Certificate for HTTPS
Management Functions
Management Interface HTTP/HTTPs Web user interface
Secure Management Interface TLSv1.2, TLSv1.3
Management Feature IPv4 and IPv6 dual stack management
Web interface for remote management
PLANET DDNS and Easy DDNS
Supports Network Time Protocol (NTP)
System Maintenance
 Firmware upload via HTTP
 Configuration upload/download via HTTP
 Reboot button for system reboot
 Reset button for system reset to factory default
PLANET Smart Discovery utility
PLANET NMS system and CloudViewer for deployment management
Scheduled System Power RebootingNetwork Diagnostic
 ICMPv6/ICMPv4 Remote Ping
 Trace Route
SNMP Management SNMP v1, v2c and v3 for system status monitoring
SNMP trap for alarm notification of events
Event Management Local system event log
Remote syslog
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
RFC 768: UDP
RFC 791: IP
RFC 2068 HTTP
RFC 1157: SNMP v1
RFC 1902: SNMP v2c
RFC 2273: SNMPv3
RFC 5424: Syslog
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)

Device Type
Power Over Ethernet
Device Features
TAA Compliant
Power Input
AC
PoE Power Budget
800W
Ports
24 Ports 10/100/1000 ports
PoE Standard
802.3bt (Type 4)
Operating Temperature
0 to 50°C
