Planet UPOE-1600G 16-Port Gigabit 802.3bt PoE++ Managed Injector Hub (600 watts)

UPOE-1600G
Last items in stock
$1,122.00
Tax included

UPOE-1600G

Ready to Deploy Next Generation IEEE 802.3bt PoE++ Standard

PLANET’s newly-improved UPOE-1600G, a high-density, rack-mountable managed 802.3bt PoE++ Managed Injector Hub, features eight 10/100/1000BASE-T 90-watt 802.3bt type-4 PoE++ injector ports and eight 10/100/1000BASE-T 60-watt 802.3bt type-3 PoE++ injector ports with PLANET intelligent PoE functions through web user interface for remote management. With a total PoE budget of 600 watts, it delivers ultra PoE power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

95W PoE++ 10M/100M/1000M Alive Check PoE Schedule WEB Management



UPOE-800G - PLANET 8-Port Gigabit 802.3bt PoE++ Managed Injector Hub (400 watts)

The UPOE-1600G provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches. It also enables centralization of the power supply and optimizes the installation and power management of remote network devices.

802.3bt PoE++ – 60~95-watt Power over 4-pair UTP Solution

As the UPOE-1600G adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings

Advanced PoE Power Output Mode Management

To meet the demand of various powered devices consuming stable PoE power, the UPOE-1600G supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ mode, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

PoE Watts PoE Operation Mode Power Output Mode
95W UPoE/PoH   (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
90W 802.3bt PoE++   (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
72W UPoE/PoH  (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
60W 802.3bt PoE++  (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
60W Force Power  (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
36W End-span PoE  (Pins 1, 2, 3, 6)
36W Mid-span PoE   (Pins 4, 5, 7, 8)



Quick and Easy 802.3bt/at PoE Network Deployment

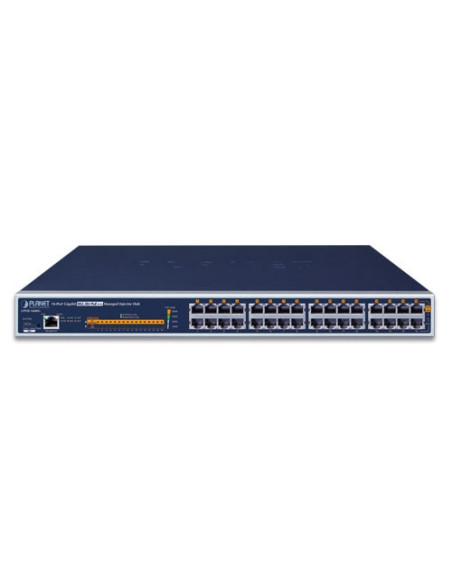

The UPOE-1600G is installed between a regular Ethernet Switch and the PDs. There are totally 32 RJ45 STP ports on the front panel of the UPOE-1600G, of which the 16 ports are on the lower stack functioned as "Data input" while the other 16 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.

With data and Power over Ethernet from one unit, the UPOE-1600G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.



Friendly Web Management Interface

To efficiently manage the powered devices, the UPOE-1600G provides remote Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.

Built-in Unique PoE Functions for Powered Device Management

As it is the managed PoE++ Injector Hub for VoIP, wireless and surveillance networks, the UPOE-1600G features the following special PoE management functions:

  • PoE schedule
  • PD alive check
  • Scheduled power recycling
  • BT, UPOE, end-span, mid-span or force mode selectable in PoE Power Output Mode
  • PoE usage monitoring
  • Over temperature protection



Intelligent Powered Device Alive Check

PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The UPOE-1600G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the UPOE-1600G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

PoE Schedule for Energy Savings

Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the UPOE-1600G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

Scheduled Power Recycling

The UPOE-1600G allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

Intelligent LED Indicator for Real-time PoE Usage

The UPOE-1600G helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the UPOE-1600G has four green LEDs indicating 150W, 300W, 450W and 600W of PoE power usage.

PoE Usage Monitoring

Via the power usage chart in the web management interface, the UPOE-1600G enables the administrator to monitor the status of the power usage of the connected PDs in real time.



High Power Budget for PoE Extension

With up to 95-watt PoE output capability, the UPOE-1600G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.



Smart Fan Design for Silent Operation

The UPOE-1600G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the 802.3bt PoE++ Managed Injector Hub for optimal power output capability. The UPOE-1600G is able to operate reliably, stably and quietly in any environment without affecting its performance.

Hardware
Interface “Data” Input Ports: 16 x RJ45
“Data + Power” Output Ports: 16 x RJ45
Management Port:1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
Data Rate 10/100/1000Mbps
LED System:
 SYS PWR x 1 (Green)
 PoE Failure x 1 (Red)
 Fan Failure x 2 (Red)
Management port x 2:
 1000 (Green)
 10/100(Orange)
Per PoE Port:
 802.3bt/UPoE PoE-in-use x 1 (Green)
 802.3at PoE-in-use x1 (Orange)
PoE Power Usage LED x4 (Green)
Power Requirements 100-240V AC, 50/60 Hz, 8A
Power Consumption 800 watts (max.)/2729BTU
Ventilation Fan x 3
Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U height
Enclosure Metal
Weight 4.8kg
Power over Ethernet
PoE Standard 802.3bt PoE++ PSE
Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Type ■ 802.3bt
■ UPoE
■ End-span
■ Mid-span
■ Force
PoE Power Output Per port 52V DC
■ 802.3bt mode, Port-1 to Port-8: maximum 90 watts
■ 802.3bt mode, Port-9 to Port-16: maximum 60 watts
■ UPoE mode, Port-1 to Port-8: maximum 95 watts
■ UPoE-mode, Port-9 to Port-16: maximum 72 watts
■ End-span mode: maximum 36 watts
■ Mid-span mode: maximum 36 watts
Power Pin Assignment ■ 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
■ UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
■ End-span: 1/2(-), 3/6(+)
■ Mid-span: 4/5(+), 7/8(-)
PoE Power Budget 600 watts (max.)
Number of 90W 802.3bt Type-4 PDs 6
Number of 60W 802.3bt Type-3 PDs 10
Number of 802.3at PDs 16
Management
Management Interface Web, PLANET Smart Discovery Lite
Management Feature Setup of system/management functions
Web firmware upgrade
SNMP trap for alarm notification of events
PoE Management Power limit by consumption
PoE admin mode
Per port power schedule
Per port power enable/disable
Per Port PoE operation mode selection
Power feeding priority
Over temperature protection
Current per port usage and status
Total power consumption
PD alive check
Scheduled power recycling
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
RFC 768: UDP
RFC 791: IP
RFC 2068 HTTP
RFC 1157: SNMP v1
RFC 1902: SNMP v2c
RFC 2273: SNMPv3
RFC 5424: Syslog
Network Cable 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Device Type
Power Over Ethernet
Device Features
TAA Compliant
Power Input
AC
PoE Power Budget
600W
Ports
16 Ports 10/100/1000 ports
PoE Standard
802.3bt (Type 4)
Operating Temperature
0 to 50°C
