PLANET UPOE-400 4-Port Multi-Gigabit 802.3bt PoE++ Injector Hub (160W)

UPOE-400
Last items in stock
$357.50
Tax included

UPOE-400

The UPOE-400 4-Port Multi-Gigabit 802.3bt PoE++ Injector Hub features four 10/100/1G/2.5G/5GBASE-T 90W 802.3bt type-4 PoE++ injector ports.

• Ports: 4 10/100/1000/2500/5000 ports
• Standards: 802.3bt (Type 4)
• PoE Power Budget: 160W

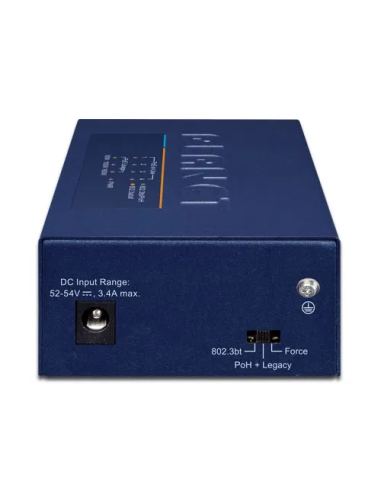

• PoE Modes:

  •     802.3bt: 90W PoE Output
  •     PoH + Legacy: 95W PoE Output
  •     Force: 60W PoE Output

• Operating Temperature: 0 to 50°C
• TAA Compliant



UPOE-400 - PLANET 4-Port Multi-Gigabit 802.3bt PoE++ Injector Hub (160W)

4-Port Injector Hub


Compact and Robust 802.3bt PoE++ Network Solution
PLANET UPOE-400 4-Port Multi-Gigabit 802.3bt PoE++ Injector Hub features four 10/100/1G/2.5G/5GBASE-T 90-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 160 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

The UPOE-400 provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.

802.3bt PoE++ Meets High Power Demands of Powered Devices
As the UPOE-400 adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 90 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant PD. It possesses triple amount of power capacity, when compared with that of the conventional 802.3at PoE+. It is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

• PoE PTZ speed dome cameras
• Network devices
• Thin clients
• AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
• Remote digital signage displays
• PoE lightings

Quick and Easy 802.3bt/at PoE Network Deployment

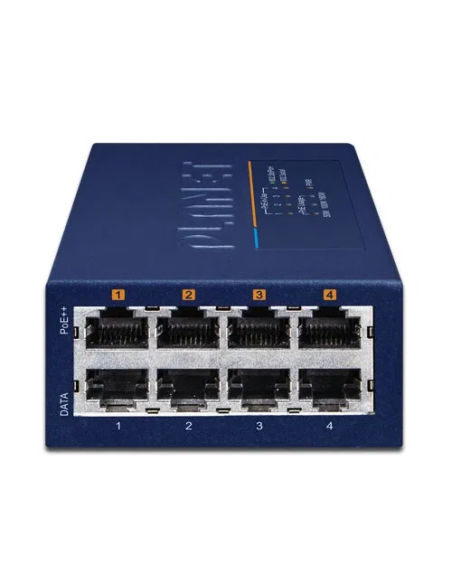

The UPOE-400 is installed between a regular Ethernet Switch and the PDs. Four ports are network (Ethernet) ports for data input while the other four ports are PoE++ ports for data and power output. Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions. With data and Power over Ethernet from one unit, the UPOE-400 can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

UPOE-400 Application Diagram

Intelligent LED Indicator for Power Input and Real-time PoE Usage

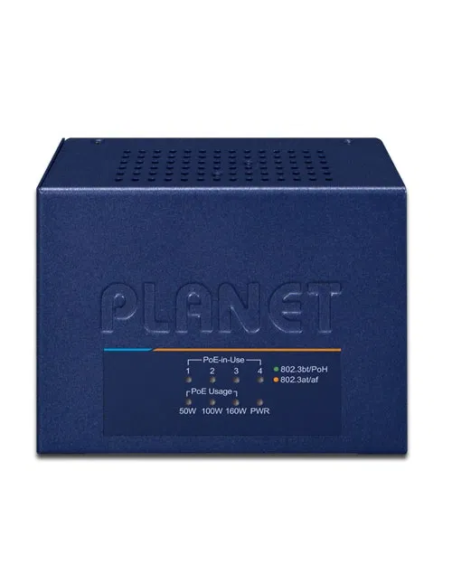

The UPOE-400 helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. The “Power LED” allows user to know the status of DC power input. The “PoE Usage” displayed on the front panel of the UPOE-400 has three amber LED indicators of different power usages indicating 50W, 100W and 160W. Via the power usage LED, the UPOE-400 enables the administrator to monitor the status of the power usage of the connected PDs in real time.

UPOE-400 PoE LED Indicator

High Power Budget for PoE Extension
With up to 90-watt PoE output capability, the UPOE-400 can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over a distance of more than 100 meters.

UPOE-400 802.3bt PoE++ High Power Extension

Device Type
Power Over Ethernet
Power Input
DC
Device Features
Industrial
POE Ports
4
Power Over Ethernet
802.3bt PoE, 802.3at PoE
Ethernet Ports
4
Environment Temperature
0℃~50℃
No reviews

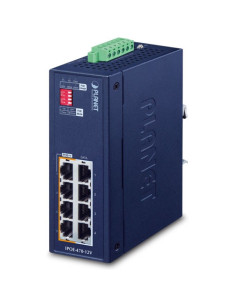

PLANET IPOE-470-12V

Hardware Specifications
Copper Ports 4-pair 10/100/1000BASE-T RJ45
■ Data input port 1 to Port 4
■ Data + PoE output port 1 to Port 4
Connector Removable 6-pin terminal block
Pins 1 and 2 for Power 1
Pins 5 and 6 for Power 2
Pins 4 and 4 for fault alarm
Data Rate 10/100/1000Mbps
Power Requirements IPOE-470: 48~54V DC, redundant power with reverse polarity protection
IPOE-470-12V: 12~54V DC, redundant power with reverse polarity protection
Power Requirements (Ethernet Full Loading) IPOE-470:
System ON without loading
 48V DC: 1.92 watts/6.6BTU
 54V DC: 2.16 watts/7.4BTU
Full loading with PoE
 48V DC: 241 watts/822.3BTU
 54V DC: 244 watts/832.6BTU

IPOE-470-12V:
System ON without loading
 12V DC: 2.52 watts/8.6BTU
 24V DC: 3.6 watts/12.3BTU
 48V DC: 3.36 watts/11.5BTU
 54V DC: 3.24 watts/11.1BTU
Full loading with PoE
 12V DC: 72 watts/245.7BTU
 24V DC: 131 watts/447BTU
 48V DC: 249 watts/849.6BTU
 54V DC: 251 watts/856.5BTU
DIP Switch Per PoE port
Off: BT/PoH – 802.3bt PoE++/PoH + Legacy 95W PoE output
ON: Force - 60w PoE output
Dimensions 50 x 87.8 x 135 mm (W x D x H)
Weight IPOE-470: 537g
IPOE-470-12V: 679g
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
LED Indicator System:
 Power 1 (Green)
 Power 2 (Green)
 Fault (Red)
PoE Usage:
 80W/160W/240W (Amber)
802.3bt PoE++ Port:
 PoE-in-use x 1 (Amber)
ESD Protection 6KV
Surge Protection 6KV
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++, 4-pair type 4 PSE
Backward compatible with IEEE 802.3at PoE+ PSE
PoE Power Supply Type 802.3bt PoE++/PoH/Force End-span + Mid-span
802.3at PoE+ End-span/Mid-span
Power Pin Assignment Pair 1 End-span: 1/2(-), 3/6(+)
Pair 2 Mid-span: 4/5(+), 7/8(-)
802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Output Max. 90 watts to 802.3bt PoE++ PD
Max. 95 watts to PoH PD
Max. 60 watts to force-powered PD
Max. 36 watts to 802.3at PoE+ PD
PoE Power Budget (max.) IPOE-470:
120W@48V DC input
240W@52V-54V DC input
IPOE-470-12V:
60W@12V-23V DC input
120W@24V-47V DC input
240W@48-54V DC input
Number of devices that can be powered 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
