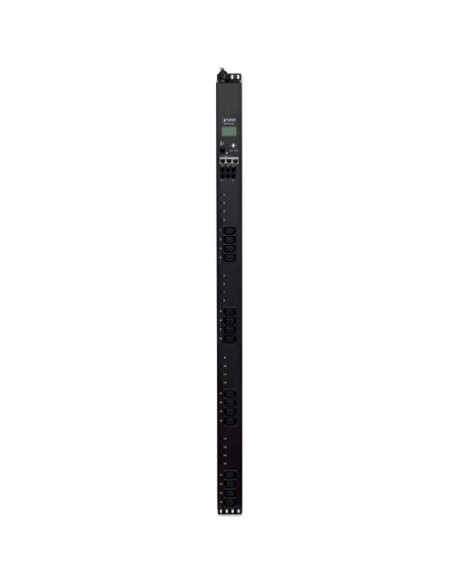

Planet IPM-16230 Vertical IP-based 16-port Switched Power Manager with 2 Cascaded Ports

IPM-16230
*** Out of stock ATM, Available On Backorder ***
$1,518.00
Tax included

IPM-16230

Fulfilling Your Power Requirements with IP-enabled Power Outlets Embracing ESG Principles

PLANET IPM-16230 Vertical IP-based 16-port Switched Power Management (IPM) device is designed to efficiently handle power distribution for a versatile array of connected devices which meet the Environmental, Social, and Governance (ESG) principles.

Leveraging cutting-edge IP-based technology, PLANET has transformed conventional power management equipment into genuine networking devices that align with sustainable and responsible business practices.

PLANET IPM-16230 can be monitored by PLANET's Universal Network Management System (UNI-NMS) and smart discovery utility to support IT staff by remotely monitoring all network devices and powered devices (PDs) while incorporating ESG policy into the operational status assessment. This integration ensures that the device not only meets the technological needs of modern networks but also contributes to environmental sustainability, social responsibility, and robust governance in the realm of power management.






IPM-16230

 Vertical IP-based 16-port Switched Power Manager with 2 Cascaded Ports

Intelligent Power Management

The IPM-16230 boasts 16 customizable power outlets that can be operated independently. It can monitor power usage via the SNMP, web interfaces, or the optional button to select the LCD panel display. This flexibility enables users to efficiently access, configure, and manage multiple networking devices remotely, saving valuable time and resources.

Real-time Current Monitoring

The LCD panel on the unit shows the aggregate current drawn from a power outlet. This feature aids installers in preventing overloaded circuits by issuing a visible warning when the current draw approaches the strip's maximum amperage.

Scheduled Power On/Off

The IP-based Switched Power Manager empowers users to pre-define power schedules for IT equipment. It provides advance notice of an impending shutdown, allowing users a designated timeframe to complete tasks before the power-off sequence begins.

Enhanced Overload Protection

Unlike conventional Power Distribution Units (PDUs) that risk cutting off the entire circuit during power overload, PLANET PDU takes a proactive approach. Equipped with a built-in circuit breaker and reset switch, it ensures stable power distribution among connected equipment. The 32-amp circuit breaker acts as a safeguard against dangerous overloads, preventing potential damage to valuable equipment.

Enabling Environmental Monitoring with Precision

The IPM-16230 goes beyond power management by offering dedicated port for ambient Temperature and Humidity (T/H) sensor (sensor provided with product). This thoughtful addition allows you to seamlessly integrate environmental monitoring into your infrastructure. By connecting compatible sensor to the provided ports, you gain valuable insights into the conditions of your surroundings, ensuring optimal performance and safeguarding your equipment. Additionally, the IPM-16230 features traditional 3 DI and 2 DO ports for network cabinet access control, water intrusion detection, smoke alarm monitoring, and flash/sound siren activation. It reserves 1 I/O port and 1 USB port for potential future expansions, ensuring versatility and adaptability of the product.



Streamlined Connectivity with Cascade Ports

Elevate your networking experience with the IPM-16230's Cascade Input/Output Port, ideal for seamlessly linking RJ45 inputs to the other one. This enables smooth integration of multiple PDUs, optimizing your network infrastructure.

Efficient Energy Management for Cost Savings

Within the configuration interface of the IPM-16230, you have the ability to monitor the current energy consumption in your office. This feature empowers you to make informed decisions to reduce energy usage, ultimately leading to significant savings on utility expenses.

SPECIFICATIONS

IPM-16230

Vertical IP-based 16-port Switched Power Manager with 2 Cascaded Ports
Hardware Specifications
Outlet Power Port 16
Inlet Power Port 1
Network Connector 1 RJ45 port for 10/100 BASE-TX
TH Sensor Port 1 x RJ11-type, 6P
Sensor Port 3 x RJ11-type, 6P
Controller Port 2 x RJ11-type, 6P
Reserved Port 1 x RJ11-type, 6P; 1 x USB type-A
Cascade Port 2 x RJ45-type
Digital Input (DI) Level 0: 0V
Level 1: 3.3V
Digital Output (DO) Level 0: 0V
Level 1: 3.3V
Button 1 x Default Button
1 x Reset Button
1 x Interface Selection Button
LED State of the socket / Power
 LCD Displays
10/100M
 1 (Green/Orange)
LCD Panel Displays current, voltage, energy, network and environment information
Housing aluminum alloy
Dimensions (W x D x H) 1126 x 66 x 44.5 mm
Weight 3.1kg
Installation 0U rack-mountable
Breaker 1 x 32A
Power Distribution
Power
Inlet Outlet
Voltage
      100~240V
Frequency
      50~60Hz
Connection

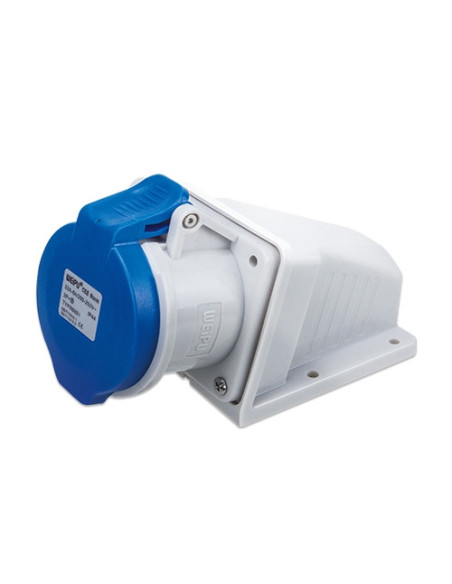

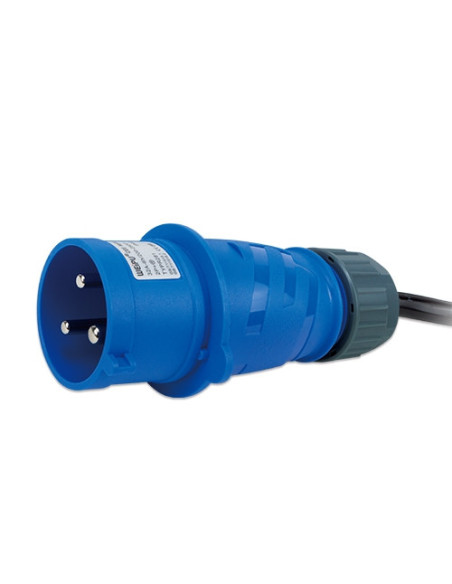

1 x IEC60309 Aviation connector 16 x IEC320 C13
Maximum Current
        32A
Maximum Line Current
10A
Management
User Account Operator/Visitor
Management / Monitor Utility Web browser, SNMP
PLANET Universal Network Management System
PLANET Smart Discovery Utility
Security IP filter
Standards Conformance
Computer Interface IEEE 802.3 10BASE-T
IEEE 802.3u 10/100BASE-TX
Regulatory Compliance CE, FCC
Environments
Operating Temperature 0 ~ 60 degrees C
Operating Humidity 0 ~ 90%

Ports
16 Outlet Power + 1 Inlet Power + 3 Sensor + 2 Cascade
Operating Temperature
0 to 60°C
Voltage
100~240V
Frequency
50~60Hz
IPM-16230
