IPM-12002 PLANET 12-Port Web Managed IP Power Controller
IPM-12002 12 port IP Power management device
Remotely reboot anything from anywhere
PLANET is glad to introduce 12-Port IP Power Management device. The IPM-1200x Series provides the useful function of managing power for any combination to connect with itself. With the innovative IP-based technology, PLANET has made the traditional power management equipment into true networking devices.
IPM-12002 12 port IP Power management device
Remotely reboot anything from anywhere
PLANET is glad to introduce 12-Port IP Power Management device. The IPM-1200x Series provides the useful function of managing power for any combination to connect with itself. With the innovative IP-based technology, PLANET has made the traditional power management equipment into true networking devices.

Intelligent Power Management
Coming with 12 power outlets, each of them can be controlled or monitored individual. You can control those power outlets via the console or web interfaces. You can also use the front panel to operate the power outlets. Provides 7-Segment LED and port status indicators, users can know easily the status of the IPM-1200x Series immediately, without login configure interface.
Easy Maintenance and Configuration
In addition to manual remote control, the IPM-1200x Series provides event-triggered or schedule-based control to turn connected equipment on or off or to reboot systems. The IPM-1200x Series is easily configured with its Plug-and-Play ability. The IPM-1200x Series keeps a detailed log off all connected devices so that in case of severe errors from some devices, the status or failures can easily be solved.

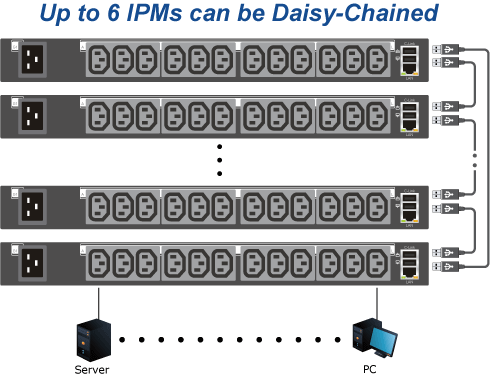

Cascade controls up to 6 IPM from single console
The IPM-1200x Series can be daisy-chained to manage even more devices, so your server room management can expand in step with your company's growth. For ease of management, this allows IT administrators to completely control an IT device from a single user interface.

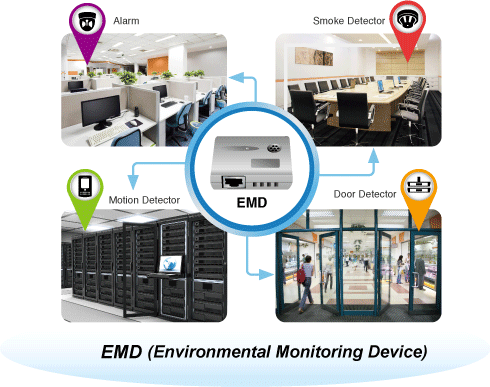

EMD (Environmental Monitoring Device)
The IPM-1200x Series has equipped with a console port for connecting an EMD (Environmental Monitoring Device) for sensing temperature and humidity along with two alarms that can be activated when the sensors show unusual values. The IPM-1200x Series is provided two digital outputs for connecting status indicators or digital switches. When users creating a new server room or the environment had been monitoring, The IPM-1200x Series is the best choice for fit the requirement.

IPM-12002 | |
Hardware Specification | |
Output Power Port | 12 |
Input Power Port | 1 |
Network Connector | 1 x RJ-45 port for 10/100Base-TX |
Console Port | 1 x RS-232 RJ-45 serial port |
Digital Output | 2 |
Daisy chaining Port | 2 x USB 2.0 |
Daisy chaining mode | Auto / Manual |
Button | Reset |
LED | Output Power : ON / OFF Input status indicator : Volts/Amps/Hz/Error code and daisy chained IPM |
Power Distribution | |
AC Input | 200~240V, 16A, 50~60Hz |
AC Output | 200~240V, 50~60Hz |
Load | Max. 10Amp each outlet or Max. 10Amp total for Outlet A~C. Same as D~F, G~I, J~L |
Inlet Connector | 1 x IEC320 C20 |
Outlet Connector | 12 x IEC320 C13 |
Management | |
User Account | 10 |
Management Utility | Web Browser, SNMP software, Windows base utility, Telnet, Hyper Terminal (via console) |
Security | IP filter / Secure 128-bit SSL encryption |
Standards Conformance | |
Computer Interface | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX |
Regulation Compliance | CE, FCC |
System Unit | |
Operating Temperature | 0 ~ 40 Degree C |
Operating humidity | 10% ~ 80% |
Dimension (W x D x H) | 436 x 300 x 44 mm |
Weight | 4.2kg |
Installation | 1U |
IPM-EMD | |
Hardware Specification | |
Digital Input | 2 |
LED Display | Power / Status |
Console Port | 1 x RS-232 RJ-45 serial port |
Monitoring Temperate | 0 ~ 80 Degree C |
Monitoring Humidity | 10 ~ 90% |
Dimensions (W x D x H) | 57.4 x 37.6 x 29.2mm |
- Device Type
- IP Power Controller
