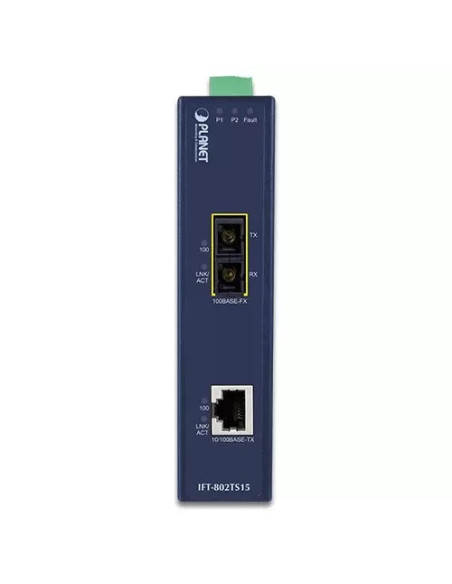

PLANET IFT-802TS15 IP30 Industrial 10/100TX to 100 FX Media Converter (SM, SC, 15km) (-40 ~ 75C)

IFT-802TS15
In Stock
$167.18
Tax included

IFT-802TS15

The IFT-802TS15 is a 10/100Base-TX to 100Base-FX IFT-80xT series media converter that works in extreme temperatures.

  • Speed: 10/100TX to 100FX
  • Mode: Single Mode
  • Wavelength: 1310nm
  • Distance: 15km
  • Fiber Connection: SC
  • Operating Temperature: -40° to 75°C
  • TAA Compliant

Note: ALL Industrial units do NOT include a power supply. Click here to shop all Industrial Power Supply.

75°C~-40°C Redundant Power 10M 100M 100FX Fiber Optical IP 30 DIN Rail

Related Products & Accessories



IFT-802TS15 - PLANET IP30 Industrial 10/100TX to 100 FX Media Converter (SM, SC, 15km) (-40 ~ 75C)


100 FX Media Converter

The 10/100Base-TX to 100Base-FX IFT-80xT series media converter at Planet Technology for industries is able to lengthen the distance for communication with stability through fiber optic wire.

The distance for extension can be lengthened up to 2km by the IFT-802T unit and to 15 km with the IFT-802TS15 model. It can also be extended further, up to 20km, with the IFT-805AT, depending on the SFP module.

This series is truly durable and was crafted to last any environment. The strong casing allows this unit to operate with ease in climates that are demanding and harsh. The IFT-80xT series converter from Planetechusa.com offers a resistance to electrical interference which can be found on the floors of plants or in cabinets on street sidewalks that contain traffic control devices. This series is also able to operate easily in extreme temperatures, from -40 to 75°C.

Transport Networking
PLANET’s Industrial Media Converter, IFT-80xT series, offers high reliability and security to guarantee the continuous industrial operation in harsh environments such as control cabinet of transportation, factory floors or and environments with extremely low or high temperature. In the industrial networking environments, each networked device is required to keep running continuously in the hazardous status. If industrial equipment fails to connect to the network, it might influence the entire operation of industrial systems and thus cause incredibly financial loss. With the IFT-80xT Industrial Media Converter, which complies with all the requirements of industrial applications, customers may enjoy high reliability, fast recovery capability, and safe Ethernet network operation.

Fiber-optic Networking for ISPs, Enterprises, and Homes
With stable performance of data transmission and easy installation, the IFT-80xT Industrial Media Converter series can build an ISP network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs, or FTTB (Fiber to the Building) for enterprises with small office network environment.

Hardware Specifications
10/100Base-TX Port 1 RJ-45 auto-MDI / MDI-X port
100Base-FX Port IFT-802TS15: 1 SC interface
Fiber Port Type IFT-802TS15: SC / single-mode
Cable Distance IFT-802TS15: 15km
Optical Frequency IFT-802TS15: 1310nm
Launch Power (dBm) Max
IFT-802TS15: 0
Min
IFT-802TS15: -20
Receive Sensitivity (dBm) IFT-802TS15: -32
Maximum Input Power (dBm) IFT-802TS15: 0
Dimensions (W x D x H) 135 x 85 x 32 mm
Weight 430g
Installation DIN rail kit and wall mount ear
Maximum Frame Size 1522bytes packet size
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure IP-30 slim type metal case
LED Indicator System:
　•Power 1 (Green)
　•Power 2 (Green)
　•Fault (Green)
1 x copper port:
　•10/100 (Green)
　•LNK/ACT (Green)
1 x 100FX port:
　•100 (Green)
　•LNK/ACT (Green)

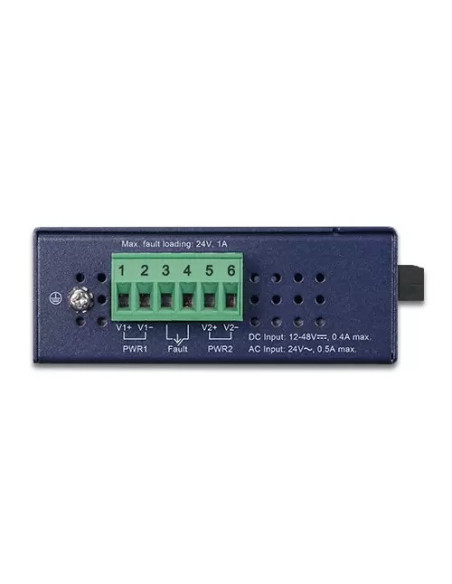

Power Input 12 to 48V DC redundant power with polarity reverse protection function
Single AC 24V power adapter acceptable
Power Consumption 3 watts/ 10BTU (maximum)
Protection ESD (Ethernet): 6KV DC
Surge (Power): 6KV DC
Speed Twisted-pair:
　•10/20Mbps for half / full-duplex
　•100/200Mbps for half / full duplex
Fiber-optic:
　•200Mbps for full-duplex
Network cables 10/100Base-TX:
　•2-pair UTP Cat. 3, 4, 5 (100 meters, max.)
　•EIA/TIA-568 100-ohm STP (100 meters, max.)
100Base-FX:
　•IFT-802TS15: Single-mode optical fiber 9/125μm (15km)
Standards Conformance
Emissions FCC Class A, CE Class A
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX / 100Base-FX
IEEE 802.3x flow control and back pressure
Stability Testing IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environment
Operating Temperature -40~75 degrees C
Operating Humidity 5~95% non-condensing
Storage Temperature -40~85 degrees C
Storage Humidity 5~95% non-condensing

Device Type
Media Converter
Device Features
Industrial
Power Input
DC
Operating Temperature
-40 to 75° C
Speed
10/100TX to 100FX
Distance
15km
Fiber Connection
SC
Mode
Single Mode
Wavelength
1310nm
IFT-802TS15
No reviews

Related Products & Accessories

AC DC Power Adapter 24V 1.2A
In Stock
Power Management

AC DC Power Adapter 24V 1.2A

Generic
ACDC-24V-12A
$17.66
ACDC-24V-12A 24V 1.2A Power Adapter with 2.1mm plug Generic product photo
PWR-75-48 Industrial 48V 75W DIN Rail Power Supply
*** Out of stock ATM, Available On Backorder ***
Power Management

PWR-75-48 Industrial 48V 75W DIN Rail Power Supply

Mean Well
PWR-75-48
$105.66
PWR-75-48The PWR-75-48 accepts 90-264V AC or 127-370V DC input and provides 48V 75W power output. PWR DIN rail series devices are hardened industrial DIN rail mount power supplies designed for use in harsh environments with temperatures from -20 ~ 70C. These units feature a free air convection cooling system and protect against damage due to short...
PWR-60-24 Industrial 24V 60W DIN Rail Power Supply
*** Out of stock ATM, Available On Backorder ***
Power Management

PWR-60-24 Industrial 24V 60W DIN Rail Power Supply

Mean Well
PWR-60-24
$68.06
PWR-60-24The PWR-60-24 accepts 85-264V AC or 120-370V DC input and provides 24V 60W power output. PWR DIN rail series devices are hardened industrial DIN rail mount power supplies designed for use in harsh environments with temperatures from -20 ~ 70C. These units feature a free air convection cooling system and protect against damage due to short...
PLANET Industrial 10/100TX to 100FX Media Converter
Free Shipping!
Media Converters

PLANET Industrial 10/100TX to 100FX Media Converter

PLANET

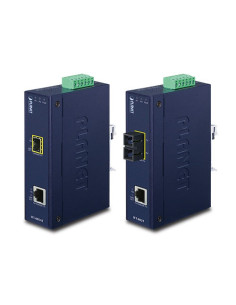

IFT-802T
