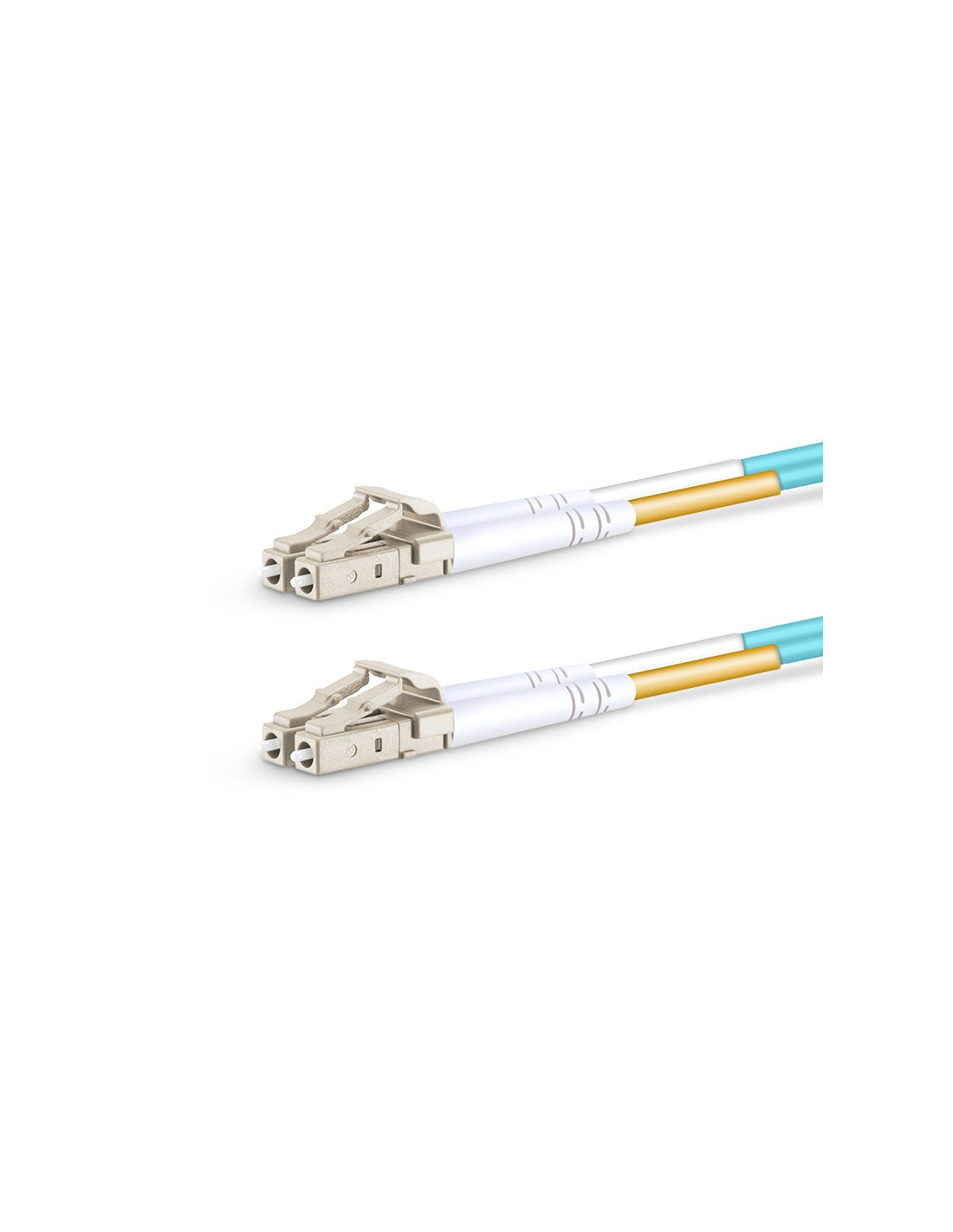

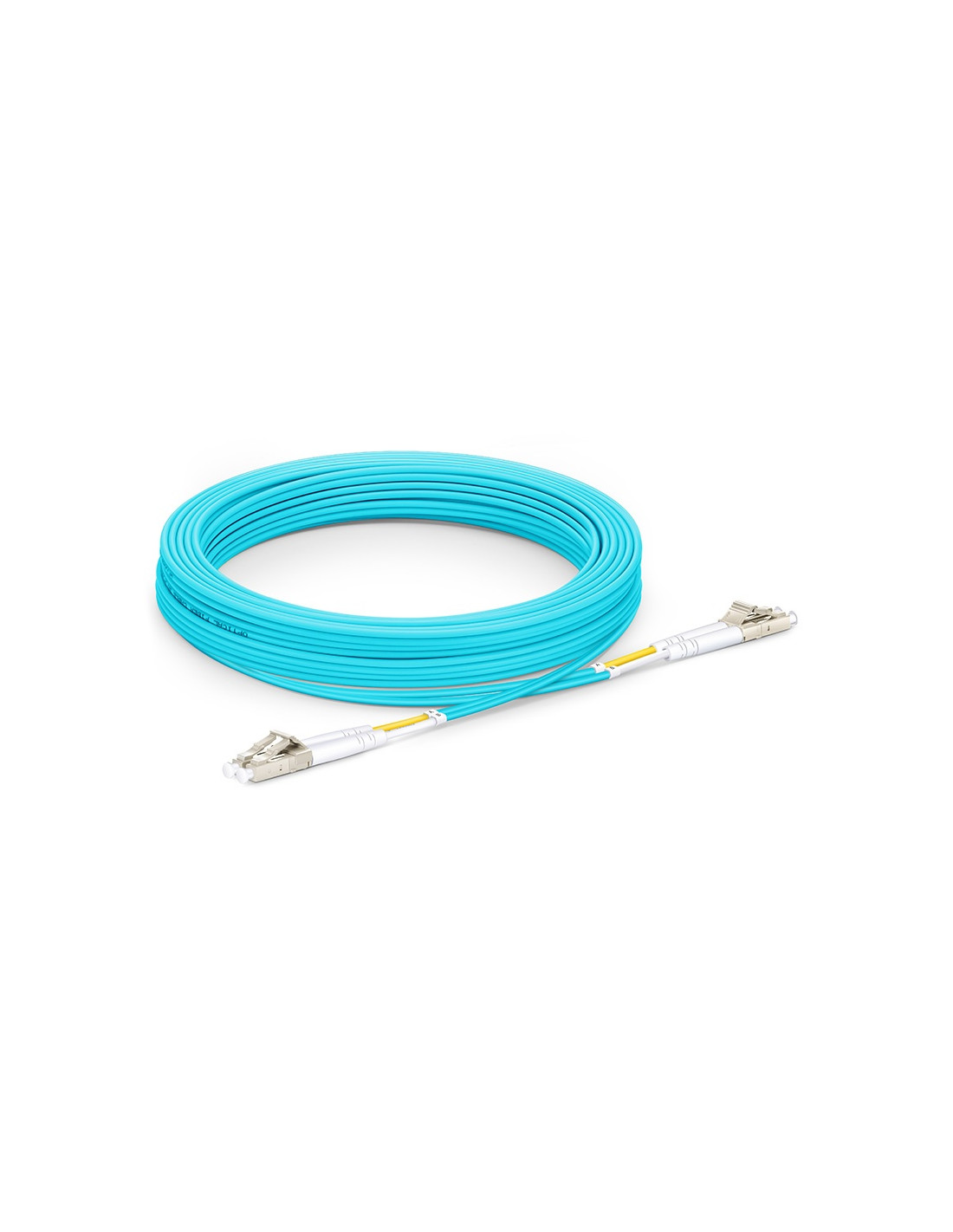

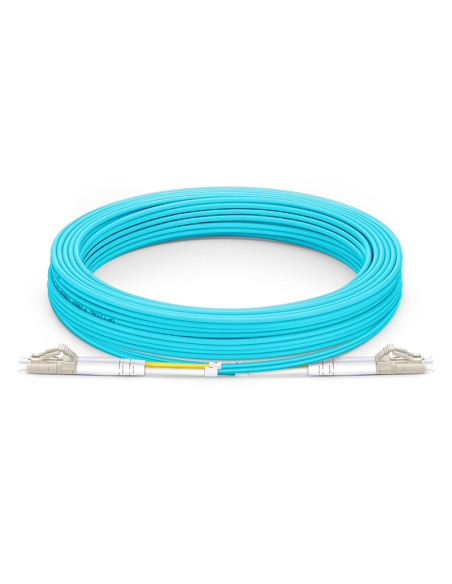

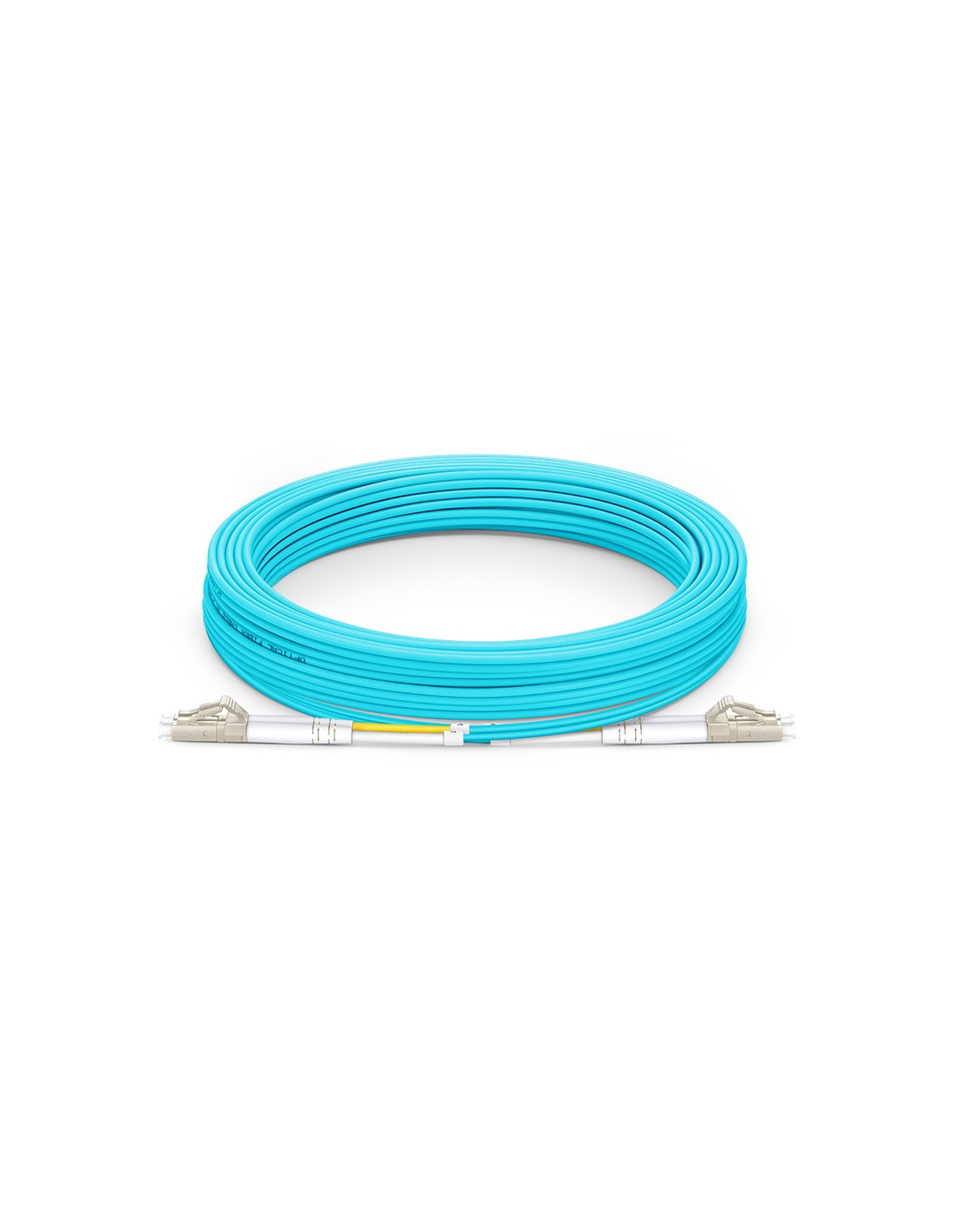

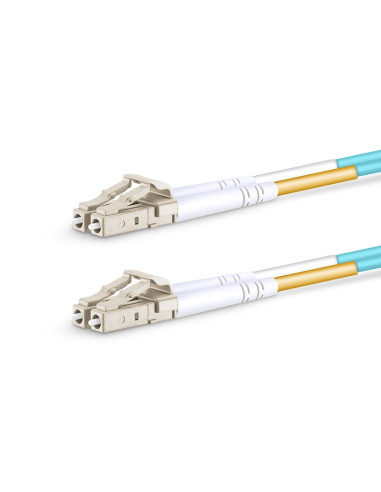

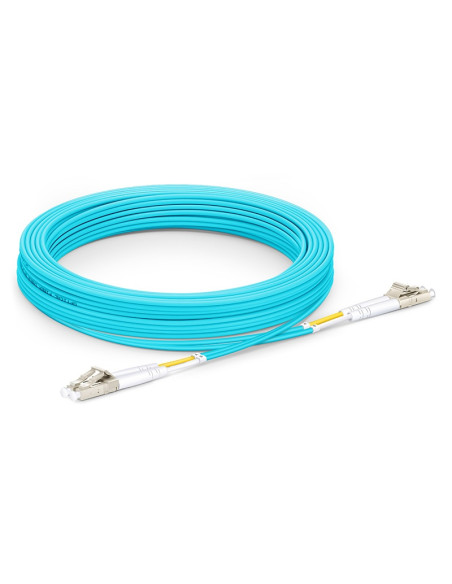

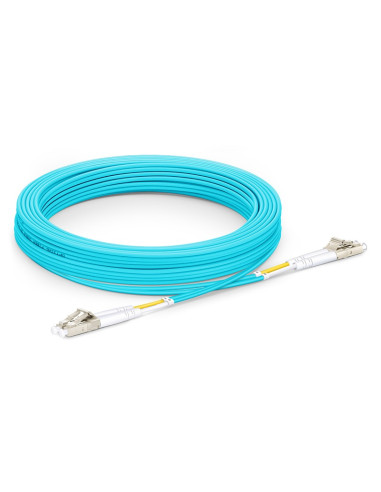

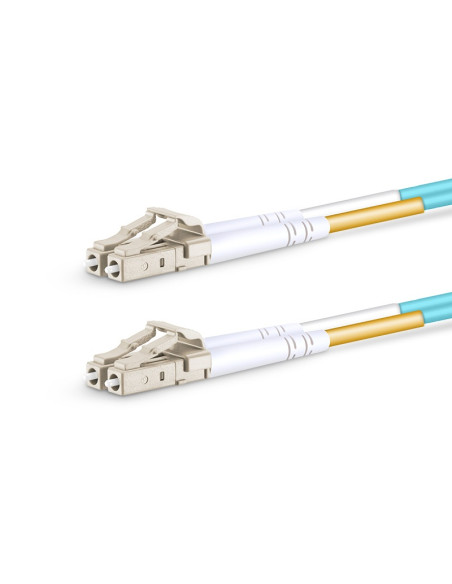

BC-OM4-MM-LCLC-20 OM4 Multimode Duplex Fiber Cable (LC to LC) 20 Meter
BC-OM4-MM-LCLC-20|BC-OM4-MM-LCLC-20 OM4 Multimode Duplex Fiber Cable (LC to LC) 20 Meter| WISP
BC-OM4-MM-LCLC-20|BC-OM4-MM-LCLC-20 OM4 Multimode Duplex Fiber Cable (LC to LC) 20 Meter| WISP
  • New
BC-OM4-MM-LCLC-20 OM4 Multimode Duplex Fiber Cable (LC to LC) 20 Meter
BC-OM4-MM-LCLC-20|BC-OM4-MM-LCLC-20 OM4 Multimode Duplex Fiber Cable (LC to LC) 20 Meter| WISP
BC-OM4-MM-LCLC-20|BC-OM4-MM-LCLC-20 OM4 Multimode Duplex Fiber Cable (LC to LC) 20 Meter| WISP

BC-OM4-MM-LCLC-20 OM4 Multimode Duplex Fiber Cable (LC to LC) 20 Meter

BC-OM4-MM-LCLC-20
In Stock
$40.70
Tax included

BC-OM4-MM-LCLC-20

20 Meter | LC UPC to LC UPC | Duplex | OM4 Multimode | 50/125 µm | Riser (OFNR) | 2.0mm Jacket

The BC-OM4-MM-LCLC-20 is a 20-meter LC-LC duplex multimode fiber optic patch cable designed for high-performance data transmission in modern network environments. Built with OM4 laser-optimized 50/125µm multimode fiber, this cable supports 10G Ethernet and is also compatible with 40G/100G BiDi and breakout applications using duplex transceivers.
Ideal for use in data centers, telecom rooms, enterprise backbones, and equipment interconnects, the cable features bend-insensitive fiber that minimizes signal loss even in tight routing spaces. The 2.0mm Riser (OFNR) jacket is suitable for vertical cable runs in building risers and complies with fire safety regulations

Application:

  • Cross-connect patching
  • Backbone application in building
  • Termination enclosure for equipment patching
  • Equipment to equipment patching

Features:

  • Conforms to ISO/ IEC 11801
  • Individually labelled for lead tracing
  • Manufactured with stringent quality control
  • UPC (Ultra Physical Contact) connector
  • All leads are supplied with a factory test report
  • Fibre Optic Cables conform to ITU-651, TIA/EIA492AAAD
  • Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
  • All ends are polished and individually inspected for correct polishing
  • Supports high-speed multi-channel data, voice & video applications



BC-OM4-MM-LCLC-20 OM4 Multimode Duplex Fiber Cable (LC to LC) 20 Meter

Product Specifications:

Connector A LC UPC Duplex
Connector B LC UPC Duplex
Fiber Count 2 Fibers
Fiber Grade Bend Insensitive
Fiber Mode OM4 50/125μm
Wavelength 850/1300nm
Polarity A (Tx) to B (Rx)
Cable Type Tight-Buffered
Cable Outside Diameter (OD) 2.0mm
Flame Rating Riser (OFNR)
Min. Bend Radius (Optical Fiber) 7.5mm
Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Connector Durability 1000 times
Tensile Strength (Long/Short Term) 90/150N
Insertion Loss ≤0.3dB
Return Loss ≥30dB
Attenuation at 850nm 3.5dB/km
Attenuation at 1300nm 1.5dB/km
Operating Temperature -10 to 70°C (14 to 158℉)
Storage Temperature -20 to 70°C (-4 to 158℉)
BC-OM4-MM-LCLC-20
