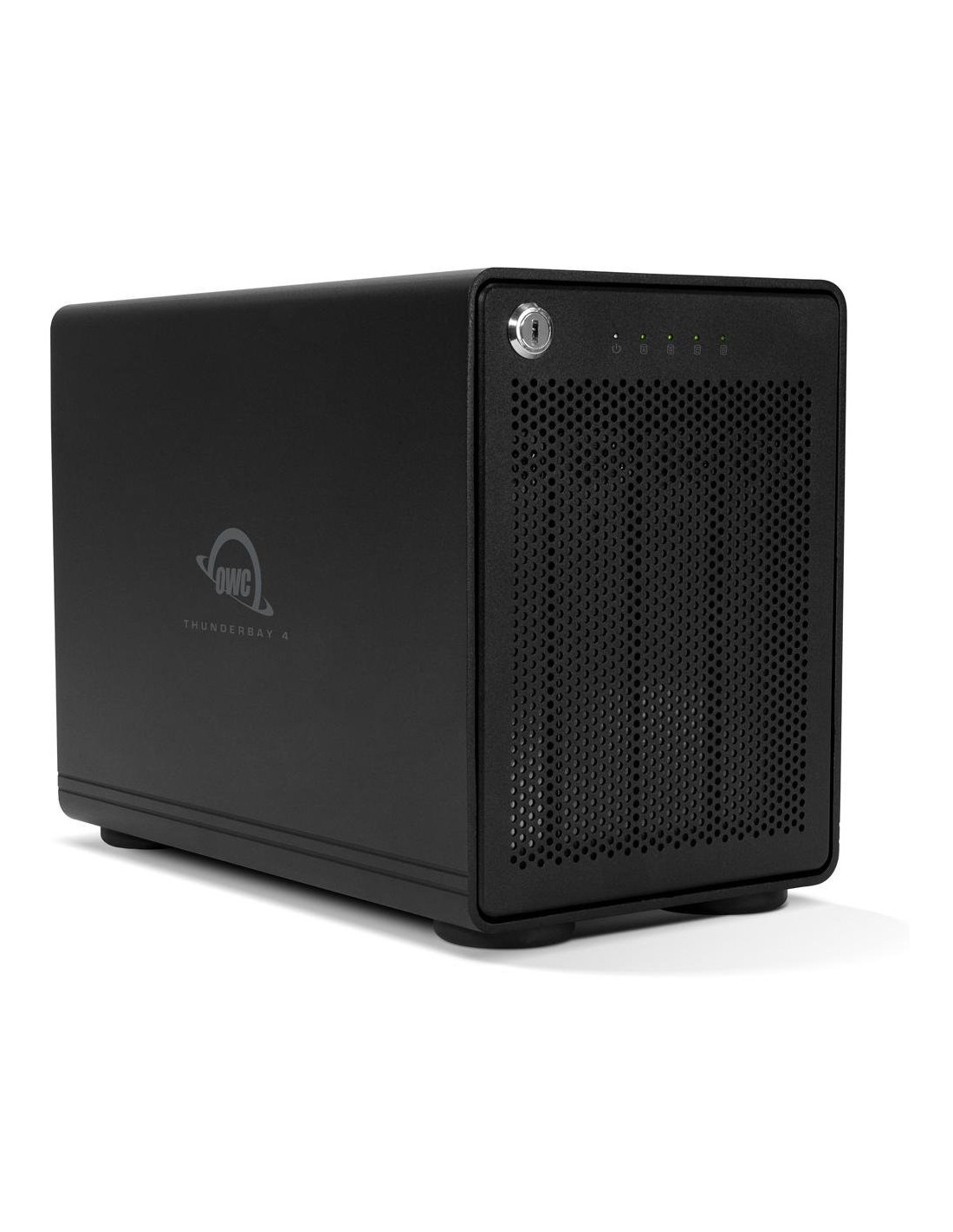

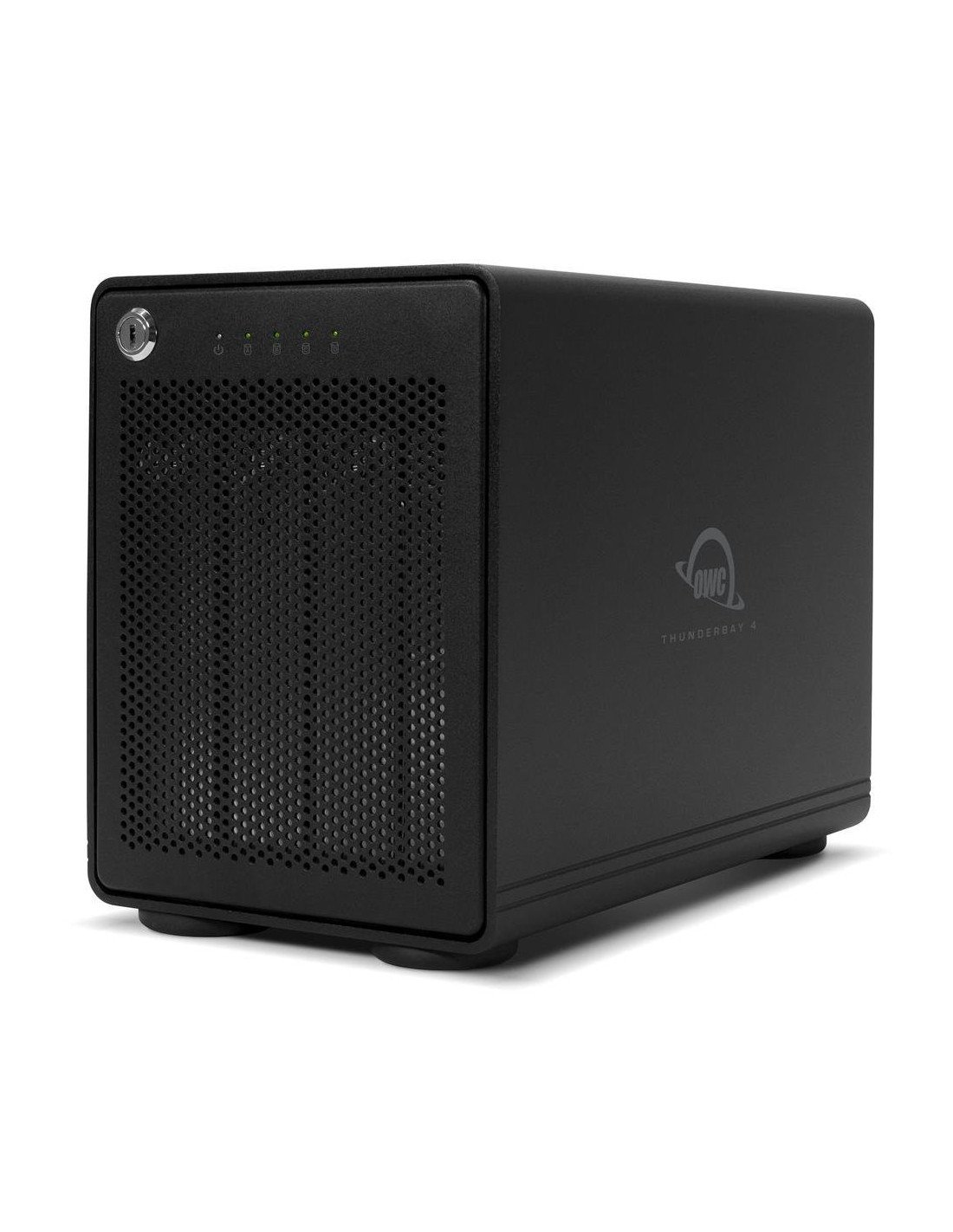

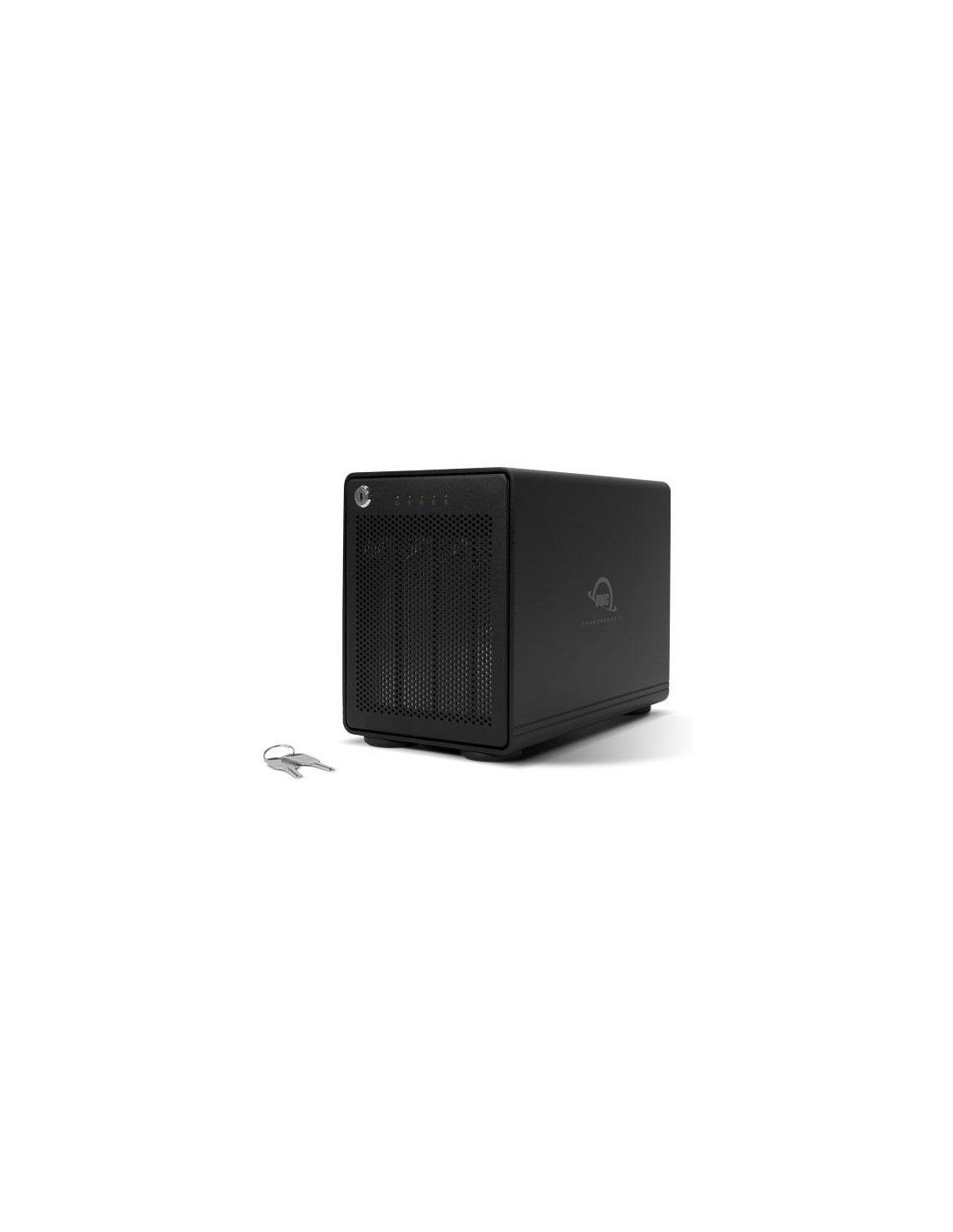

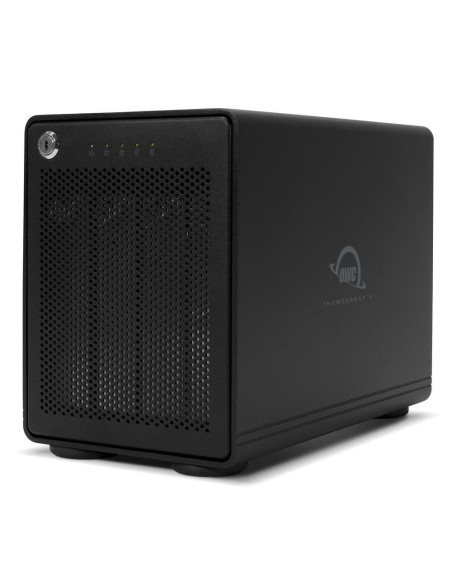

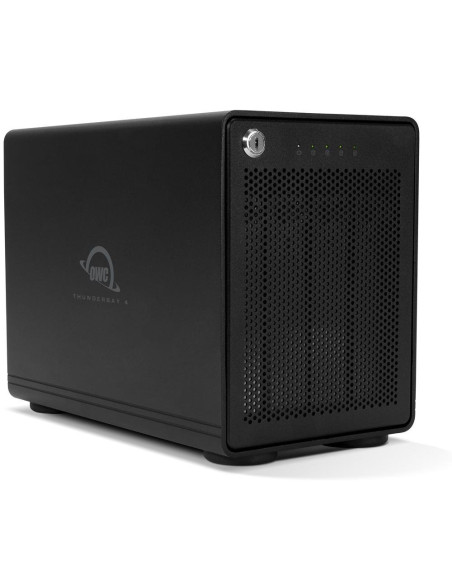

OWC OWCTB3SRKIT0GB, Four-Bay Thunderbolt (40Gb/s) External Storage Enclosure with SoftRAID for 2.5-inch and 3.5-inch SATA Drives

OWCTB3SRKIT0GB
Last items in stock
$1,181.40
Tax included

OWC ThunderBay 4

Key Features:

  • Work faster: up to 1527MB/s4 real-world speed to easily handle video editing, audio production, and photo editing, and other bandwidth demanding needs
  • Work bigger: access, backup, and archive an enormous amount of irreplaceable footage, images, and files
  • Built for RAID: bundled with OWC SoftRAID; the fastest and most flexible RAID 0/1/4/5/1+0 (10) tool. Also supports Apple RAID and Windows Disk Manager.
  • Expansive: daisy-chain up to five additional ThunderBay 4 or other Thunderbolt storage devices via the second Thunderbolt port

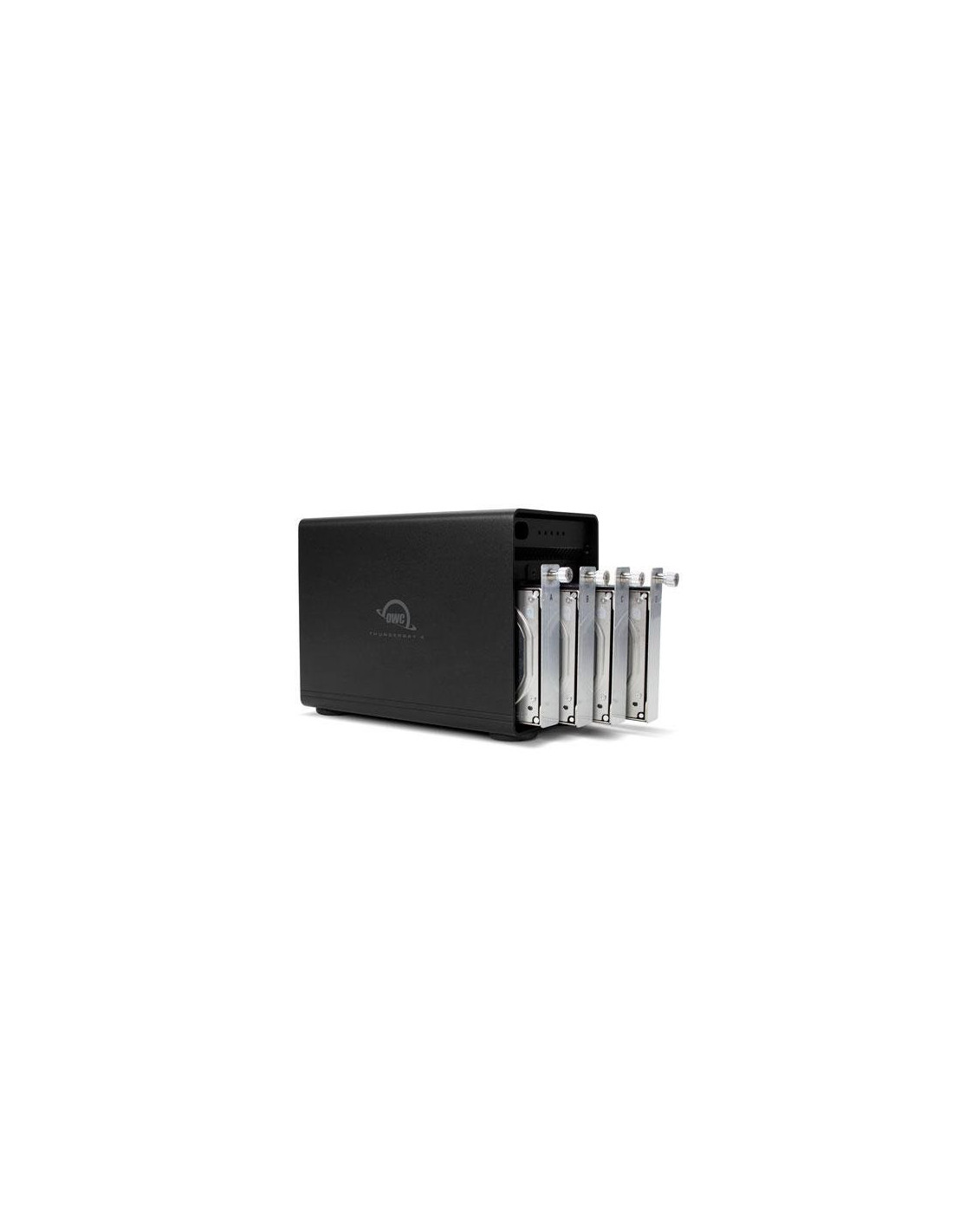

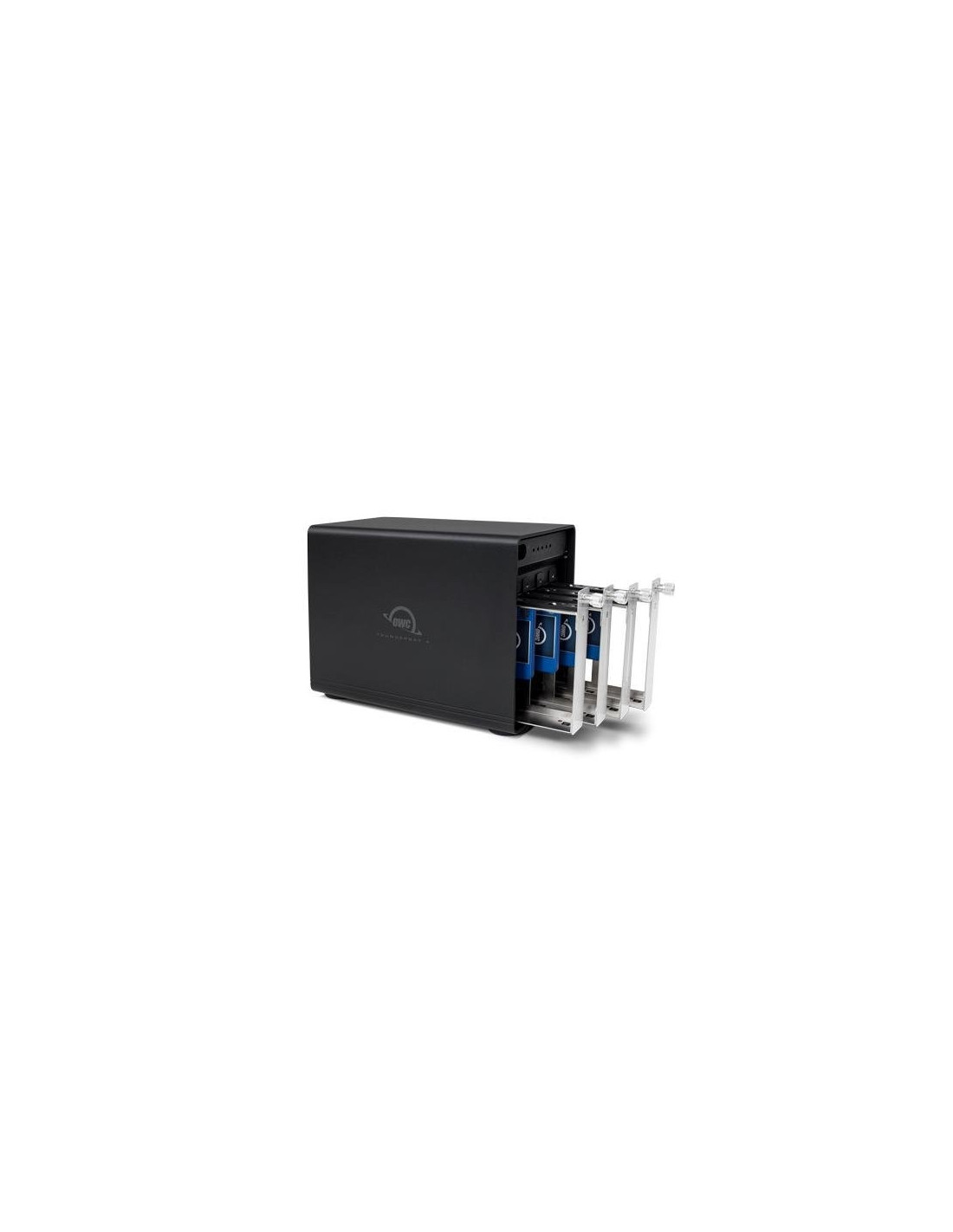

  • Flexible: mix and match 3.5-inch or 2.5-inch HDDs and SSDs

Related Products & Accessories



OWC ThunderBay 4

Perfect in All, for All

Speed, capacity, and configuration flexibility in a compact desktop footprint. ThunderBay 4 is perfection for a myriad of content creators and the reason it’s been one of the best-selling RAID storage solutions for the past decade.

Handle it all from everyday file storage and backup to running multi-stream compressed 4K video. Choose a preconfigured solution to start working immediately or add your own HDDs or SSDs to a DIY kit. Configure ThunderBay 4 with OWC SoftRAID or your own RAID software to achieve your optimum level of performance and data redundancy. Add additional ThunderBay 4 or other Thunderbolt storage devices to the second Thunderbolt port and flex bigger capacity muscle. In every imaginable way, ThunderBay 4 is perfect in all, for all.

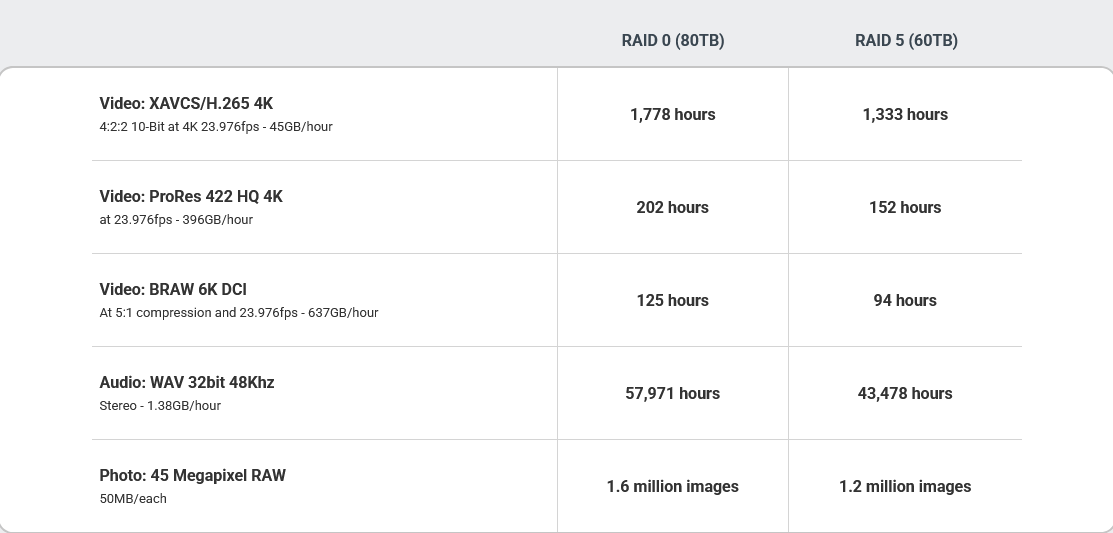

How Much Content you can Store

Mac-Ready Across the Board

ThunderBay 4 checks all the functional boxes to make you a more efficient content creator: fast data access, enormous storage capacity, centralized (and hassle-free!) file location, and it works with Macs (Intel-based plus the latest Apple Silicon M1/M2/M3/M4 machines) and Windows PCs. What makes ThunderBay 4 the best 4 bay storage solution available is its time-proven reputation of providing peace of mind your data will be safely protected today and tomorrow. Gone is the fear of a costly slow down or — gulp — losing irreplaceable data because you didn’t select the right RAID solution

The Most Powerful RAID Tool on the Planet.

SoftRAID is the world’s fastest and most flexible application to configure, maintain, and protect your RAID volumes on Mac and PC. OWC enclosures include 3 Years of SoftRAID Premium.

  • High-Performance RAID 0/1/4/5/1+0 (10) volumes
  • Predictive Health Monitoring proactively notifies of Volume and Disk issues well before failure — provided on your computer and remotely
  • Seamless Cross-Platform Sharing with support for Apple-formatted APFS and HFS+ SoftRAID volumes between Mac and Windows at no additional cost
  • 35+ Years of Experience of Pro Support to provide peace-of-mind with setup help, ongoing questions, or urgent disk issues

Specifications:

Device Specifications

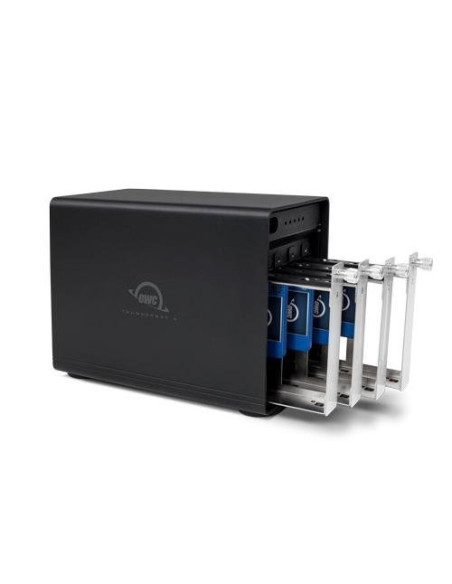

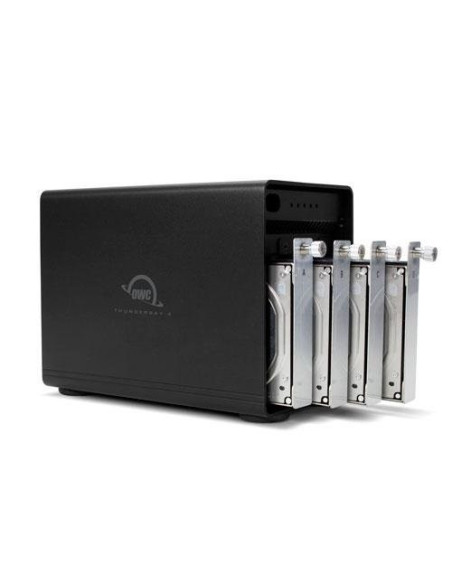

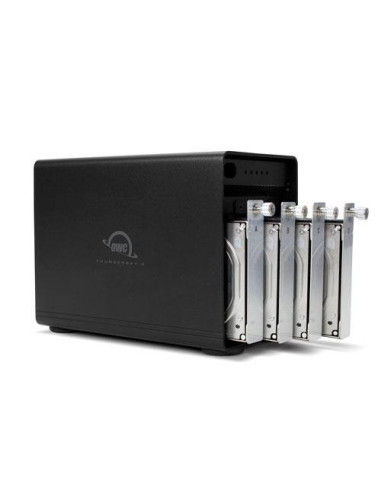

Drive Bays 4 bays supporting: 2.5"/3.5" SATA HDDs and SSDs
Plug and Play Yes
Hot Swap Support Yes
Boot Support Boot Camp is not supported
Storage Interface SATA 6.0 Gb/s
RAID Capable Yes
RAID Levels Supported JBOD, RAID 0, RAID 1, RAID 4, RAID 5, RAID 10
RAID Features Software RAID

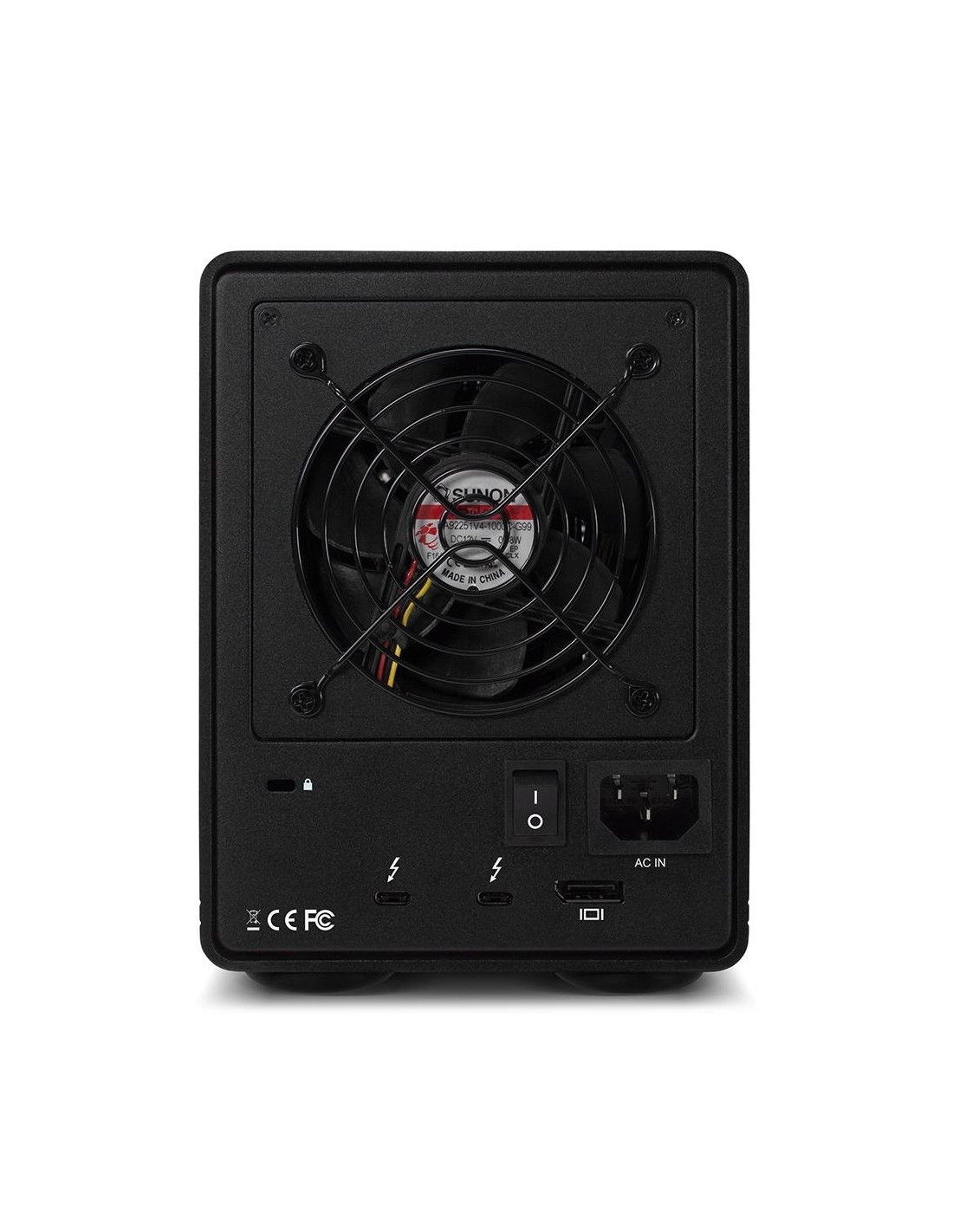

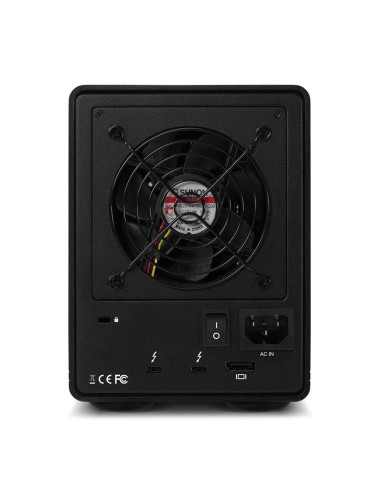

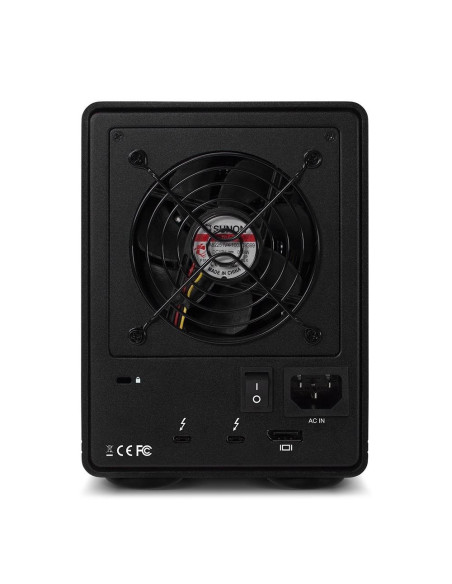

Device Ports (1) Thunderbolt 3 (USB-C) Host Port
(1) Thunderbolt 3 (USB-C) Port
Either port can act as host
Power Delivery Up to 15W per Thunderbolt 3 port to host/device
UASP Support Yes
Max Data Transfer Rate Thunderbolt 3: Up to 40Gb/s (5000MB/s)
Chipset / Controller SATA: ASM-1164
Thunderbolt 3: Intel DSL6540
Host Interface Requirements Thunderbolt (USB-C); backward compatible with TB2/TB1
Mac OS Compatibility macOS 10.14 Mojave
macOS 10.15 Catalina
macOS 11.x Big Sur
macOS 12.x Monterey
macOS 13.x Ventura
macOS 14.x Sonoma
macOS 15.x Sequoia
PC OS Compatibility Windows 10 64-bit, Windows Server 2022, Windows 11
Other Requirements SoftRAID required (macOS 10.14+ / Windows 10+).
License valid for Mac or Windows (one active use at a time).
RAID 4 and RAID 10 supported only on Mac.
External Power Adapter No
Power Supply Internal UL-listed universal auto-switching
AC Input 100–230V
Cooling One 92mm cooling fan

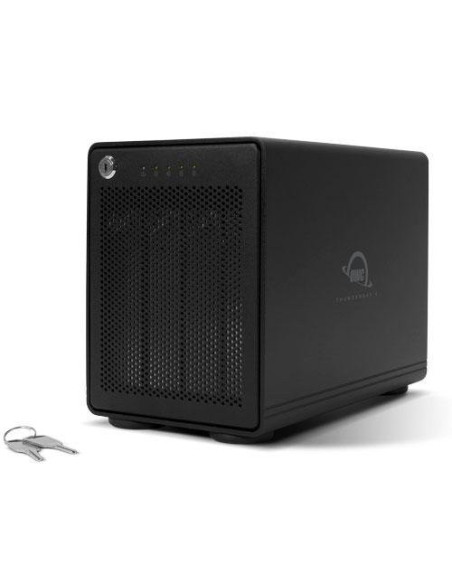

Security Slot Yes
Power Button Yes
Power/Activity LED Yes
Housing Color Black
Housing Material Aluminum
Dimensions Height: 19.1 cm (7.5 in)
Length: 24.5 cm (9.6 in)
Width: 13.5 cm (5.3 in)
Weight 3.9 kg (8.60 lbs)
REACH Certification Yes
Ambient Temperature Operating: 10°C to 35°C (50°F to 95°F)
Non-Operating: -40°C to 65°C (-40°F to 149°F)
Humidity Operating: 8% to 90% non-condensing
Non-Operating: 5% to 95% non-condensing
