OWC OWCTB3QMSR00GB ThunderBay 4 mini Four-Bay Thunderbolt External Storage Enclosure with SoftRAID XT for 2.5-inch SATA Drives
OWCTB3QMSR00GB
Last items in stock
$693.00
Tax included
OWCTB3QMSR00GB
The Perfect Combination of Speed, Size, and Convenience for Permanent Access to Your Data
- Four 2.5-inch drive bays
- Up to 765MB/s peak performance and 1556MB/s SSD peak performance (RAID 0)
- Daisy-chain up to five additional Thunderbolt devices
- Includes SoftRAID: robust software for creating, monitoring, and managing advanced RAID sets
- Thunderbolt certified for Mac and Windows

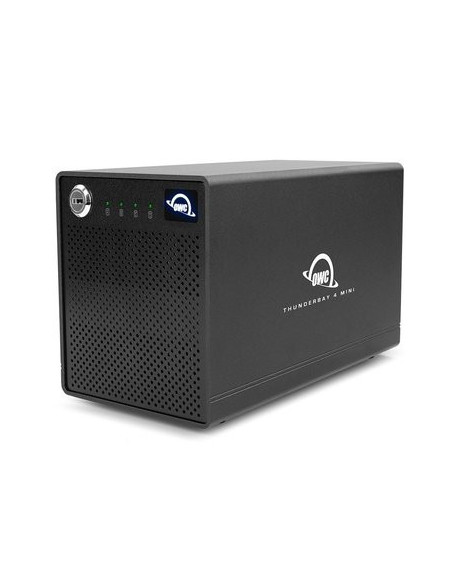

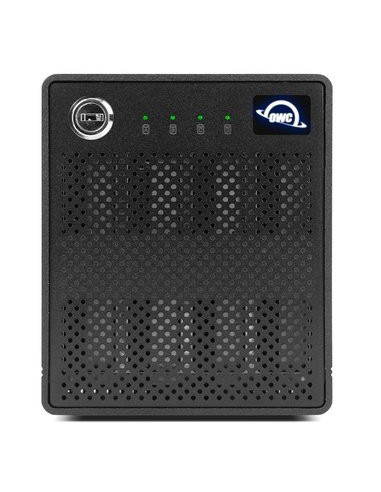

OWCTB3QMSR00GB - OWC ThunderBay 4 mini Four-Bay Thunderbolt External Storage Enclosure with SoftRAID XT for 2.5-inch SATA Drives
Big RAID System Performance in a Compact Design
The ThunderBay 4 mini hard drive equipped solution is big on performance and flexibility yet sized about the length of a pencil. The rugged heat-dissipating aluminum enclosure features two Thunderbolt 3 (Thunderbolt 2/Thunderbolt backward compatible) ports for up to 1556MB/s real-world speeds, so you have more than enough bandwidth to handle personal and business backups – all the way up to today's highest resolution audio, photo, and video formats. If you are seeking big RAID performance that's small enough to fit on a desk, in a rack, or on a DIT cart, your wish is now a reality.
A New World of Drive Flexibility
With four hard drive populated bays, you can use the drives independently or combine drives as a RAID with the included OWC SoftRAID XT setup and management software. The ThunderBay 4 mini is also perfect for repurposing or maximizing bare 2.5-inch HDDs and SSDs you already own.
Expand production capabilities in industry-leading creative platforms like Final Cut X, Avid Pro Tools, Apple Pro Logic, and Adobe Lightroom, edit large images, manage massive photo and audio libraries, store drone videos, use it as a transport drive…whatever the day or project demands, the ThunderBay 4 mini is the perfect workflow solution.
Install or Swap in Minutes

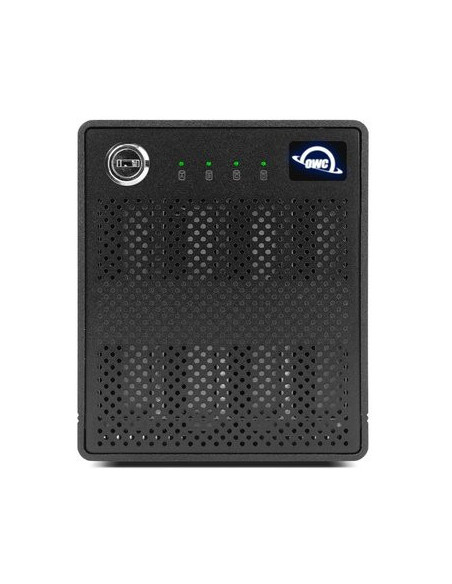

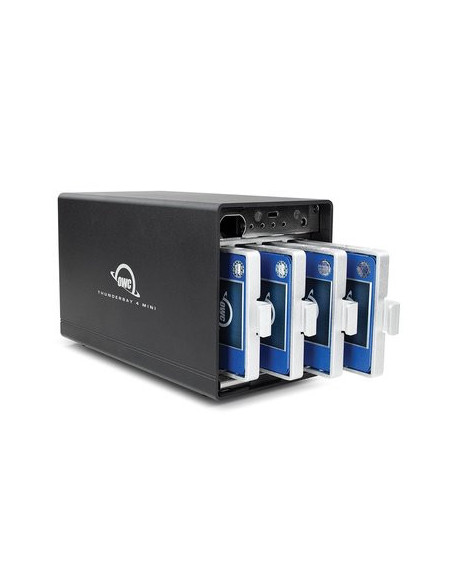

Want to access a drive or expand your storage capacity? Simply open the front panel security lock to access the four individual bays. Drives mount to a tray that slides back in and automatically plugs into a drive connector so you can get back to work in minutes.
SoftRAID: RAID Made Easy
Harness the full capability of your OWC drive array with the included SoftRAID XT, the most powerful, intuitive RAID management software on the market for macOS and Windows. SoftRAID’s RAID creation and management technology has been finely tuned to perfection with over 20 years of development to provide rock solid protection of your data and optimize drive performance.
SoftRAID XT provides an unbeatable combination of speed, protection, and compatibility:
- Advanced: Create RAID 0/1/4/5/1+0 (10) arrays
- Protected: SoftRAID Monitor constantly watches your disks and alerts you if problems are detected
- Validated: Volume validation ensures sectors can be read and parity is correct
- Certified: Checks disks before use to ensure they are safe for data storage
- Vigilant: Error prediction helps protect against unexpected failure
- Universal: Move SoftRAID arrays seamlessly between Mac and PC2 with built-in OWC MacDrive technology
Beyond Hardware RAID
SoftRAID provides a level of storage performance that you simply can’t get with hardware RAID. SoftRAID gives you increased power and control over your RAID drives and disks that hardware RAID can’t deliver and doesn’t lock you into technology that you can’t upgrade or expand.
Professional Grade = Ready to Work
We understand having confidence in gear reliability is paramount to creative professionals. That's why every ThunderBay 4 mini hard drive solution undergoes OWC's multi-hour "burn-in" performance certification prior to shipping. This ensures your ThunderBay 4 mini arrives operating properly and immediately ready for demanding use.
Support You Can Trust
Like all OWC products, the ThunderBay 4 mini enclosure is fully backed by OWC's award-winning support team.
Speed, size, and convenience – the OWC ThunderBay 4 mini provides everything a demanding workflow requires.
- Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
- RAID 4/1+0 (10) are Mac only at this time.
- SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.
- (1) OWC ThunderBay 4 mini External Storage Enclosure
- (1) 0.7M Thunderbolt Cable
- (1) External Power Supply and Power Cord
- (2) Security Keys for Front Panel Lock
- (1) Quick Start Guide for OWC ThunderBay 4 mini with Thunderbolt 3
- (1) Assembly Manual & User Guide for OWC ThunderBay 4 mini with Thunderbolt 3
- (1) OWC SoftRAID XT Software Bundle
- (1) Quick Start Guide for OWC SoftRAID XT
- (1) Manual & User Guide for OWC SoftRAID XT
Number of Bays
- 4
Boot Support
- Independent volumes bootable in macOS
Drive Interface
- SATA
RAID Capable
- Yes
RAID Levels Supported
- RAID 0
- RAID 1
- RAID 4
- RAID 5
- RAID 10
- JBOD
RAID Features
- Software RAID

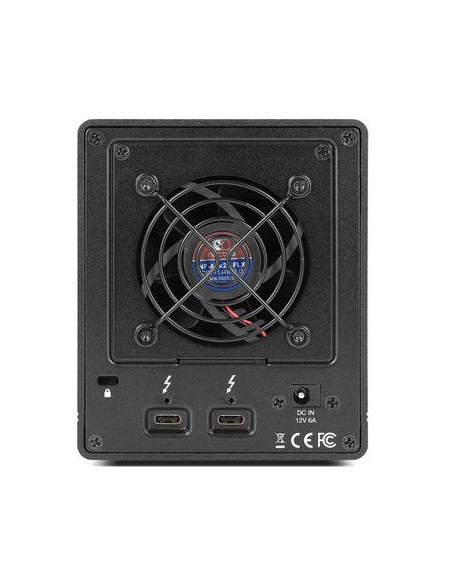

Device Ports
- (1) Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s)
- (1) Thunderbolt 3 (USB-C) Port
Data Transfer Rate (Maximum)
- Thunderbolt 3 : Up to 40 Gb/s (or 5000 MB/s)
Chipset
- Thunderbolt: Intel JHL6540
- SATA Controller: ASMedia ASM-1062
MTBF (Mean Time Between Failures)
- Varies depending on drive mechanism installed
Contact Start Stops
- Varies depending on drive mechanism installed
Host Port Requirements
- Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)
Mac OS Compatibility
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
PC OS Compatibility
- Windows 10 64-bit Edition
- Windows 11
Driver Required
- SoftRAID Only
Other Requirements
- SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time.
External Power Adapter
- Yes
Power Supply
- External UL-listed universal auto-switching power supply
AC Input
- 100-240V, 50-60Hz, 2.0A
DC Output
- +12V, 6A
Wattage
- 72W
Replacement Adapter Part Number
- OWCTB2DOCKPWR (sold separately)
Cooling
- (1) 60mm 3,000RPM Noctua cooling fan
Security Slot
- Yes
Power/Activity LED
- Yes
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 11.7 cm (4.6 in)
- Length: 19.1 cm (7.5 in)
- Width: 9.6 cm (3.8 in)
- Weight1.1 kg (2.51 lbs)
Certifications
- CE
- FCC
- VCCI
- RCM
- BSMI
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed
Noise
- Varies depending on drive mechanism installed
- Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
- SoftRAID XT works with macOS 10.12 or later and Windows 10. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.
- RAID 4/1+0 (10) are Mac only at this time.
- SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.
- Environment Temperature
- 0℃~50℃
0810586032360
OWCTB3QMSR00GB
