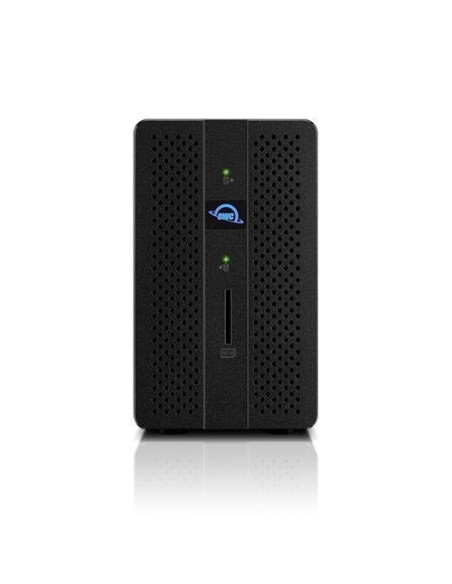

OWC Gemini OWCTB3DKP2D Thunderbolt Dock and Dual-Bay RAID External Storage Enclosure for 2.5-inch and 3.5-inch SATA Drives

OWCTB3DKP2D - Envoy Express Thunderbolt Bus-Powered Portable NVMe M.2 Enclosure

Stay Connected to Your Team and Media

The OWC Gemini features a 2.5Gb/s Ethernet port so you can transfer files and work up to 2.5x faster over wired networks and enjoy increased productivity in an IP-based workflow. Great for shared workspaces and workflows, file transfers breeze by quickly so you spend less time setting up and more time getting to work. When it’s time to share your progress, you can use your RAID options to render out working files and a fast connection to post for team and client reviews. It’s also great for sending your files over to a NAS to keep them safely archived.

Gain a 8K Perspective

With a dedicated latest generation HDMI port, Gemini empowers you to add the fresh, crisp perspective of an 8K display to your workflow. Whether in your home office or on a mobile studio job, seeing your work in full detail is just one connection away. Use it to free up your laptop port, so you can dock in and out quickly and stay mobile.

Reclaim Your Desktop

With multi-drive media dumps, controllers, A/V outputs, and a mess of device cables, it can be hard enough to find space for your notebook let alone room to work. OWC Gemini fights the clutter with a single-cable connection that delivers storage, ethernet sharing, charging power, and 8K monitor support while neatly consolidating all your peripheral device cables. Reclaim your workspace and reduce your stress.

Finally, a RAID as Mobile as Your Life

With the built-in hardware-based RAID controller, you get speed and security without being dependent on what operating system you are running. If you work in a cross-platform world, you can easily connect OWC Gemini to Mac and PC using OWC's MacDrive software (sold separately).

Disconnect in One Click

Safely disconnect multiple drives in a single click. OWC Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.

OWC Thunderbolt Cable Included

OWC Gemini comes with a certified 0.7M OWC Thunderbolt Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt (USB-C) Cables are the perfect choice.

Stabilize Thunderbolt and USB-C Cables

Active workspaces expose gear to bumps, shoves, or even the random tail wag from a pet. OWC ClingOn custom cable stabilizers (sold separately) screw into the OWC Dock or OWC Drive housing to reduce – if not completely eliminate – cable strain on Thunderbolt and USB-C connections so you can work with confidence even in the highest traffic environments.

Innergize Your Workflow with Highest Performance and Reliability

OWC Innergize™ is the first stage of the Capture to Completion™ ecosystem of OWC products designed to seamlessly propel professional photographers, videographers, and content creators to the highest level of workflow performance and reliability. This OWC custom-designed app is a complete health, performance, and field upgrade management tool when using OWC Atlas memory cards with OWC Atlas readers and reader equipped products.

Health

Over time and use cycles, flash memory does wear out. Innergize verifies and reports the percentage of use life remaining. Now you can work with full confidence your OWC flash memory product will deliver the reliability you can trust.

Sanitize

Writes, deletes, and formatting all take their toll on memory cards. Innergize cleans and restores the flash memory performance of OWC memory cards so you can get the best results on every use.

Field Upgrade

When new cameras or firmware updates to existing cameras are introduced, they may not work properly with flash memory cards and drives. Innergize gives OWC memory card users the ability to quickly upgrade their firmware in the field for full compatibility, additional performance enhancements, and bug fixes for optimal reliability.

1. Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
2. Must be connected to host computer via Thunderbolt (USB-C), and cannot be used as a NAS. The Ethernet port provides the host computer with a 1GbE network connection over Thunderbolt (USB-C), but it cannot be used to access the drives over the network.
3. When using 8TB or 10TB HDDs from Seagate and connecting the device to a PC running Windows, please make sure to first install the Windows driver.
4. The DisplayPort port does not support DP++. When using a DisplayPort to HDMI adapter, make sure to use an active adapter.
5. Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers.
   Apple silicon M1 Pro, M1 Max, and M1 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt.
   Apple silicon M1 and M2 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt.
6. The following Apple silicon M1 and M2 Mac models support a single display over a Thunderbolt port:
   - MacBook Pro (13-inch, M1, 2020) - MacBookPro17,1
   - MacBook Pro (13-inch, M2, 2022) - Mac14,7
   - MacBook Air (M1, 2020) - MacBookAir10,1
   - MacBook Air (M2, 2022) - Mac14,2
   - Mac mini (M1, 2020) - Macmini9,1
7. The following Mac models provide only partial support for DisplayPort 1.4, including limiting resolution to 5K or 6K at 60Hz. Please review Apple's display specifications for your specific Mac to determine the maximum supported resolution and color depth:
   - MacBook Pro (15-inch, 2018) - MacBookPro15,1
   - MacBook Pro (13-inch, 2018, Four Thunderbolt 3 ports) - MacBookPro15,2
   - MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports) - MacBookPro15,2
   - MacBook Pro (15-inch, 2019) - MacBookPro15,1 and MacBookPro15,3
   - MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports) - MacBookPro15,4
   - MacBook Pro (16-inch, 2019) - MacBookPro16,1 and MacBookPro16,4
   - MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports) - MacBookPro16,2
   - MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports) - MacBookPro16,3
   - MacBook Air (Retina, 13-inch, 2018) - MacBookAir8,1
   - MacBook Air (Retina, 13-inch, 2019) - MacBookAir8,2
   - MacBook Air (Retina, 13-inch, 2020) - MacBookAir9,1
   - iMac (Retina 5K, 27-inch, 2019) - iMac19,1
   - iMac (Retina 4K, 21.5-inch, 2019) - iMac19,2
   - iMac (Retina 5K, 27-inch, 2020) - iMac20,1 and iMac20,2
   - Mac mini (2018) - Macmini8,1
   - Mac Pro (2019) - MacPro7,1
   - Mac Pro (Rack, 2019) - MacPro7,1
8. A firmware update is required to use OWC Gemini with OWC Innergize software. Please consult the "Innergize for PC: Firmware Update" or "Innergize for Mac: Firmware Update" guide for download and installation instructions.
9. SD cards inserted into the OWC Gemini will not be recognized by Windows Disk Management or applications after being safely removed. Power cycle the entire OWC Gemini by disconnecting the power source. This will allow the OWC Gemini to create a new card session resulting in Windows recognizing the SD card.
