Omada SG3428XPP-M2 24× 2.5G PoE++ L2+ Managed Switch with 4× 10G SFP+

SG3428XPP-M2
*** Out of stock ATM, Available On Backorder ***
$1,060.40
Tax included

SG3428XPP-M2 V2

The Omada SG3428XPP-M2 V2 is a high-performance L2+ managed switch featuring 24× 2.5GbE PoE++ ports, 4× 10G SFP+ uplinks, and a total PoE power budget of up to 770W. Designed for high-density business networks, it delivers both power and data to devices such as WiFi 6/6E/7 access points, IP cameras, and VoIP systems, eliminating the need for separate power infrastructure. Integrated with the Omada SDN platform, it provides centralized cloud management along with advanced networking features for scalable, reliable, and efficient deployments.

Key Features

  • ✓24× 2.5GbE PoE++ ports (high-power output)
  • ✓4× 10G SFP+ uplinks
  • ✓ 770W total PoE budget
  • ✓Centralised cloud management via the web or the Omada app
  • ✓Standalone management via web, CLI, SNMP, and RMON

Related Products & Accessories



Omada SG3428XPP-M2 24× 2.5G PoE++ L2+ Managed Switch with 4× 10G SFP+

Planet GS-6320-24UP2T2XV
The TP-Link Omada SG3428XPP-M2 V2 is an enterprise-grade L2+ managed switch designed for high-performance and high-density network environments. It features 24 multi-gigabit 2.5GbE PoE++ ports, delivering both high-speed data and power to demanding devices such as WiFi 6/6E/7 access points, IP cameras, and VoIP systems.

With a total PoE power budget of up to 770W, the switch is capable of supporting large deployments without the need for additional power infrastructure.

The inclusion of 4× 10G SFP+ uplink ports enables ultra-fast backbone connectivity, ensuring efficient data aggregation and scalability for modern networks.

Integrated into the Omada Software Defined Networking (SDN) platform, the SG3428XPP-M2 V2 supports centralized cloud management via web or Omada Controller. Advanced Layer 2+ features such as VLAN, QoS, ACL, and static routing provide flexibility, enhanced security, and optimized traffic control.

This switch is ideal for enterprise, campus, and high-density wireless environments requiring reliable performance, high PoE capacity, and centralized network management.

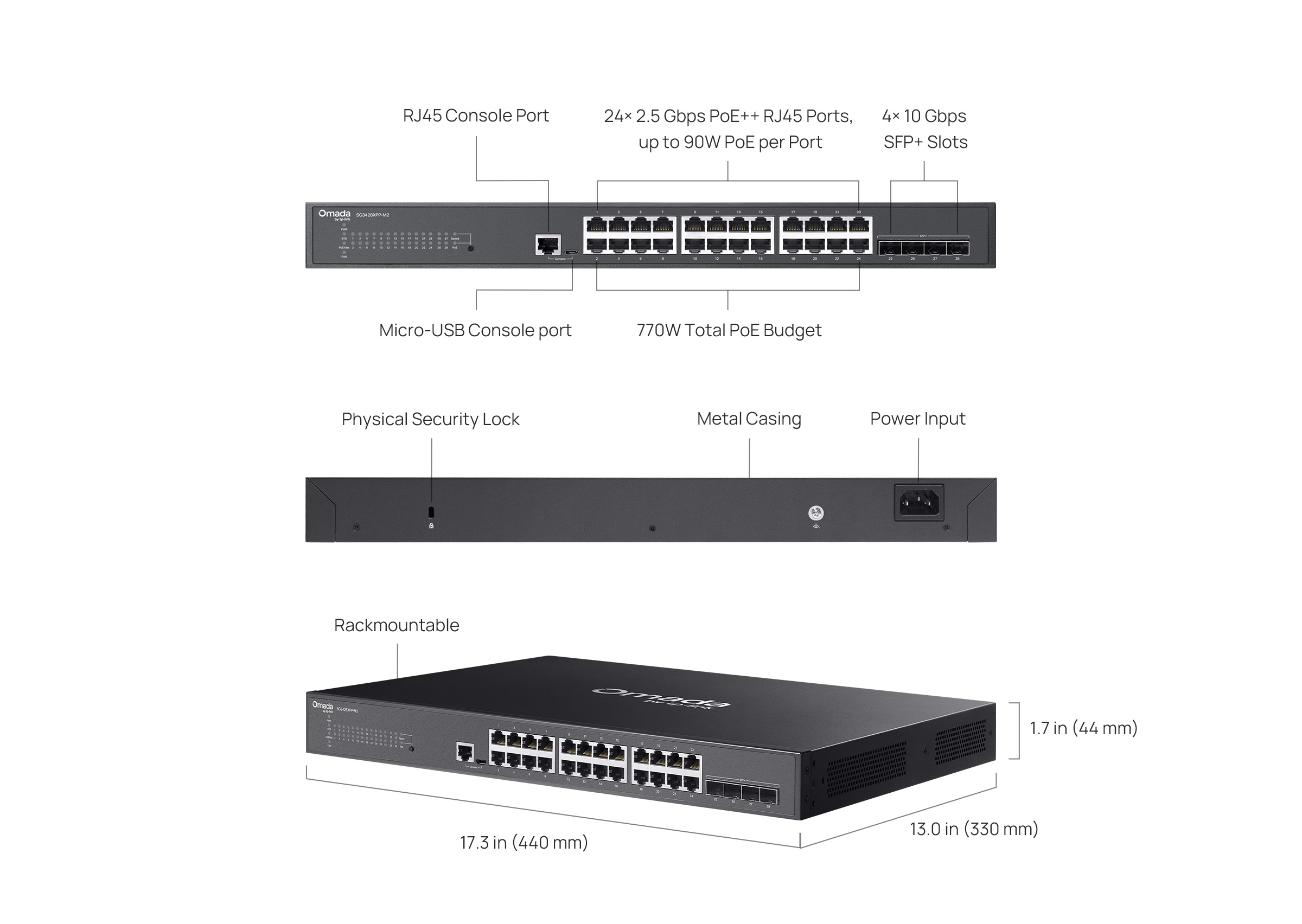

Technical Specifications

Specification Value
Ports 24 × 2.5GbE PoE++ RJ45 ports
Uplink Ports 4 × 10G SFP+ slots
Console Ports 1 × RJ45 console port
1 × Micro-USB console port
Switching Capacity 200 Gbps
Packet Forwarding Rate 148.8 Mpps
MAC Address Table 32K entries
Jumbo Frame 9 KB
PoE Standard IEEE 802.3bt/at/af
PoE Output Up to 90W per port
PoE Power Budget 770W
Management Omada SDN (Cloud, Hardware & Software Controller)
Management Interfaces Web GUI, CLI, SNMP v1/v2c/v3
Layer Features L2+ (VLAN, QoS, ACL, Static Routing)
Fan 3 fans
Power Supply 100–240V AC, 50/60Hz
Surge Protection 6 kV
Dimensions 440 × 330 × 44 mm
Mounting Rack Mountable
Operating Temperature -5°C to 45°C
Operating Humidity 10–90% non-condensing
Certifications CE, FCC, RoHS
