EAP772-Outdoor
Last items in stock
$346.50
Tax included

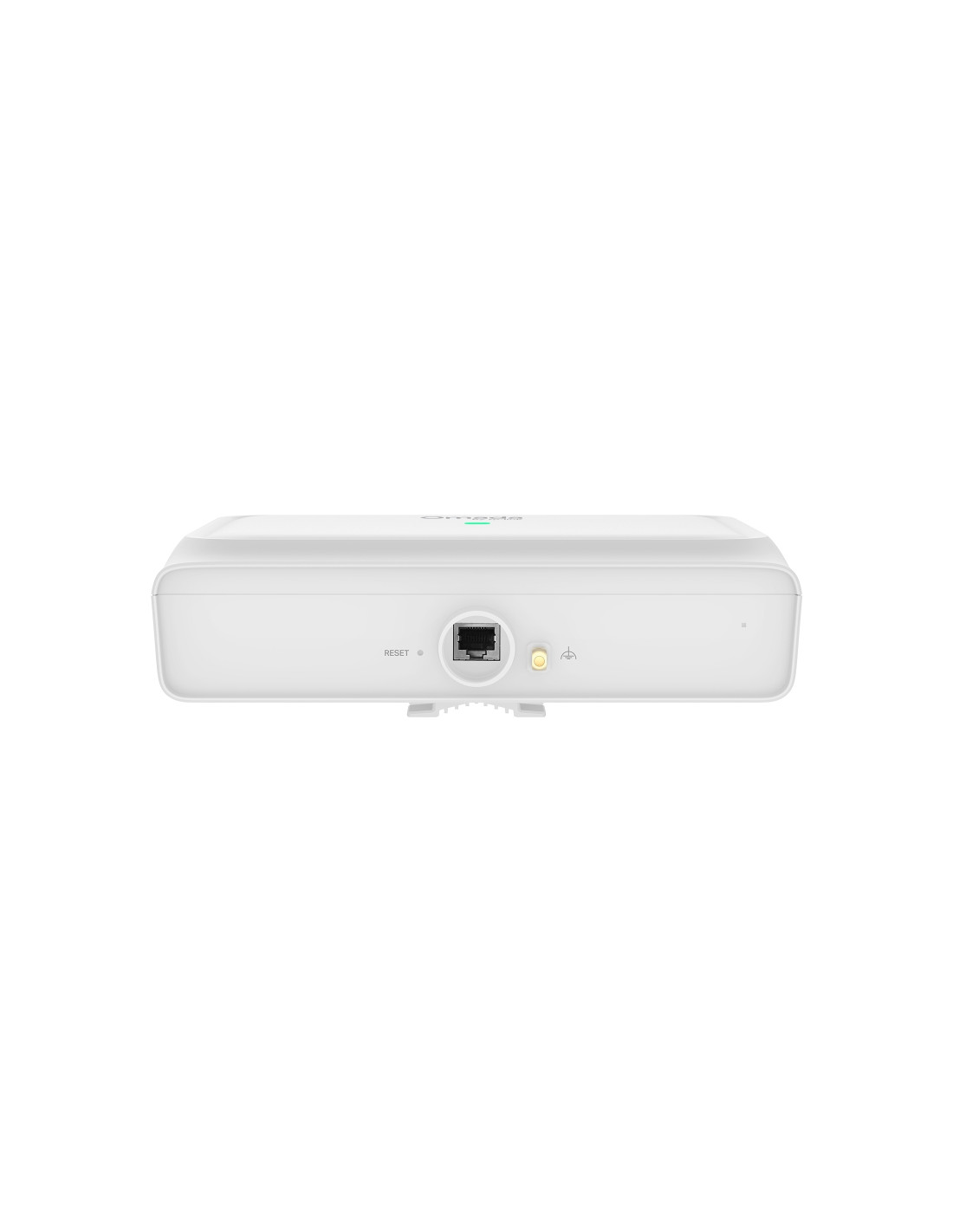

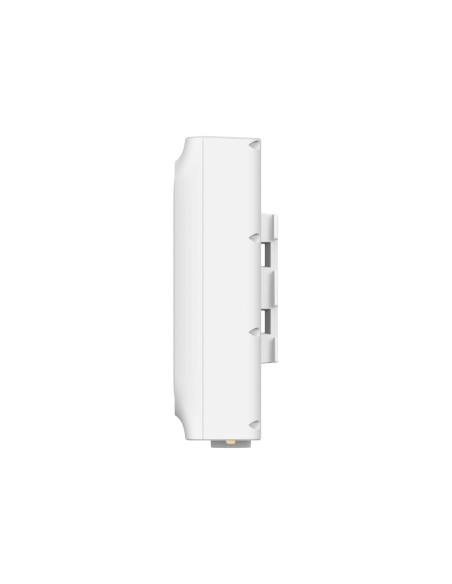

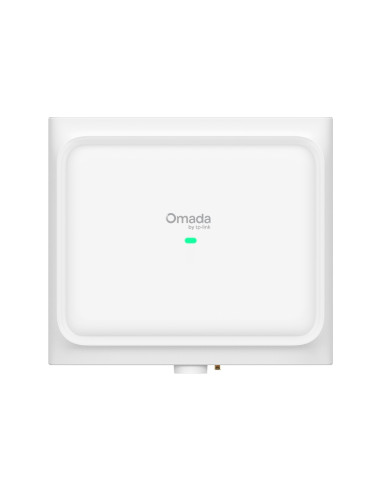

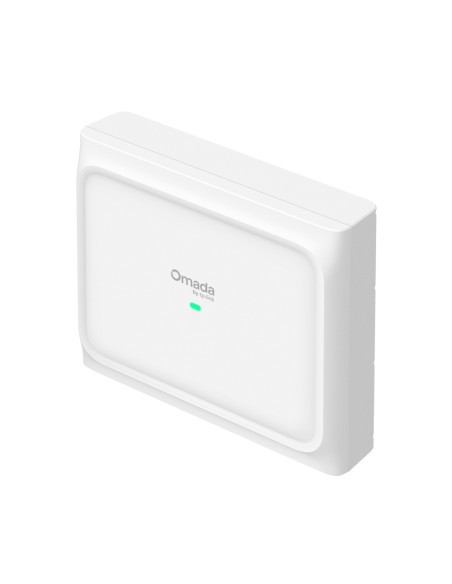

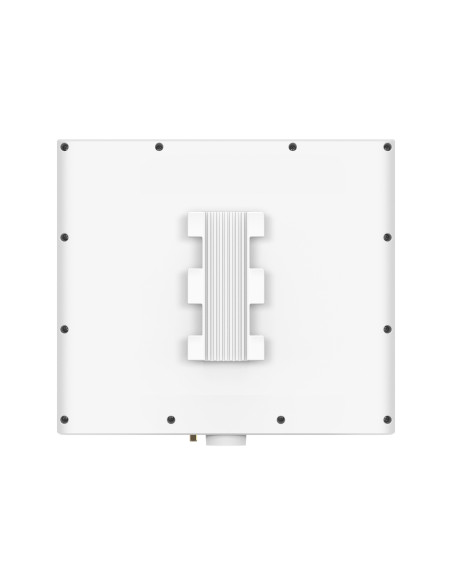

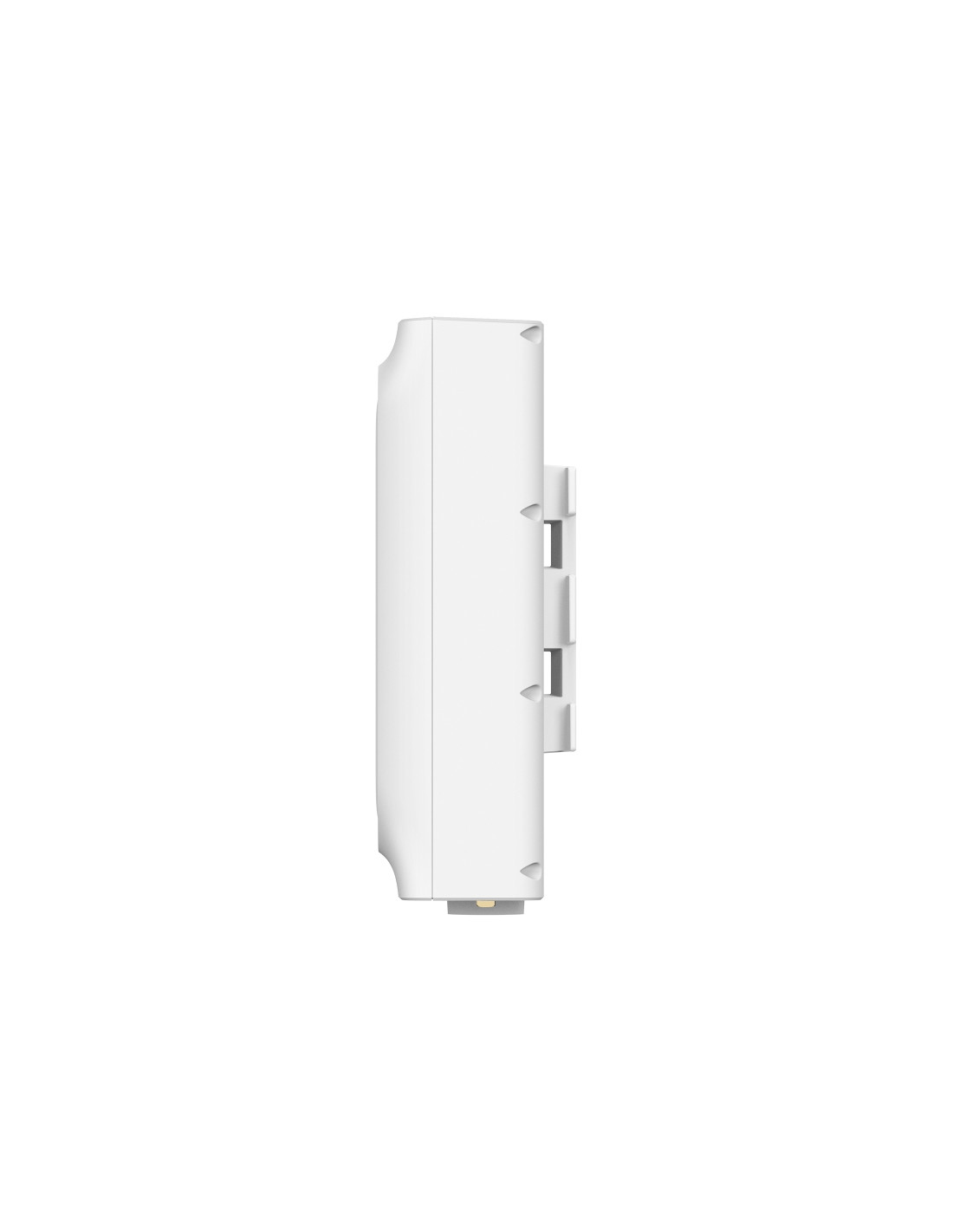

Omada EAP772-Outdoor V1.20

Omada Tri-Band Omnidirectional BE9300 Indoor/Outdoor Wi-Fi 7 Access Point

Key Features:

  • 6-Spatial Stream Tri-Band Wi-Fi 7
  • Omni-directional 6 GHz with AFCâ–³
  • IP68 Weatherproof Enclosure
  • Omada Roaming and Mesh
  • Centralised Management via App or Web
  • 380+ Connected Devices
  • 300m2 (3,200 ft2) Recommended Coverage*
  • 1× 2.5GbE PoE+ In RJ45 Port

Related Products & Accessories



EAP772-Outdoor Omada V1.20 Tri-Band Omnidirectional BE9300 Wi-Fi 7 Indoor/Outdoor Access Point IP68, 2.5G PoE+

Product Specifications:

HARDWARE FEATURES
Interface 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
Button Reset
Power Supply 802.3at PoE
Max. Power Consumption 21.5W (for PoE)
Dimensions (W x D x H) 9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna 2.4 GHz: 2× 4 dBi
5 GHz: 2× 6 dBi
6 GHz: 2× 6 dBi
GNSS L1 (1575.42 MHz) receiver (GPS, Galileo, GLONASS, BeiDou)
Receive sensitivity: -164 dBm (tracking)
Integrated 3 dBi omnidirectional antennas
Bluetooth BLE 5.2
Weatherproof Enclosure IP68
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 300 m² (3,200 ft²) Recommended Omnidirectional Coverage
Concurrent Clients 380+**
Wireless Standards IEEE 802.11be/ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz, 6 GHz
Signal Rate 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions 4K-QAM, OFDMA, MU-MIMO, MLO, 320MHz, Beamforming, Band Steering, Load Balance, Airtime Fairness, Rate Limit
Multiple SSIDs (24 total, 8 per band)
Automatic Channel Assignment
Transmit Power Control (dBm adjustment)
QoS (WMM)
Enable/Disable Wireless Radio
Omada Mesh
Seamless Roaming (802.11k/v/r)
Reboot Schedule, Wireless Schedule
Wireless Statistics (SSID/AP/Client)
Static IP / Dynamic IP
Wireless Security Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA/WPA2/WPA3 Personal & Enterprise, OWE
Transmission Power CE:
Indoor: <20 dBm (2.4 GHz), <23 dBm (5 GHz band 1 & 2), <28 dBm (5 GHz band 3), <23 dBm (6 GHz)
Outdoor: <20 dBm (2.4 GHz), <28 dBm (5 GHz band 3)

FCC:
Indoor: <25 dBm (2.4/5/6 GHz)
Outdoor: <25 dBm (2.4/5/6 GHz)
MANAGEMENT FEATURES
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes (Requires Omada Controller)
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes (Requires Omada Cloud-Based Controller)
OTHERS
Certification CE, FCC, RoHS
Package Content Access Point EAP772-Outdoor
Waterproof Kit
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP/Vista/7/8/10/11, Linux
Environment Operating Temperature: -30–70 ℃ (-22–158 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH (non-condensing)
Storage Humidity: 5–90% RH (non-condensing)

EAP772-Outdoor
