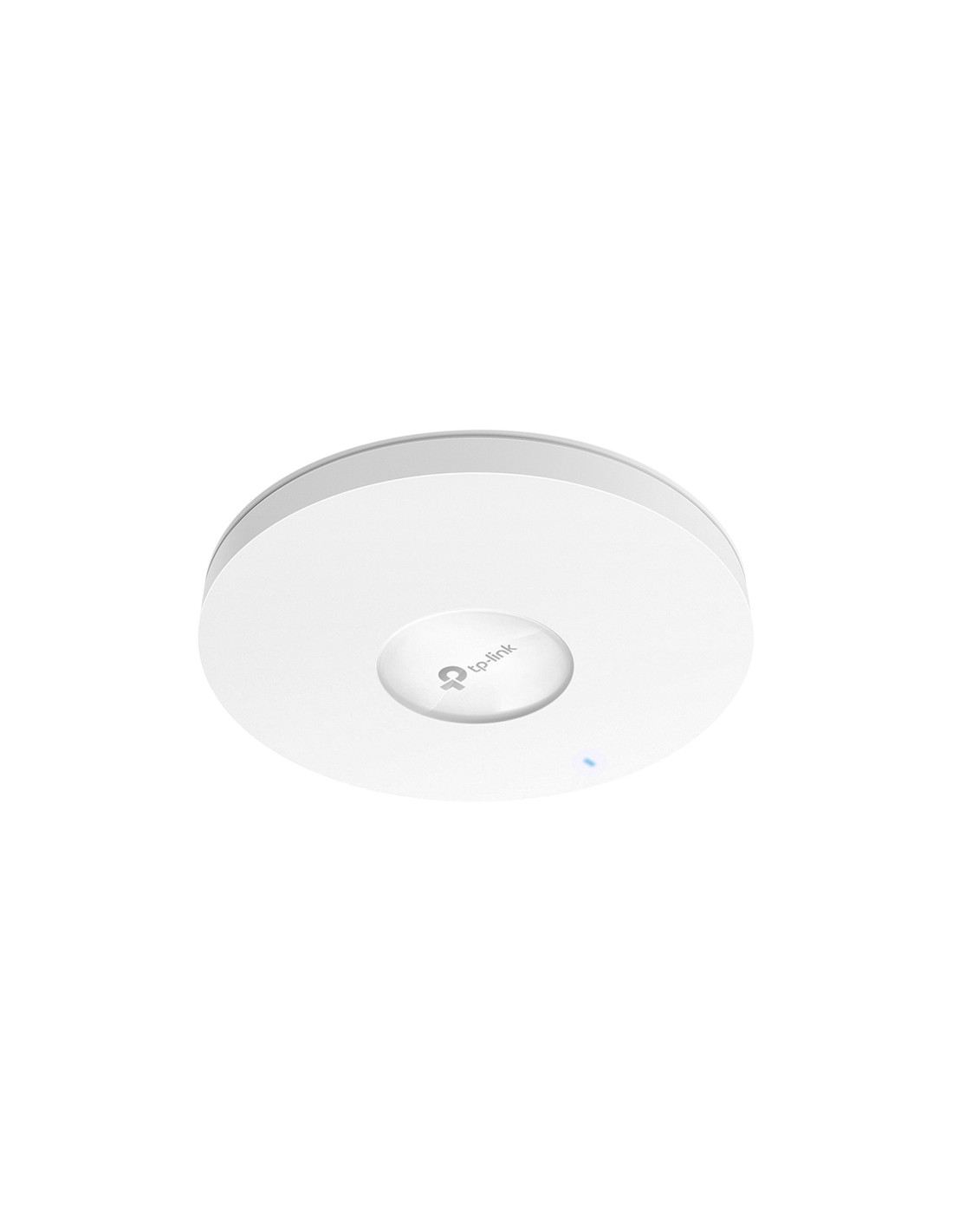

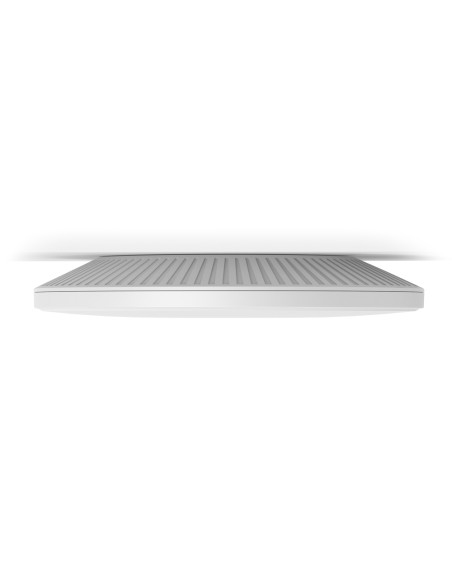

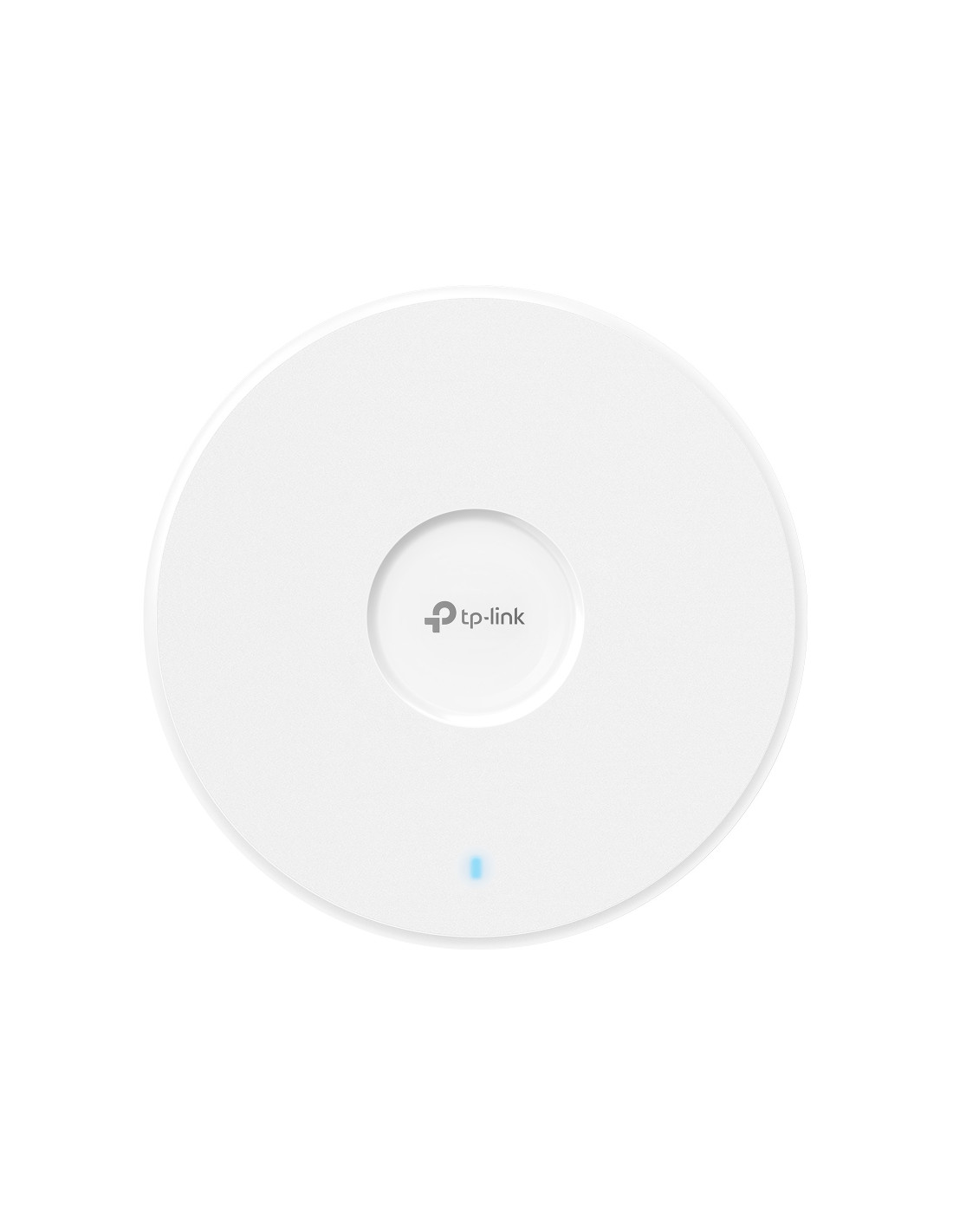

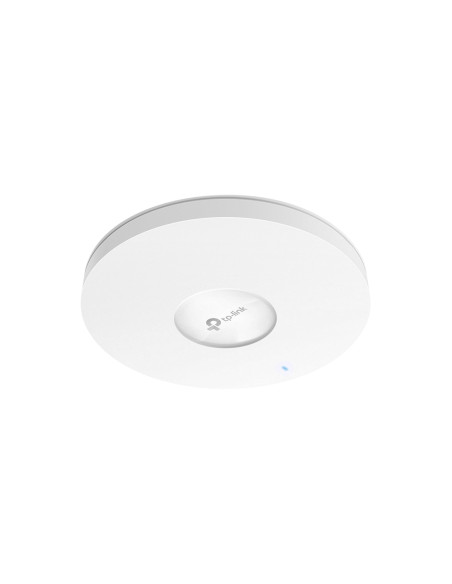

Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point (2.5 GbE, PoE+)
Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point 2.5 GbE PoE+
Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point 2.5 GbE PoE+
Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point 2.5 GbE PoE+
Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point (2.5 GbE, PoE+)
Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point 2.5 GbE PoE+
Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point 2.5 GbE PoE+
Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point 2.5 GbE PoE+

Omada EAP772 V2 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point 2.5 GbE PoE+

EAP772
In Stock
$328.90
Tax included

Omada EAP772 V2

high-performance tri-band Wi-Fi 7 ceiling mount access point, delivering combined multi-gigabit wireless speeds with a 2.5 GbE PoE+ uplink. Designed for modern enterprise environments, it supports centralized Omada SDN management, advanced Wi-Fi 7 features such as Multi-Link Operation (MLO), Mesh networking, and seamless roaming

Key Features:

  • Next-Gen WiFi 7
  • Wi-Fi Speeds up to 9335 Mbps
  • Multi-Link Operation (MLO)
  • 1× 2.5G RJ45 Port
  • PoE Power
  • Ultra-Thin Design
  • Centralized Cloud Management
  • Omada Mesh Technology

Related Products & Accessories



Omada EAP772 V2 Omada BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point 2.5 GbE PoE+

Product Specifications:

HARDWARE FEATURES
Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/2.5A DC
Max. Power Consumption 25.44 W (PoE)
22.57 W (DC)
Dimensions (W × D × H) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna 2.4 GHz: 2× 4.0 dBi
5 GHz: 2× 5.0 dBi
6 GHz: 2× 5.0 dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.

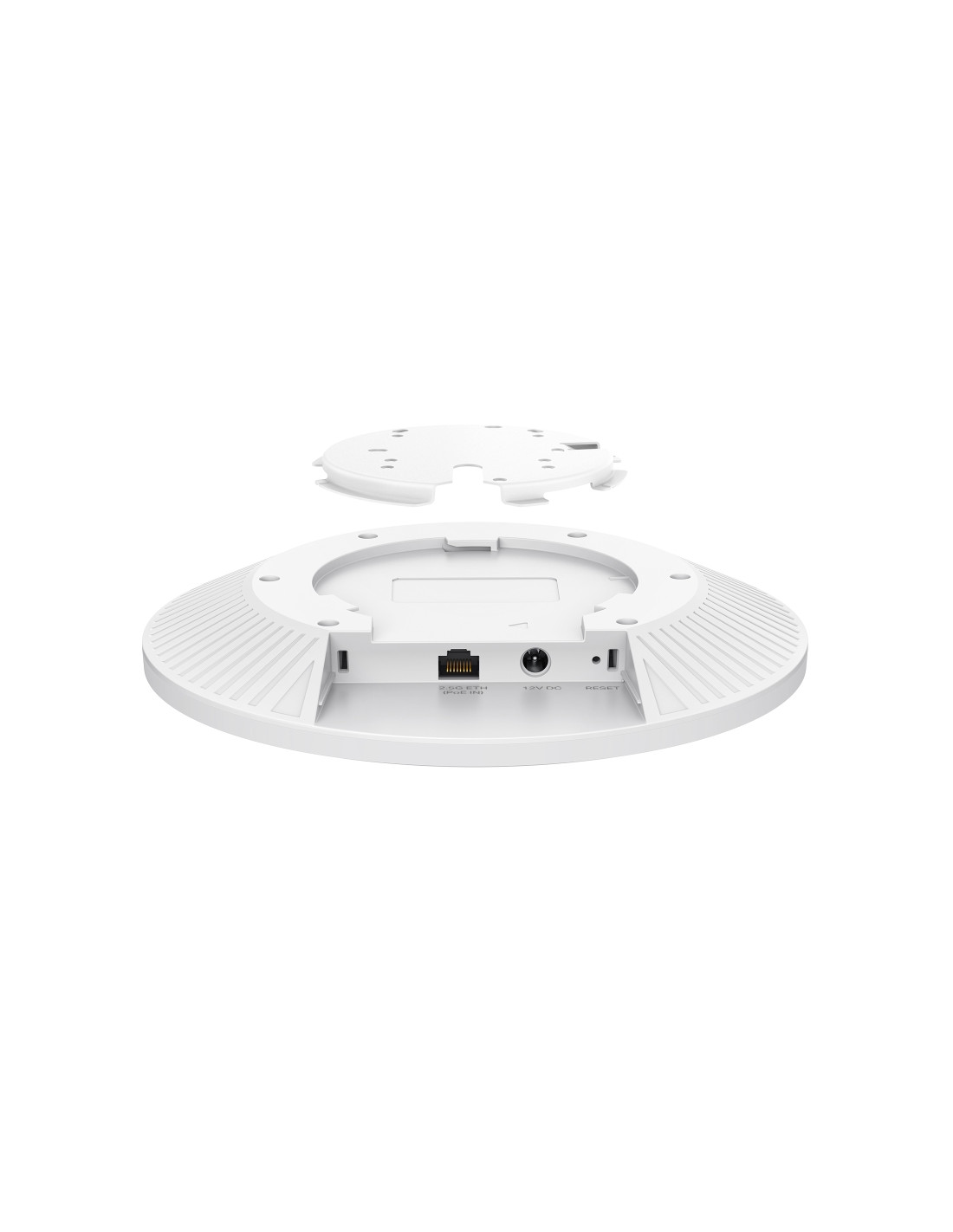

Mounting Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage 140㎡ (1500 ft²)
Concurrent Clients 380+
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions MLO
4K-QAM
Seamless Roaming (802.11k/v/r)
MU-MIMO
EHT320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDs: 24 (8 per band)
Wireless Schedule
Reboot Schedule
QoS (WMM)
Rate Limit
Static IP / Dynamic IP
RADIUS Accounting
MAC Authentication
Wireless Security Captive Portal Authentication
Access Control
Maximum MAC Filters: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA/WPA2/WPA3 – Personal & Enterprise
Transmission Power < 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)
MANAGEMENT FEATURES
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes (Requires OC300, OC200, Software Controller, or Cloud-Based Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local / Remote Syslog
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Content EAP772
Installation Guide
Ceiling/Wall Mounting Kit
Note: Power Adapter NOT included
Environment Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
EAP772
