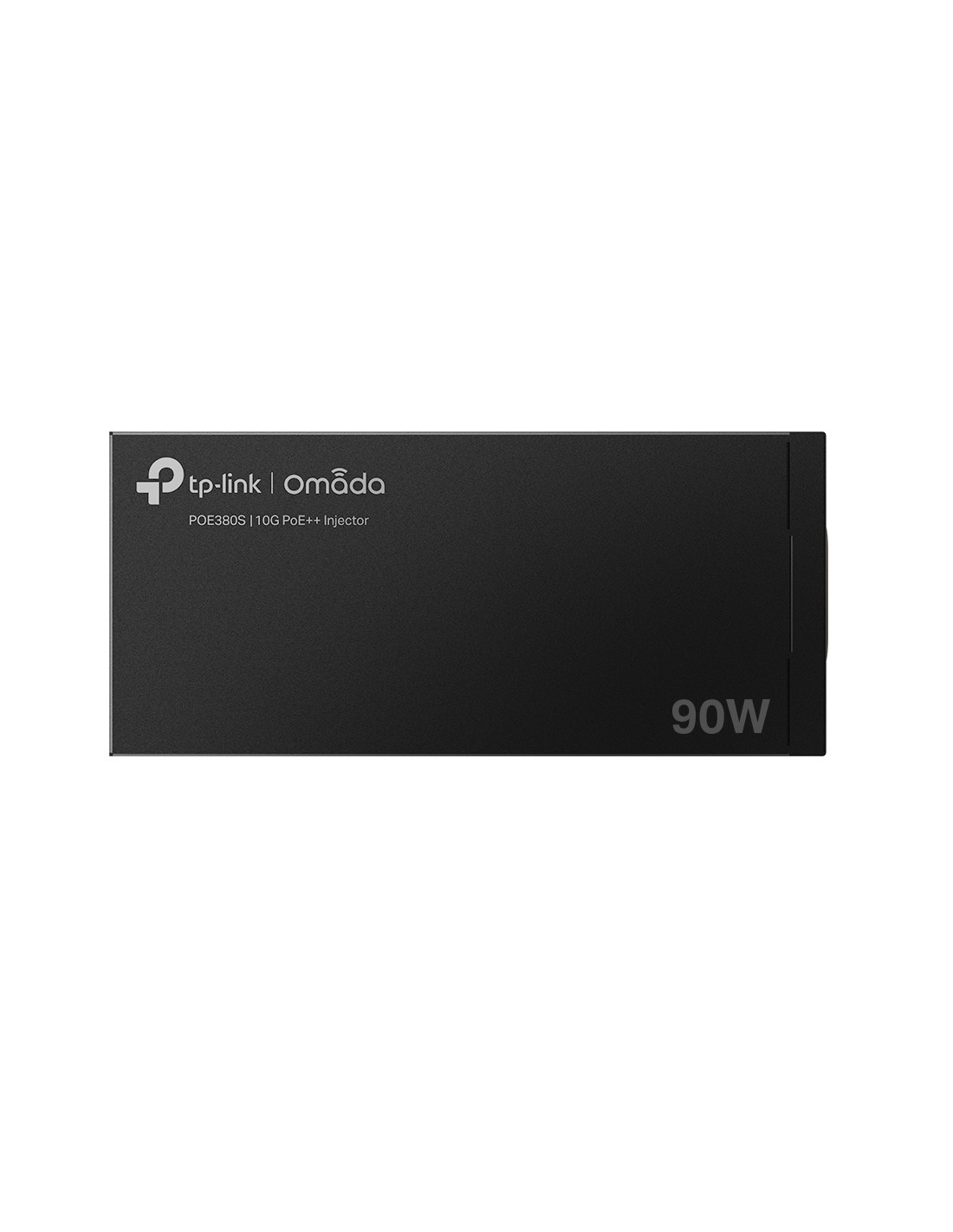

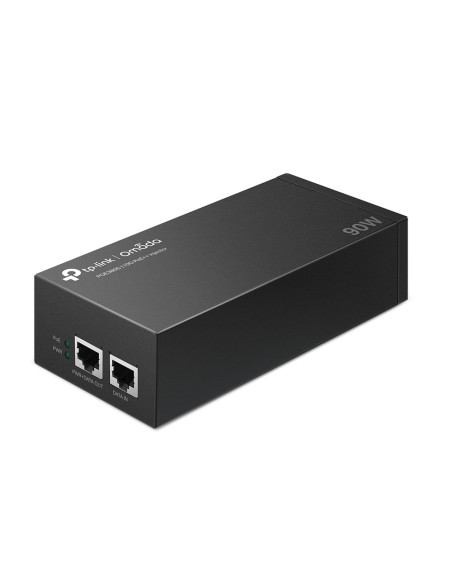

Omada POE380S 10G PoE++ Injector 90W IEEE 802.3bt

POE380S
Last items in stock
$121.00
Tax included

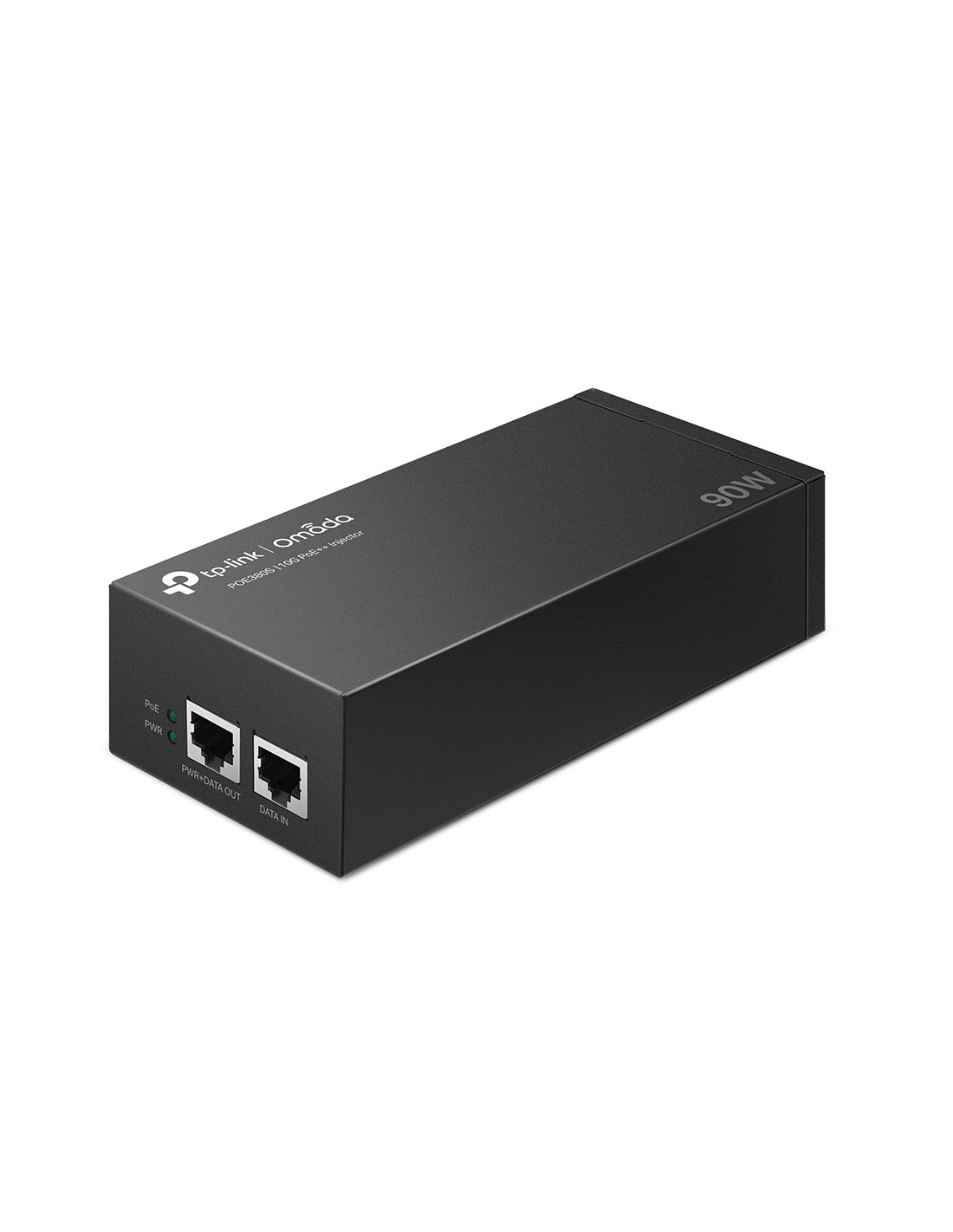

Omada POE380S PoE++ Injector

The Omada POE380S is a 10 Gigabit PoE++ injector that delivers up to 90W of IEEE 802.3af/at/bt compliant power and high-speed data over a single Ethernet cable. Featuring dual multi-gigabit RJ45 ports with automatic speed negotiation, intelligent power detection, and Plug & Play operation, it provides an easy and cost-effective way to add PoE++ capability to existing networks. Its durable metal enclosure and flexible desktop or wall-mount design make it ideal for powering WiFi 7 access points, PTZ IP cameras, IP phones, and other high-power PoE devices.

Key Features

  • ✓Delivers Up to 90W IEEE 802.3bt PoE++ Power
  • ✓Dual 10G Multi-Gig RJ45 Ports with Auto-Negotiation
  • ✓Compatible with IEEE 802.3af/at/bt PoE Devices
  • ✓Plug & Play Installation with Intelligent Power Detection
  • ✓Durable Metal Enclosure for Desktop or Wall-Mount Deployment
  • ✓Combines 10G Multi-Gig Data and PoE++ Power over a Single Ethernet Cable

Related Products & Accessories



Omada POE380S 10G PoE++ Injector 90W IEEE 802.3bt

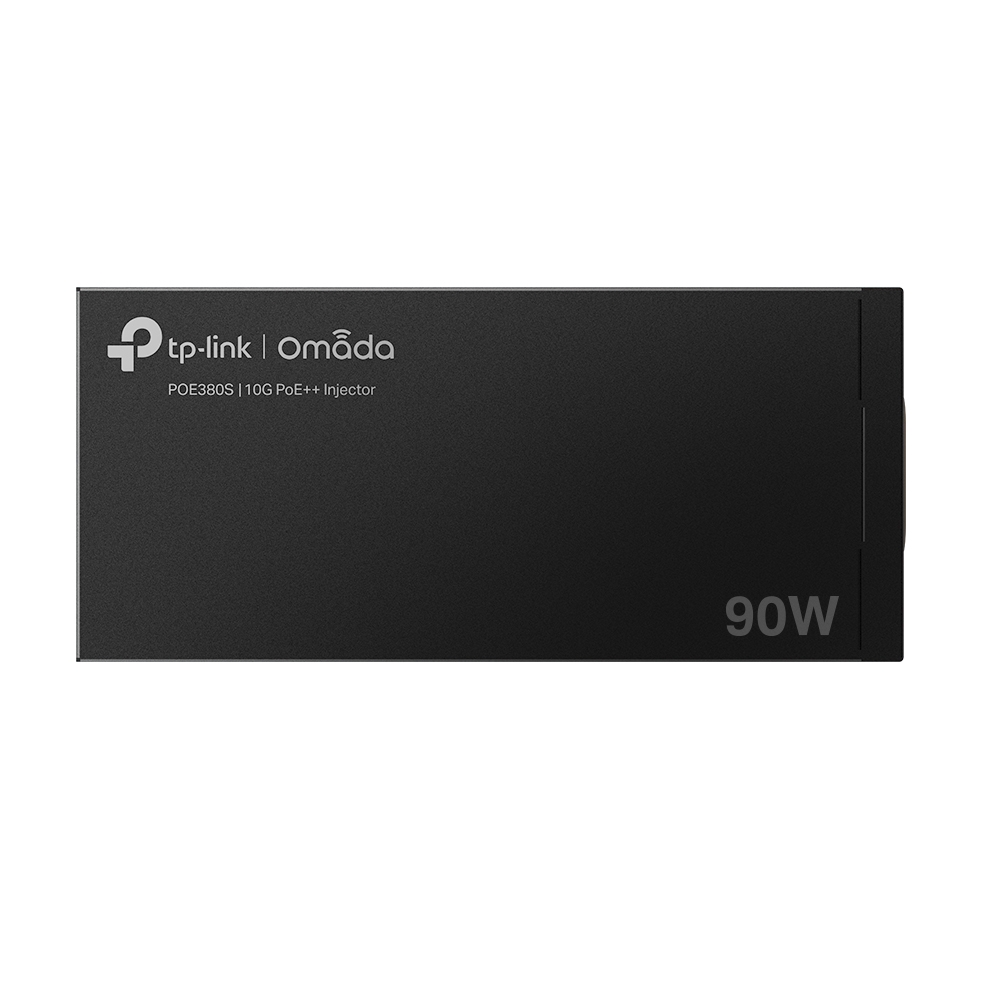

omada POE380S

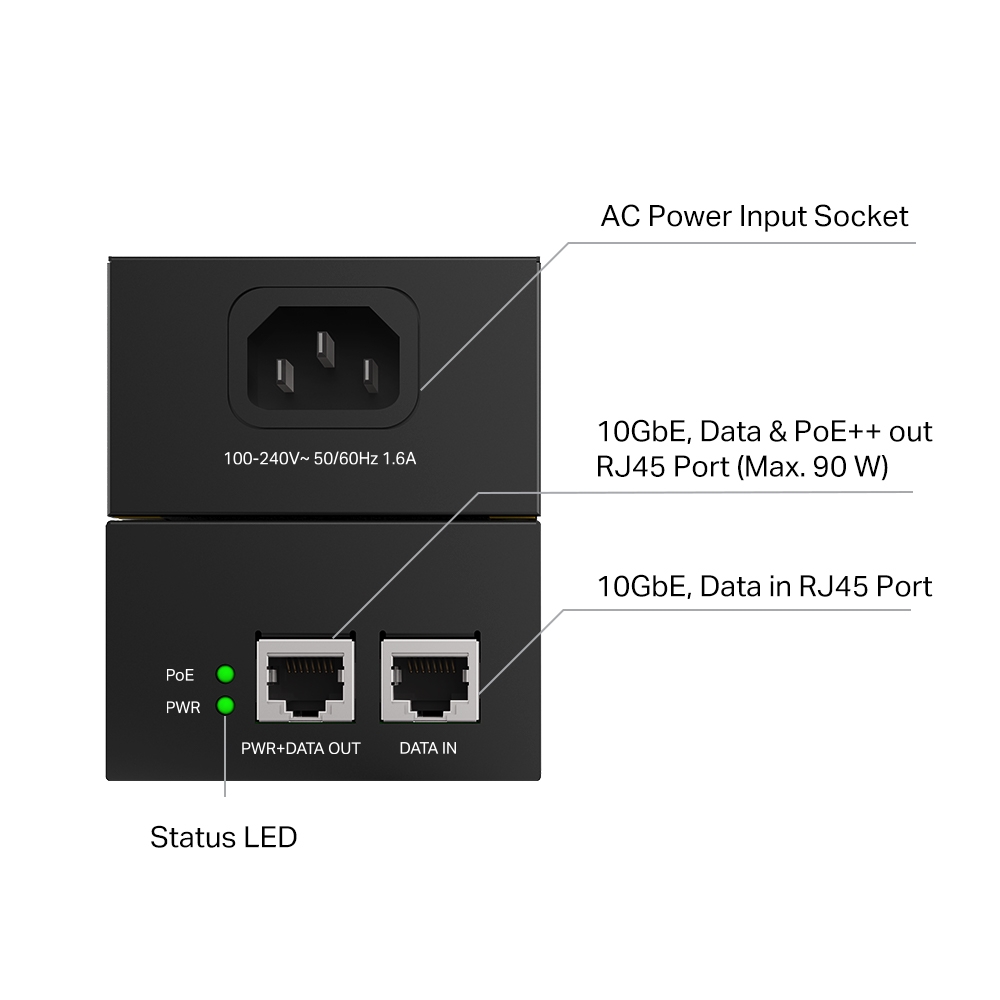

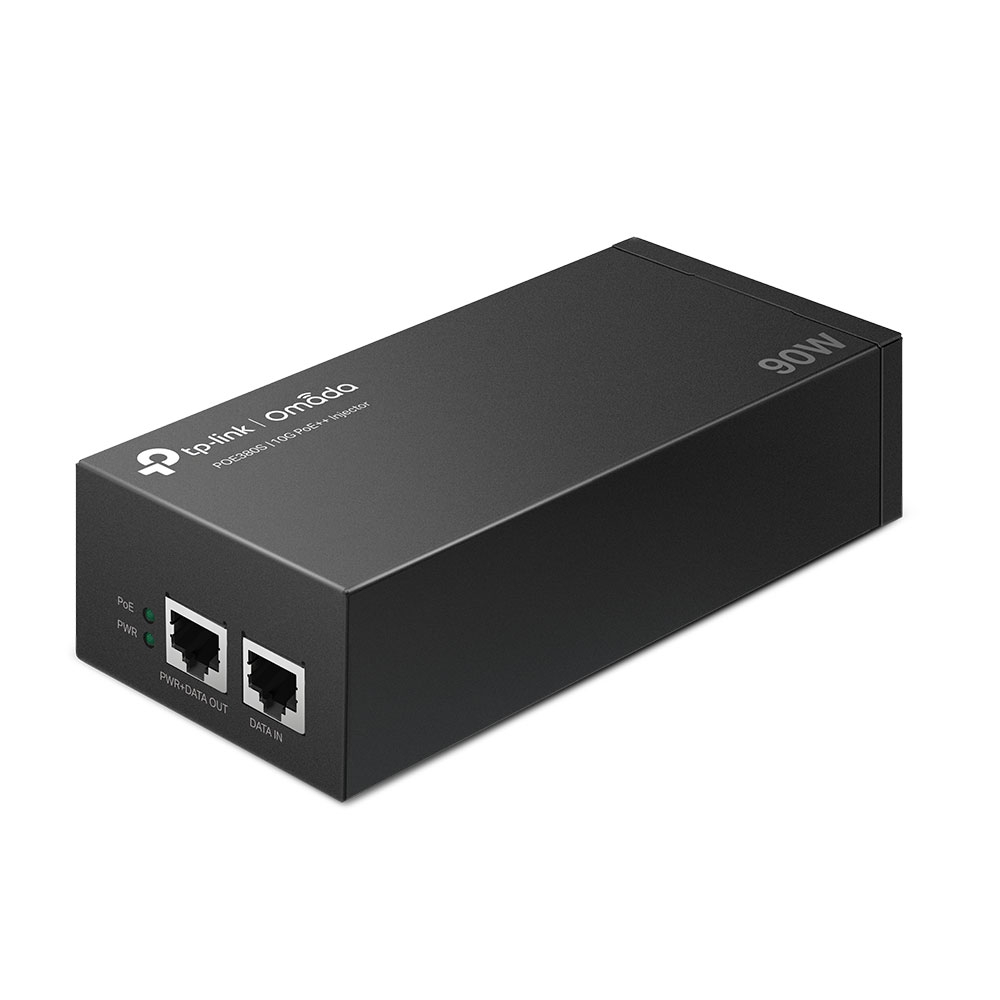

omada POE380S view 2omada POE380S view 3

Technical Specifications

Specification Value
Hardware Features
Standards & Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

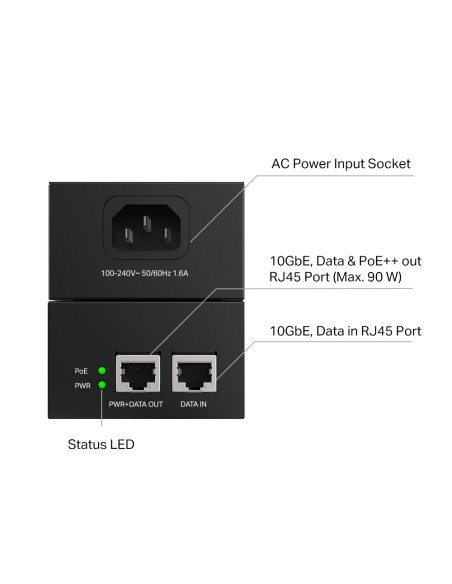

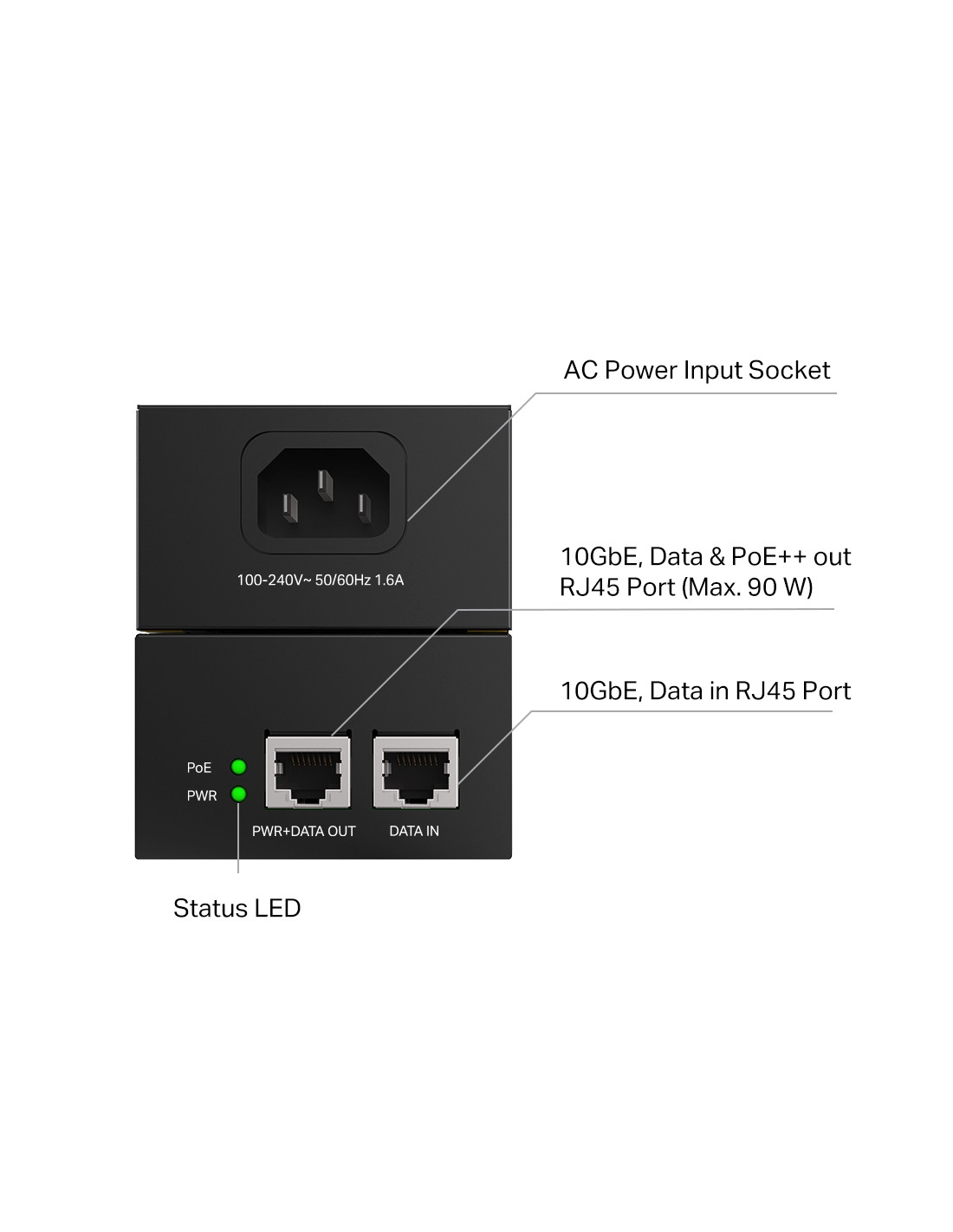

Interfaces • 1 × 10G/5G/2.5G/1G/100M/10M RJ45 Data-In Port
• 1 × 10G/5G/2.5G/1G/100M/10M RJ45 PoE++ Data-Out Port (Up to 90W)
• 1 × AC Power Socket
Supported Network Media • 10BASE-T: Cat 3, 4, 5 UTP or EIA/TIA-568 100Ω STP (Up to 100 m)
• 100BASE-TX: Cat 5, 5e UTP or EIA/TIA-568 100Ω STP (Up to 100 m)
• 1000BASE-T: Cat 5, 5e, 6 UTP (Up to 100 m)
Power Requirements Input: 100–240V AC, 50/60Hz, 1.6A
Output: Automatic Power Detection (Up to 90W)
Key Functions • Automatic IEEE 802.3af/at/bt Powered Device Detection
• Automatic Power Requirement Detection
• Plug & Play Operation
• Desktop or Wall-Mount Installation
LED Indicators Power, PoE
Dimensions (W × D × H) 155 × 70 × 42 mm (6.1 × 2.8 × 1.7 in)
General Information
Certifications FCC, CE, RoHS
Package Contents • Omada POE380S
• Power Cord
• Installation Guide
Environmental Specifications Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% RH (Non-Condensing)
Storage Humidity: 5% to 90% RH (Non-Condensing)
POE380S
