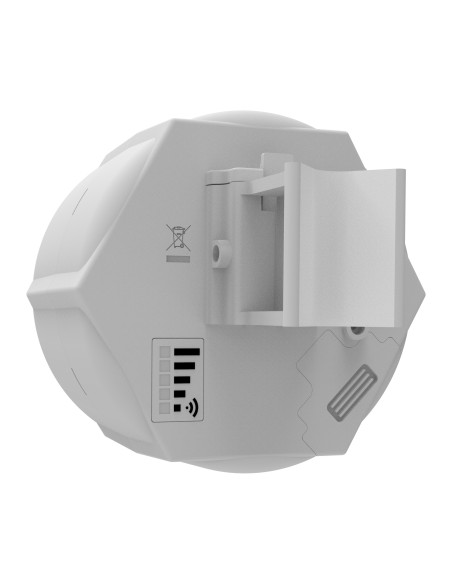

MikroTik RBSXTR&EP06-E SXT LTE Cat 6 Telstra Certificated Modem kit

MikroTik RBSXTR&EP06-E SXT LTE Cat 6 Telstra Certificated Modem kit

Name: MikroTik RBSXTR&EP06-E SXT LTE Cat 6 Telstra Certificated Modem kit
Brand: MikroTik
SKU: RBSXTR&EP06-E
Price: 334.76 AUD
Availability: OutOfStock

Reference RBSXTR&EP06-E

Out Of Stock

$334.76

Tax included

RBSXTR&EP06-E

Compatible with Australian LTE Networks

Affordable connectivity in remote areas. Even if your phone has no reception at all, SXT LTE6 kit can deliver due to its advanced LTE chip design and high-gain antenna.

This device is an absolute staple of affordable connectivity in remote areas. Even if your phone has no reception at all, our SXT LTE6 kit can still deliver due to its advanced LTE chip design and high-gain antenna.

There are two Ethernet ports. Ethernet port #1 has PoE-in. And Ethernet #2 has PoE-out. You can use it to power another device. Fewer cables to worry about in your sweet cabin in the woods!

We’ve included two Micro-SIM slots – for backup. It never hurts to have extra options when it comes to mobile network coverage. Also, the Category 6 LTE modem enables carrier aggregation, allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there are a lot of mobile users in the area. It offers better responsiveness in a crowded environment. And higher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

When it comes to powering, SXT LTE6 kit supports a wide voltage range of 18-57V with full 802.3af/at compliance.

Quantity	Unit price	You Save
5	$300.28	$172.40
10	$291.24	$435.19
15	$286.22	$728.11
20	$284.55	$1,004.29

RBSXTR&EP06-E - MikroTik SXT LTE Cat 6 Telstra Certificated Modem kit

Specifications

Details
Product code	SXTR&EP06-A
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
RouterOS license	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	21 W
Max power consumption without attachments	5 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether2
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	400 mA
Max total out (A)	600 mA
Total output current	600mA

Mobile

EP06 module works with all AU LTE bands.

LTE-FDD:	B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD:	B38/B40/B41
2 × CA:	B1+B1/B5/B8/B20/B28;
	B3+B3/B5/B7/B8/B20/B28;
	B7+B5/B7/B8/B20/B28;
	B20+B32; B38+B38; B40+B40; B41+B41
WCDMA:	B1/B3/B5/B8
GNSS:	GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)

Ethernet

Details
10/100 Ethernet ports	2

Peripherals

Details
Number of SIM slots	2 Modem (Micro SIM)
MiniPCI-e slots	1

Other

Details
Mode button	Yes

Device Type: Radio
Device Features: Outdoor
PoE Powered
Ethernet Ports: 2 Ports 10/100

EAN13 4752224004567

MPN RBSXTR&EP06-E
