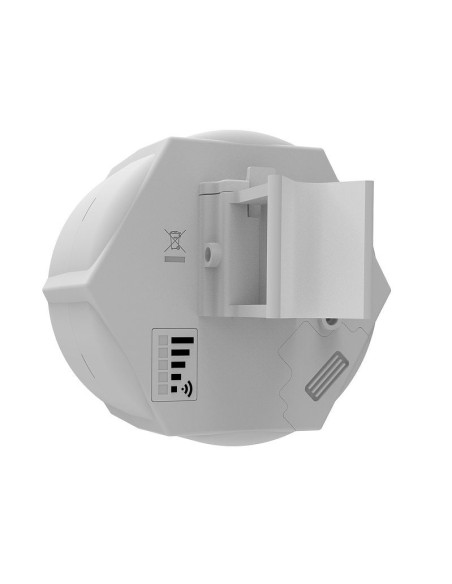

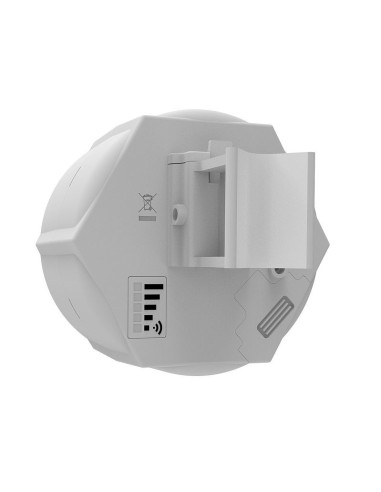

MikroTik SXT LTE Cat 6 Modem kit
MikroTik SXT LTE Cat 6 Modem kit
MikroTik SXT LTE Cat 6 Modem kit
MikroTik SXT LTE Cat 6 Modem kit

MikroTik SXTR&FG621-EA ( 2 Ethernet ports PoE-in & PoE-out , 12-57 V, 802.3af/at +2 Micro SIM slots )

SXTR&FG621-EA
In Stock
$204.93
Tax included

SXTR&FG621-EA

Affordable mobile internet connectivity in remote areas.

SXT LTE6 kit is an update of our timeless device for remote locations that are within cellular network coverage. It features the same modern Category 6 LTE chip that you might have seen in our latest devices – like the popular Chateau LTE6 ax! Not only this LTE chip can provide reliable Internet connectivity for your building even where cell phones fail, it also allowed us to drive the price for this kit way down.

Mount an SXT outside your home – and always stay connected!

Features:

  • Carrier Aggregation for a better signal
  • Routeros V7
  • Our latest CAT6 LTE Modem
  • 2X2 Mimo DL
  • Connect even where your phone fails
  • 2X ethernet ports
  • Poe-in & Poe-out
  • B28 Band support

Quantity Unit price You Save
5 $183.82 $105.54
10 $178.29 $266.41
15 $175.22 $445.72
20 $174.19 $614.79

Related Products & Accessories



SXTR&FG621-EA (2 Ethernet ports PoE-in & PoE-out , 12-57 V, 802.3af/at +2 Micro SIM slots)

SXTR&FG621-EA, device Weatherproof. Unobtrusive. Snow-resistant. With a modern LTE6 card for uninterrupted mobile connectivity.

We’ve included two Micro-SIM slots – for backup. It never hurts to have extra options when it comes to mobile network coverage. Also, the Category 6 LTE modem enables carrier aggregation, allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there are a lot of mobile users in the area. It offers better responsiveness in a crowded environment. And higher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!

Unit is shipped with a 24 V power supply, but can support a wide range of 12-57 V and is 802.3af/at compliant.

Specifications

Details
Product code SXTR&FG621-EA
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
RouterOS license 3
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 22 W
Max power consumption without attachments 5 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 600 mA

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL 2x2
MIMO UL 1x1
LTE FDD bands 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 1 (2100MHz) / 3 (1800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC 86335904

Ethernet

Details
10/100 Ethernet ports 2

Peripherals

Details
Number of SIM slots 2 Modem (Micro SIM)
MiniPCI-e slots 1

Other

Details
Mode button Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 54
Device Type
LTE/5G
Wireless System
4G Mobile
Ethernet Ports
2 Ports 10/100
SIM Card
Micro-Sim
PoE in
Active
PoE out
Passive
4752224008916
SXTR&FG621-EA
