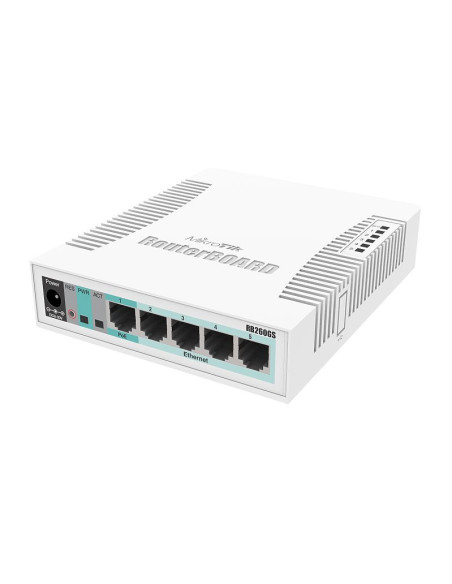

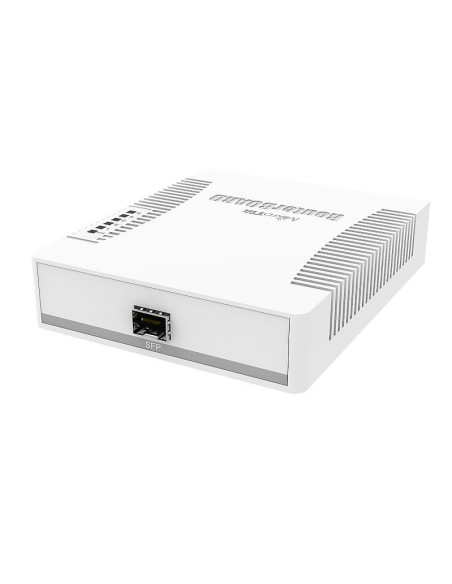

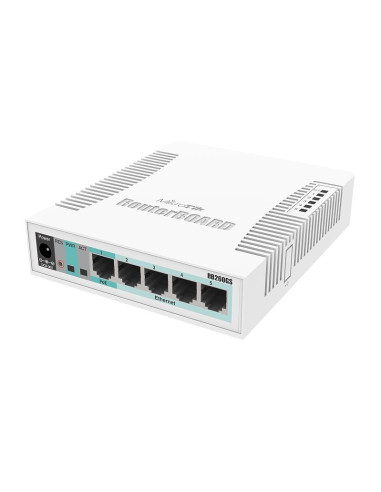

MikroTik CSS106 5x GbE + 1x SFP Managed Desktop Switch
The CSS106-5G-1S or RB260GS from MikroTik is a cost-effective small office or home cloud smart switch that comes in a plastic desktop case and features (5) Gigabit Ethernet smart switching ports and (1) SFP port. This device supports passive power over Ethernet.
The MikroTik cloud smart switch series is powered by SwitchOS, a full-featured switching operating system accessible via web browser with features such as port-to-port forwarding, application of MAC filters, configuration of VLANs, traffic mirroring, bandwidth limitation, and adjustment to some MAC and IP header fields.
RB260GS - MikroTik CSS106 5x GbE + 1x SFP Managed Desktop Switch
Note: Please do not use "ACL" feature with RB260GS under routerOS v1.7. Upgrade SwOS to the latest version.
CPU: Taifatech TF470
Memory: Embedded 96K SRAM
Ethernet: (5) 10/100/1000 Ethernet ports, Atheros switch AR8327, (1) fixed Gigabit Ethernet SFP cage (Mini-GBIC; SFP module not included)
Power Options: PoE: 8-30V DC on Ether1 (non 802.3af). Jack: 8-30V DC
Dimensions: 4.5" x 3.5" x 1.1" (113 x 89 x 28mm)
Power Consumption: Up to 6W
Operating Temperature: -13°F to 149°F (-25°C to 65°C)
Weight: 142g without packaging and cables
Operating System: MikroTik SwOS
Technical Data Sheets and User Manuals: RB260GS Data Sheet
- Device Features
- Managed, PoE Powered
- Device Type
- Network Switch
- SFP Ports
- 1, 1
- Yes, 1G SFP
- Ethernet Ports
- 5, 5
