MikroTik RouterBOARD Chateau LTE12

RBD53G-5HacD2HnD-TC&EG12-EA
Last items in stock
$365.00
Tax included

RBD53G-5HacD2HnD-TC&EG12-EA: MikroTik RouterBOARD Chateau LTE12

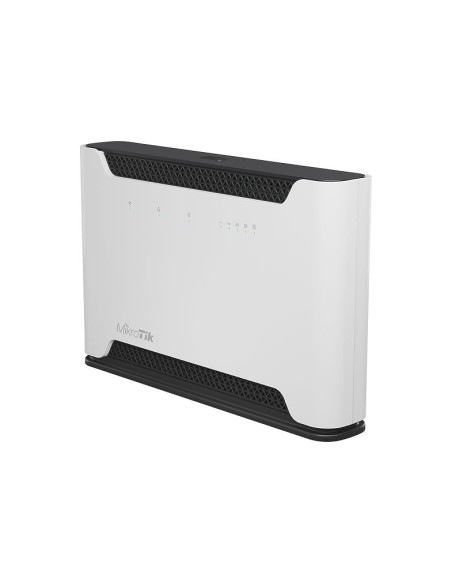

Let’s face it – most of the standard-issue access points can’t really satisfy the extremely diverse client base – they either lack features, users want more speed and higher gain, the price is too high or they look weird. We decided to take all the aspects that are important for most home users and create a single device that will make them happy – this is the MikroTik Chateau.

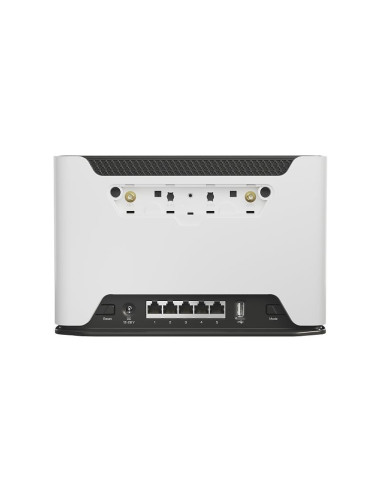

It is a high-speed, dual-band home access point with CAT12 LTE – for really fast Internet anywhere, anytime. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full-size USB port.

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality video.

Reach speeds of up to 600 Mbps with carrier aggregation, as CAT12 allows devices to use three bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. Chateau LTE12 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.

Quantity Price You Save
5 $344.93 Up to $100.38
9 $326.68 Up to $344.93
16 $315.73 Up to $788.40
20 $310.25 Up to $1,095.00

RBD53G-5HacD2HnD-TC&EG12-EA: MikroTik RouterBOARD Chateau LTE12

Details
Product code RBD53G-5HacD2HnD-TC&EG12-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 240 x 156 x 44 mm
License level 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature

-40°C to 70°C

Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 23 W
Max power consumption without attachments 17 W

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) / 3 (1800MHz)
LTE Category 12 (600Mbps Downlink, 150Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)

Wireless

Details
AC speed AC1200
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5

Device Type
Access Point, Router
Antenna Gain (dBi)
2
Wireless System
2.4GHz, 5GHz, LTE Mobile
Ethernet Ports
5
