MikroTik RouterBOARD netPower 16P 16-Port RJ45 2-Port SFP Outdoor Gigabit Router
CRS318-16P-2S+OUT - MikroTik RouterBOARD netPower 16P

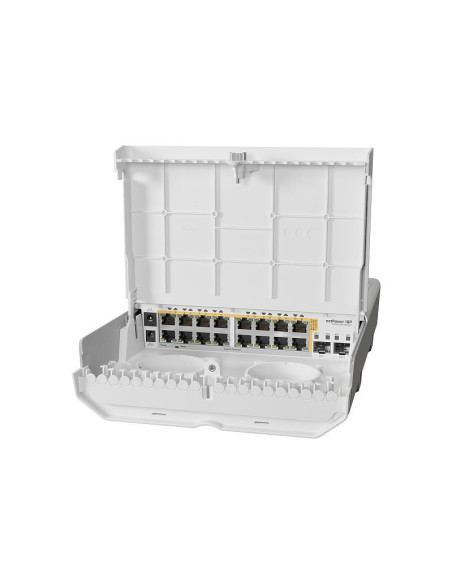

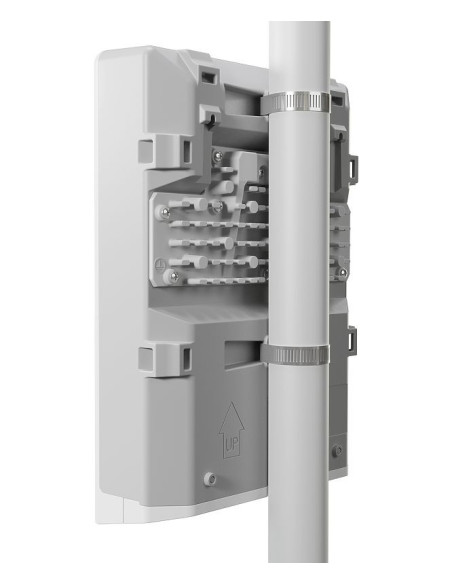

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out (active and passive options) and two SFP+ ports for 10G fiber uplinks.Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
* Power supply is NOT included with the product.
Power Supply Options
Specifications
Details | |
---|---|
Product code | CRS318-16P-2S+OUT |
Architecture | ARM 32bit |
CPU | 98DX226S |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
Dimensions | 303 x 212 x 78 mm |
License level | 5 |
Operating System | RouterOS/SwitchOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack) |
DC jack input Voltage | 18-57 V |
Max power consumption | 316 W |
Max power consumption without attachments | 16 W |
PoE-out
Details | |
---|---|
PoE-out ports | Ether1-Ether16 |
PoE out | 802.3af/at and passive POE |
Max out per port output (input < 30 V) | 1.1 A |
Max out per port output (input > 30 V) | 0.6 A |
Max total out (A) | 2.8A (24V) & 1.4A (48V-57V) x2 A A |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 16 |
Number of 1G Ethernet ports with PoE-out | 16 |
Fiber
Details | |
---|---|
SFP+ ports | 2 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE/RED, EAC, ROHS |
- Device Features
- Outdoor
- POE Ports
- 4
- SFP Ports
- 1
- SFP
- Yes, 1G SFP
- Ethernet Ports
- 16
