HBFBZ10I-6412-T
In Stock
$485.06
Tax included

Jetway HBFBZ10I-6412-T Intel Elkhart Lake 4x2.5GbE LAN and 1x serial

Features

  • Intel® Elkhart Lake SoC Processor
  • 1 * DDR4 3200MHz SODIMM up to 16GB
  • 4 * 2.5GbE
  • Support TPM2.0
  • 2 * USB , 1* HDMI, 1 * COM (RJ45 type)
  • 1 * M.2-2242, 1 * M.2-2230, 1 * M.2-3042
  • 12V DC-in

Related Products & Accessories



Jetway HBFBZ10I-6412-T Intel Elkhart Lake 4x2.5GbE LAN and 1x serial port

This is a perfect router than can run pfSense and similar OS without a blink ! Utilize the potential of high speed lan ports.

Specifications of HBFBZ10I-6412-T

 CPU/Chipset

– Intel® Elkhart Lake SoC Processor (J6412)

 BIOS

 – AMI Flash ROM

 Memory

 – 1* DDR4 3200MHz SO-DIMM up to 16GB

 Network

 – 4* Intel i255V 2.5GbE

 Graphics

 – Intel® HD Graphics, shared memory
– 1* HDMI 2.0 (Max Resolution: 4096×2160@60Hz)

 Storage

 – 1* M.2 M-key (2242, PCIe Gen.3 x2/SATA interface) support NVME, (co-layout M.2 B-key)

 Expansion slot

 – 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)
– 1* M.2 B-key (3042/3052, USB3.1 interface) co-layout M.2 M-key
(If you use M.2 B-key type-3042/3052 card, M.2 M-key type-2242 is not available; vice versa)

 Rear Panel I/O

 – 4* RJ45
– 1* COM (RJ45 type)
– 1* DC-in jack

 Front Panel I/O

 – 1* Power button + Power LED
– 1* Reset
– 1* USB3.1
– 1* USB2.0
– 1* HDMI (Max. 4096×2160@60Hz resolution)

 Internal Connector

 – 32GB eMMC onboard (by model)
– 1* SIM card holder

 Compliance

 – CE, FCC, RoHS, ErP Ready

 Power Source

 – MB : DC12V input
– Adapter : AC 90~240V input / DC12V-3.3A-40W output

 Compliance

 – CE, FCC, LVD, RoHS, ErP Ready

 Temperature

 – Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD)
– Storage Temperature: -20 ~ 80° C
– Humidity: Between 40% and 60%, non-condensing

 Dimensions

 – System: 125 (W) x 109 (D) x 39.5 (H) mm

 OS Support

 – Windows 10, Windows 11, Linux

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Standard Accessories

  Part Number

  Description

 HBFBZ10 series

 Intel Elkhart Lake SoC Processor J6412 CPU

 LCSCHBJC3XX-F

 Barebone Screw Pack

 L01AS050-F

 Adapter DC12V_40W

 Change according to shipping area

 Power cord

 HCSFBMWM01B-F

 FB Wall mount

I/O Diagram

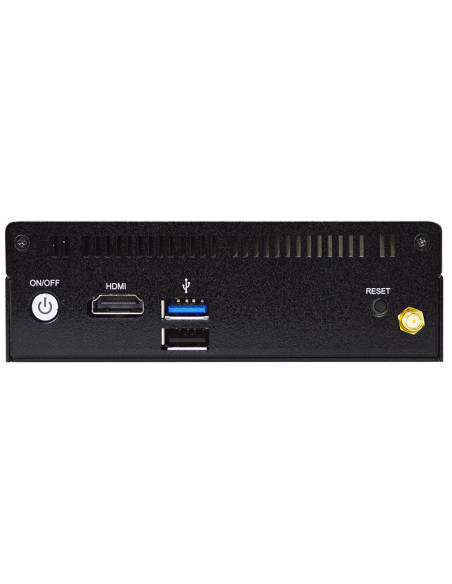

Front

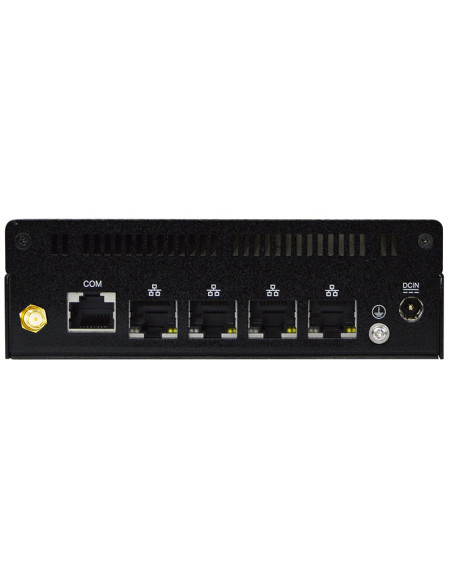

Rear

Mechanical

Device Features
HDMI Output
HD Outputs
1
Ethernet Ports
4
4710255998873
HBFBZ10I-6412-T
