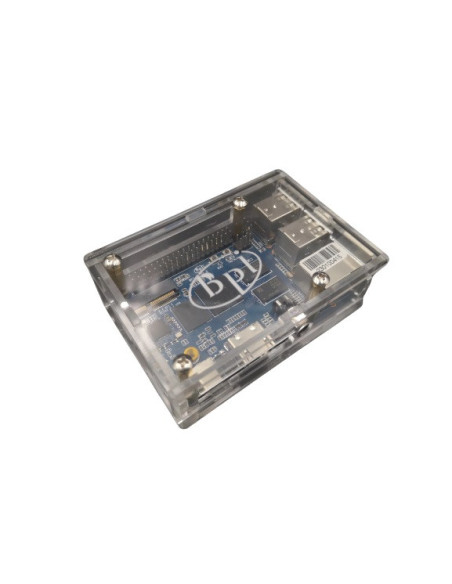

Banana Pi M5 Single Board Computer - 4GB RAM - 16GB eMMC

HardWare Specification of Banana pi BPI-M5

CPU

Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)

GPU

Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)

Memory

4 GB LPDDR4

Storage

MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB

Network

10/100/1000 Mbit/s Ethernet, Optional WiFi USB dongle

Video Output(s)

1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)

Audio Output(s)

3.5mm jack and 1 x HDMI digital output

USB ports

USB 3.0 PORT (x4)

GPIO

40 Pin Header: GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM

Switches

Reset, Power and U-boot

LED

Power Status and Activity status

Power Source

5 volt @3A via Micro USB (TYPE C)

Size & Weight

92x60mm, 48g

OS

Android and Linux
